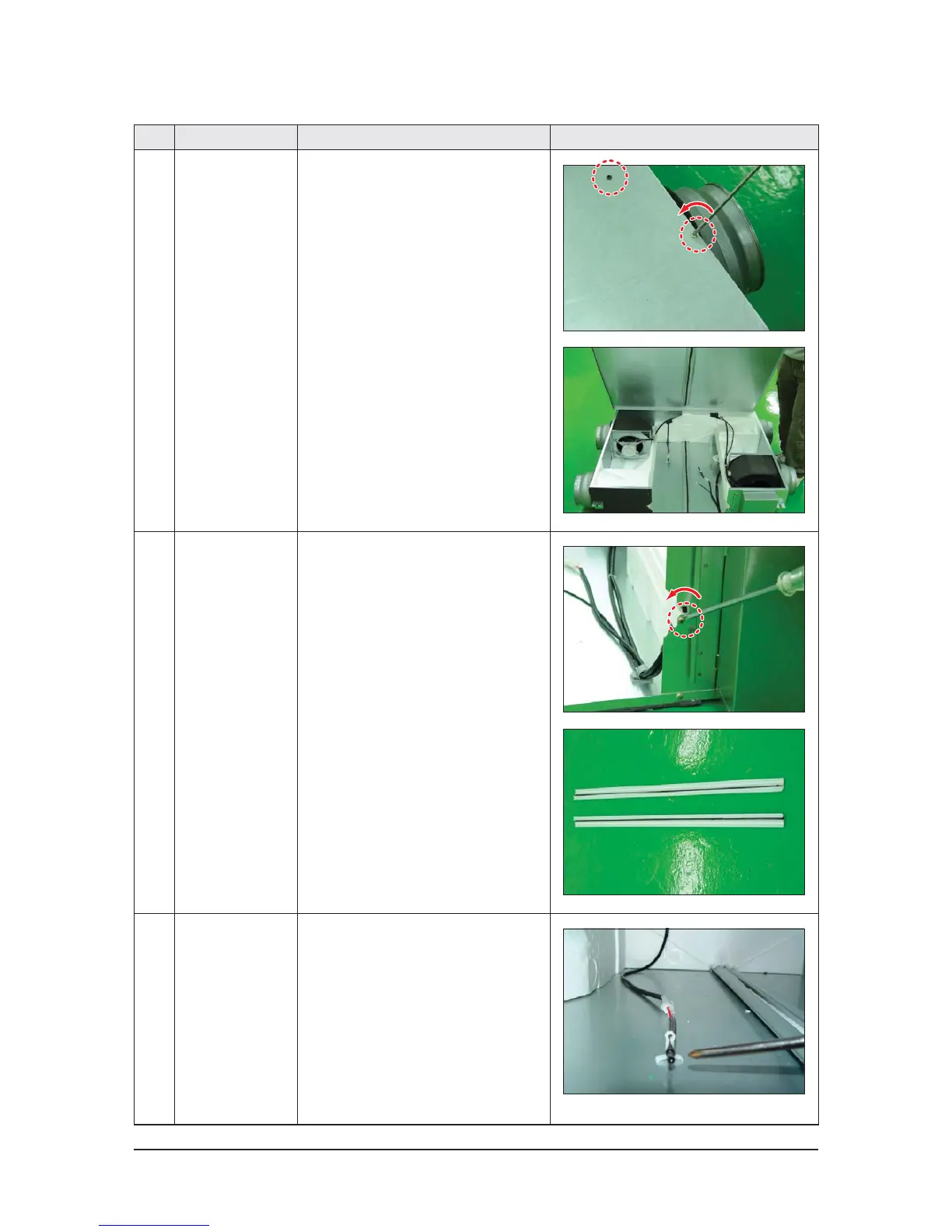

No Parts Procedure Remark
4 Cabinet Top 1) Loosen 12 bolts located at the top of the
product. (Use +Screw Driver.)
2) Locate the EPS structure, Fan, Motor and
Wire.
5 Guide Element 1) Separate the guides fixing Element.
(Use +Screw Driver.) 1 Guide is located
at each left and right end of the product.
Each guide is attached to the product with
1 bolt.
6 Thermistor
Ass'y Wire
1) Separate the Temperature Sensor from
the fixed part. The Temperature Sensor is
attached with wire clips.
2) The input and output channel has 1
Temperature Sensor each.
To Next Page
