4-18 Samsung Electronics

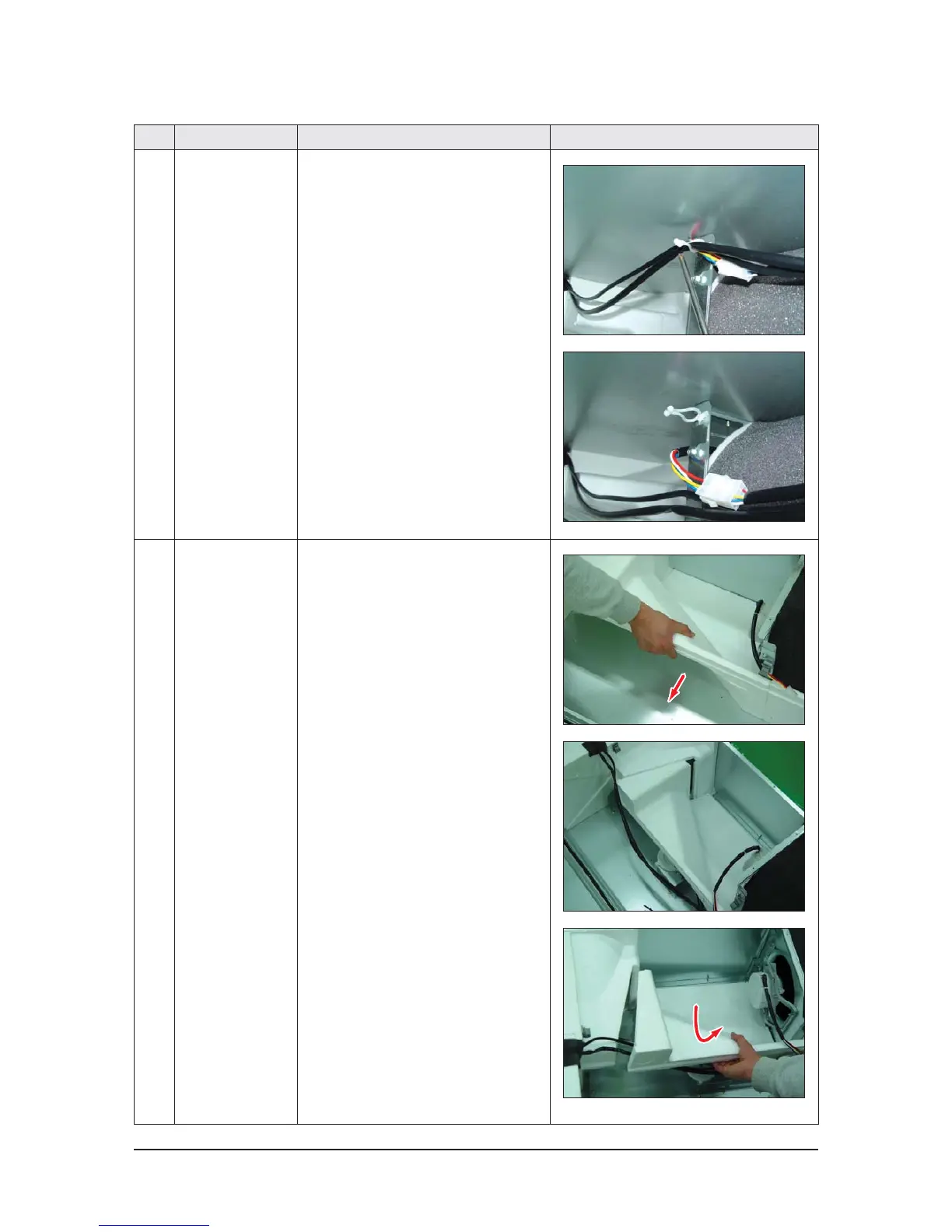

No Parts Procedure Remark
7 Ass’y Fan Parts 1) Separate motor connectors.
2) Loosen the holder fixing the motor wire
by twisting it slightly.
3) 2 Motors are placed within the product for
supply air and exhaust air.
8 Cushion Mid 1) Slide the EPS structure to the side and
detach it, as seen in the picture besides.
2) Slide and pull the EPS structure to separate
it, as seen in the picture besides.
To Next Page
