Samsung HT-D350 - Front Panel; Rear Panel

English 9
01 Getting Started

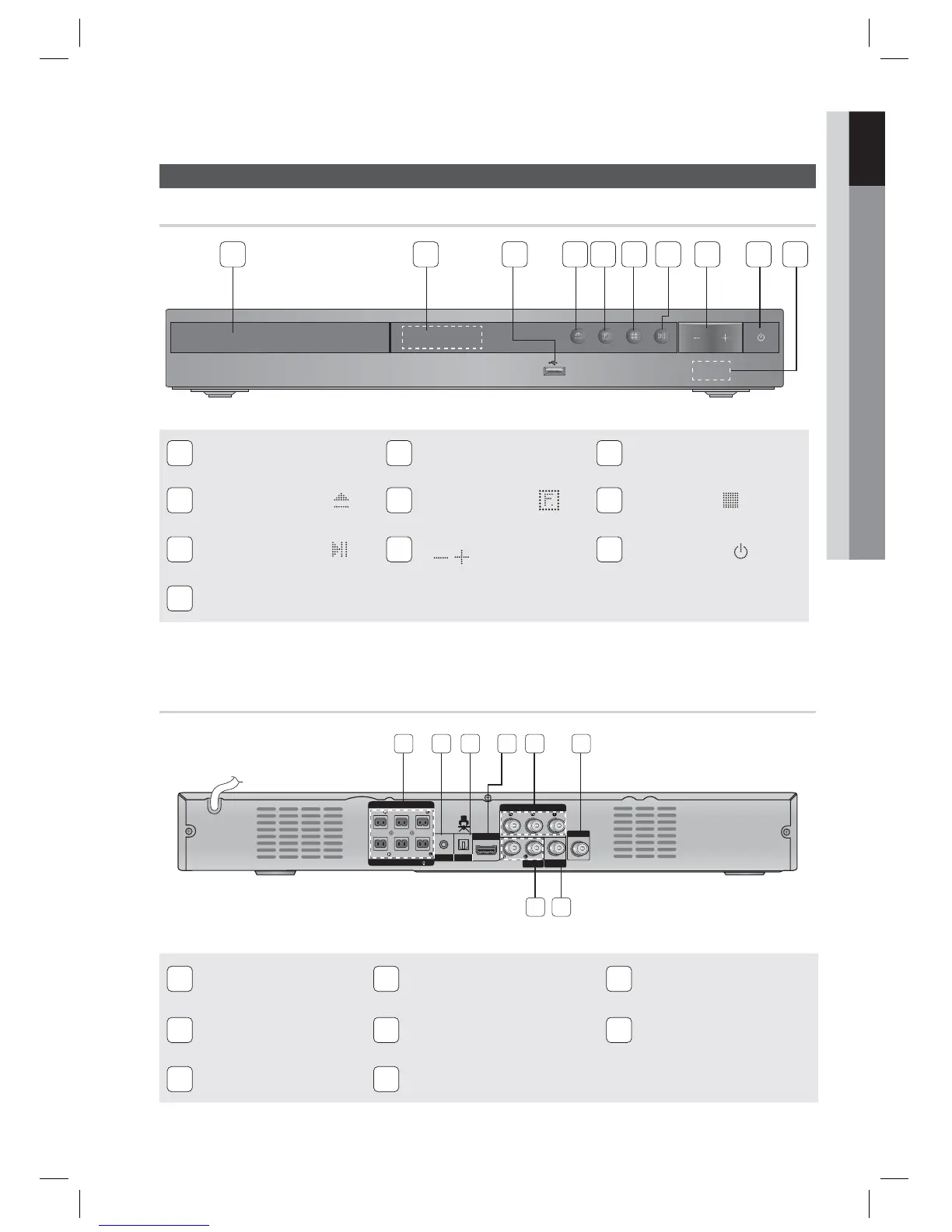

Description
Front Panel
Rear Panel
SURROUND SURROUND
SUBWOOFER
CENTER FRONTFRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
FM ANT
VIDEO OUT
AUX IN
COMPONENT OUT
HDMI OUT
DIGITAL
AUDIO IN
ONLY
FOR SERVICE
1 2
1
SPEAKER OUTPUT
CONNECTORS
2
ONLY FOR SERVICE
3
EXTERNAL DIGITAL OPTICAL IN
JACK (DIGITAL AUDIO IN)
4
HDMI OUT JACK
5
COMPONENT VIDEO OUTPUT
JACKS
6
FM ANTENNA JACK
7
VIDEO OUT JACK
8
AUX IN JACKS
3 54 6
8 7
5V 500mA
1 2 86 7 94 53
1
DISC TRAY
2
DISPLAY
3
USB PORT
4
OPEN/CLOSE BUTTON ( )
5
FUNCTION BUTTON ( )
6
STOP BUTTON ( )
7
PLAY/PAUSE BUTTON ( )
8
VOLUME CONTROL BUTTON
( , )
9
POWER BUTTON ( )
10
REMOTE CONTROL SENSOR
10
