Samsung HT-D550 - Installing the Speakers on the Tallboy Stand; Speaker Components

16 English
Connections
FRONT
(L) (R)
STAND
STAND BASE
SPEAKER CABLE
SURROUND
(L) (R)
SCREW (5×15): 4EA
SCREW (4×20): 16EA

FRONT/SURROUND
SPEAKERS
CENTER SPEAKER
SUBWOOFER
CENTER
SUBWOOFER

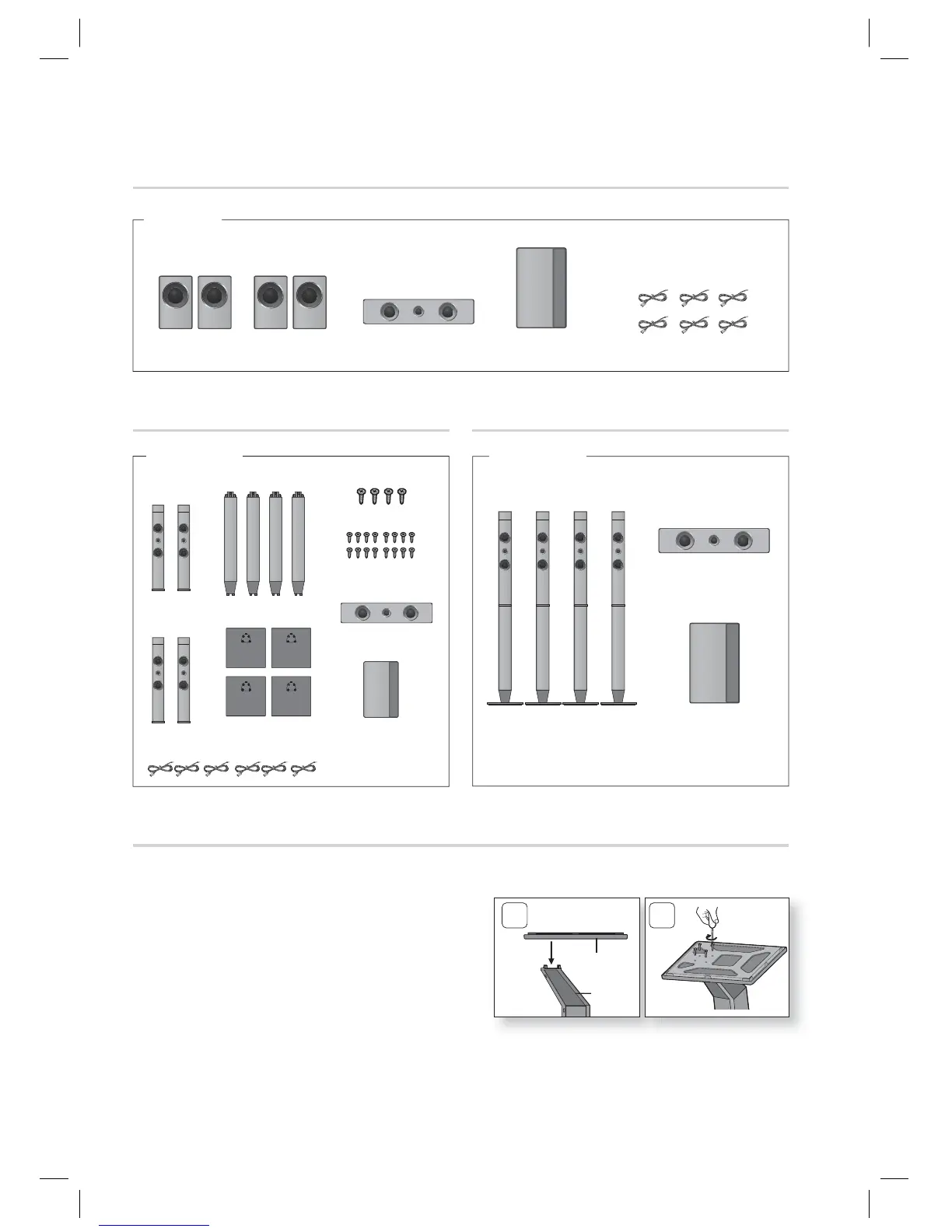

Speaker Components Assembled Speakers
Installing the Speakers on the Tallboy Stand
* HT-D555 only - Front/Surround Speakers
Turn the Stand Base upside-down and connect it to
the Stand.
Insert small screws (4*20, For connecting Stand & Stand
Base) clockwise into the four holes marked using a
screwdriver as shown in the illustration.
CAUTION : When you use a torque screwdriver, be
careful not to put excessive force. Otherwise, it runs
idle or can be damaged. (torque screwdriver- below
15 kg.f.cm)
1.
2.
!
1 2
Stand
Stand
Base
HT-D555
HT-D555
SURROUND
CENTER
SUBWOOFER
HT-D550
Speaker Components
(L) (R)
FRONT
(L) (R)
SPEAKER CABLE
