Samsung HT-D550 - Connecting the Optional Wireless Receiver Module

18 English
Connections
Connecting the Optional Wireless Receiver Module
To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX
card from your Samsung retailer.
● This product should be connected with the SWA-5000 only.
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the red wire into the red
terminal (+), and then release the tab.
Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.
With the product turned off, insert the TX card into the
TX Card Connection (WIRELESS) on the back of the product.
Hold the TX card so that the label "WIRELESS" faces upward and insert
the card into the port.
The TX card enables communication between the product and the
wireless receiver module.

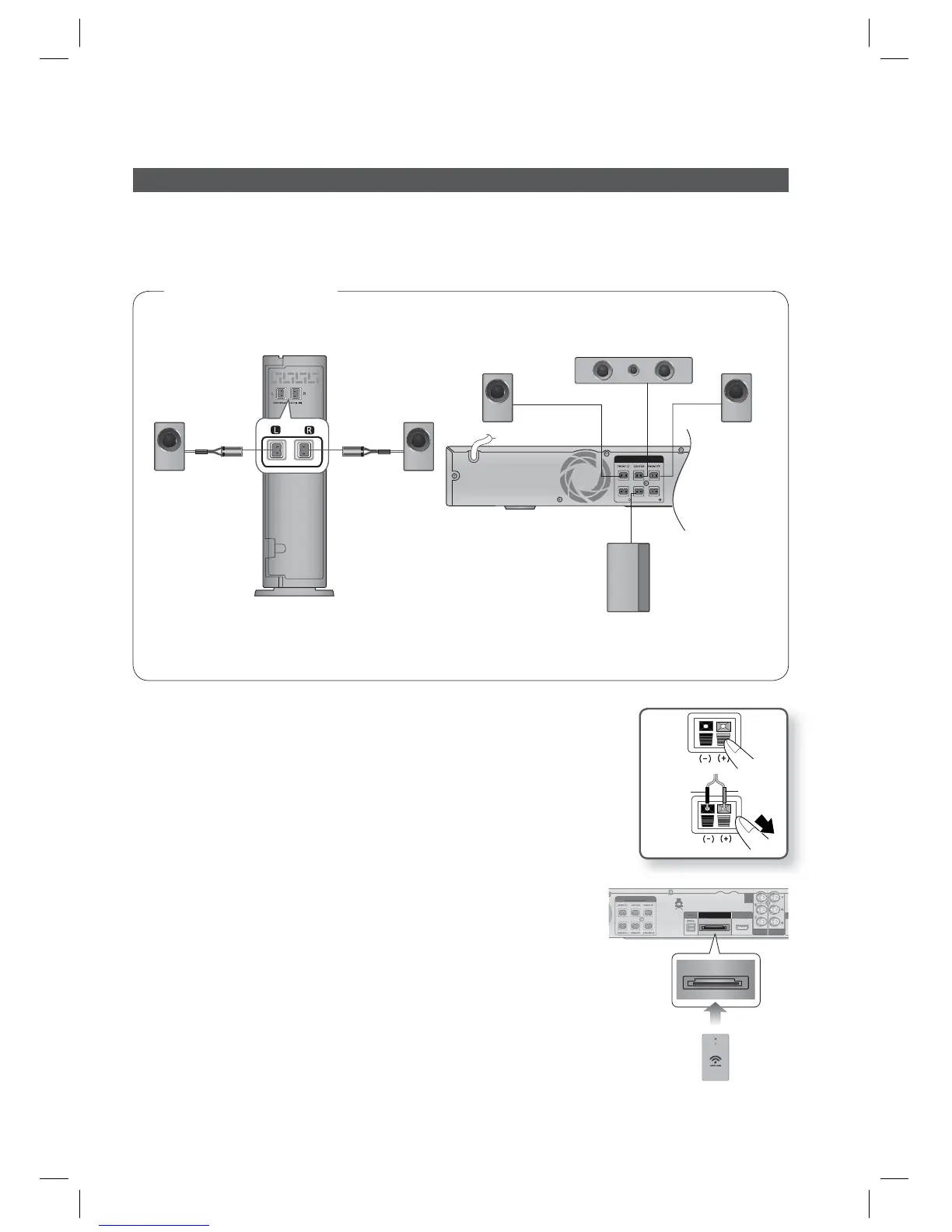

Connect the left and right rear speakers to the wireless Receiver module.
Plug the power cord of the wireless Receiver module in the wall outlet .
1.
2.
3.
4.
•
•
5.
6.
Black
Red
F
(Only
DIGITAL
AUDIO IN
WIRELESS
OPTICAL
SURROUND SUBWOOFER SURROUND
HDMI OUT
SPEAKERS OUT
AUX
IN 2
COMPONENT
OUT
VIDEO
OUT
(Onl
DIGITAL
AUDIO IN
HDMI OUT
SPEAKERS OUT
AUX
IN 2
COMPONENT
OUT
VIDEO
OUT
WIRELESS
TX card
In case of HT-D550
A
O
SURROUND SUBWOOFER SURROUND
SPEAKERS OUT
Front
Speaker (R)
Subwoofer
Center Speaker
Surround
Speaker (R)
Wireless Receiver Module
Surround
Speaker (L)
* Refer to page 16 for the HT-D555 speakers.
Front
Speaker (L)
