01 Getting Started
1
FA NET (Only for Service)
Used for the service repair.
2
SPEAKERS OUTPUT CONNECTORS
Connect the front, center,surround speakers and subwoofer.
3
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
4
AUX IN JACKS
Connect to the 2CH Analog output of an external device (such as a VCR).
5
FM ANTENNA JACK
Connect the FM antenna.
6
HDMI OUT JACK
Using an HDMI cable, connect this HDMI output jack to the HDMI input jack
on your TV for the best quality picture.

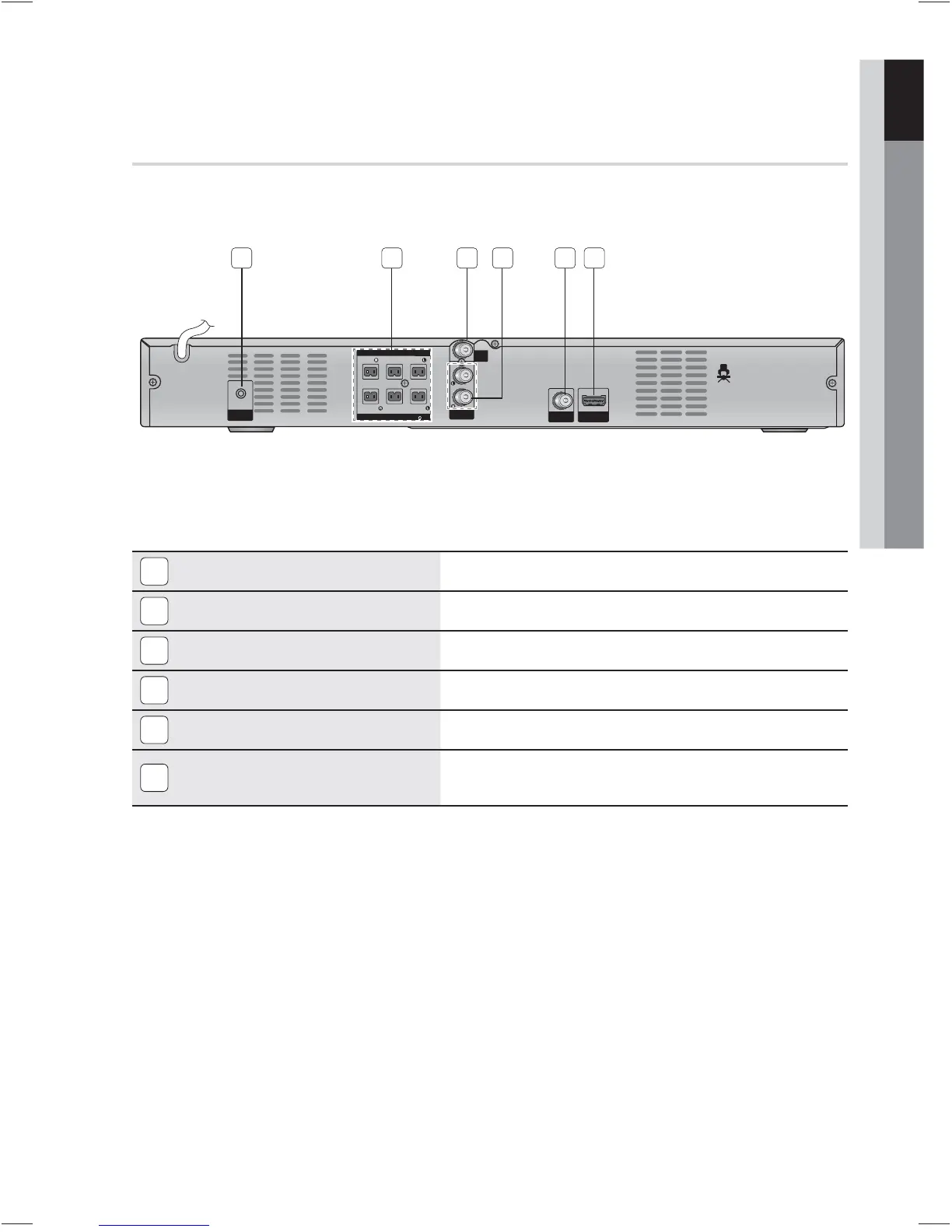

Rear Panel
SURROUND SURROUND
SUBWOOFER
CENTER FRONTFRONT
SPEAKERS OUT
SPEAKER IMPEDANCE : 3
FM ANT
HDMI OUT
VIDEO
OUT
FA NET
(Only For Service)
AUX IN
1 2 3 4 65
