Samsung HT-E4200 - Front Panel; Rear Panel

|
12 English
Getting Started

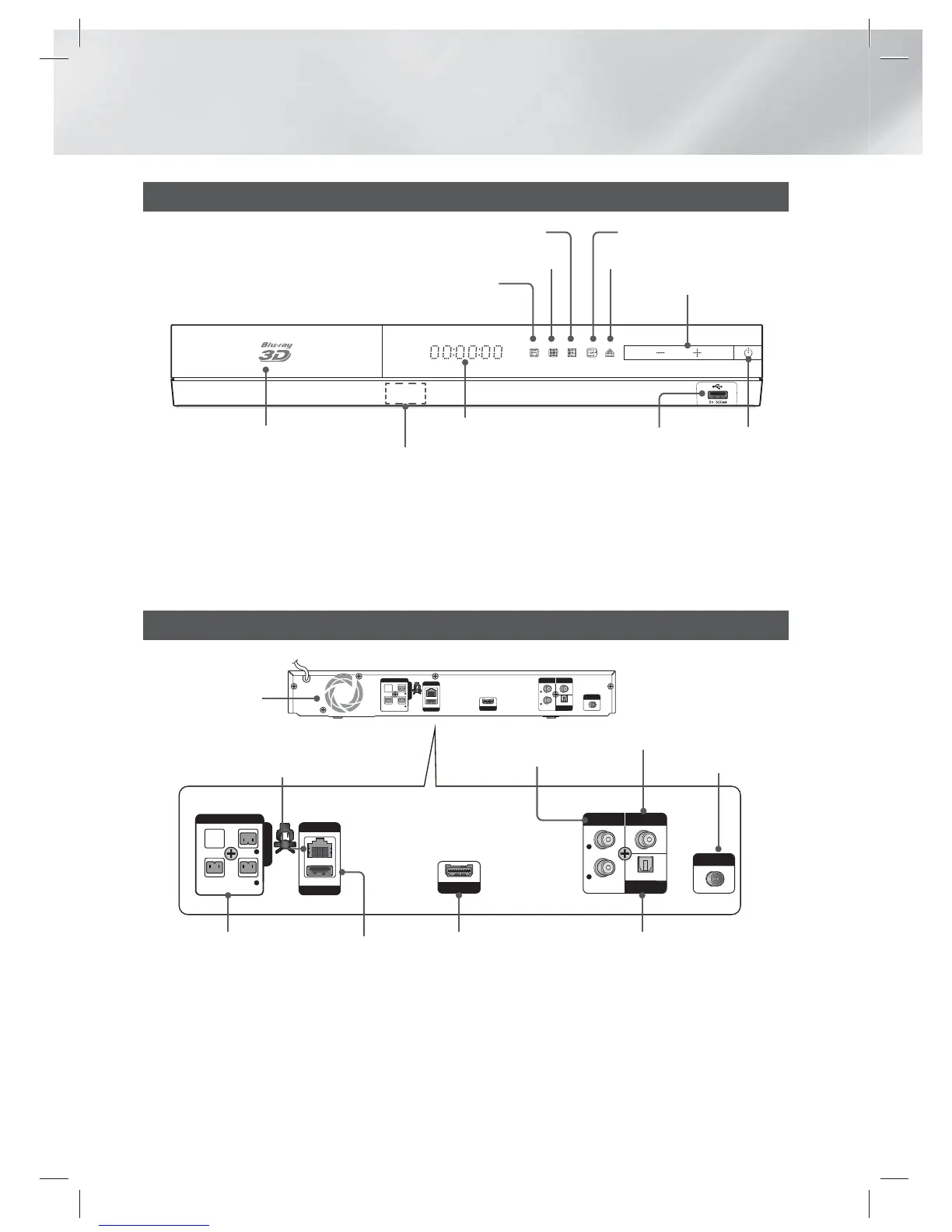

Front Panel
DISPLAY
POWER
DISC TRAY
USB HOST
STOP OPEN/CLOSE
VOLUME CONTROL
PLAY/PAUSE ENTER
FUNCTION
REMOTE CONTROL
SENSOR
| NOTE |

To upgrade the product's software through the USB Host jack, you must use a USB memory stick.

When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the
6
button on the product or
the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the
E
button.
Rear Panel
| NOTE |

Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct
the cooling fan or ventilation holes.
5V 350mA
LAN
WIRELESS LAN
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
FM ANT
L
R
IMPEDANCE : 3
SPEAKERS OUT
FRONT L
SUBWOOFER
FRONT
R
5V 350mA
LAN
WIRELESS LAN
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
FM ANT
L
R
IMPEDANCE : 3
SPEAKERS OUT
FRONT L
SUBWOOFER
FRONT
R
WIRELESS LAN
LAN TERMINAL
EXTERNAL DIGITAL
AUDIO IN (OPTICAL)
HDMI OUT
FM ANTENNA
SPEAKER OUTPUT
CONNECTORS
VIDEO OUT
AUX IN
COOLING FAN
