Samsung HT-E4200 - Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit; Connecting the FM Antenna; Connecting to an Ipod;Iphone

English 19
|
03 Connections

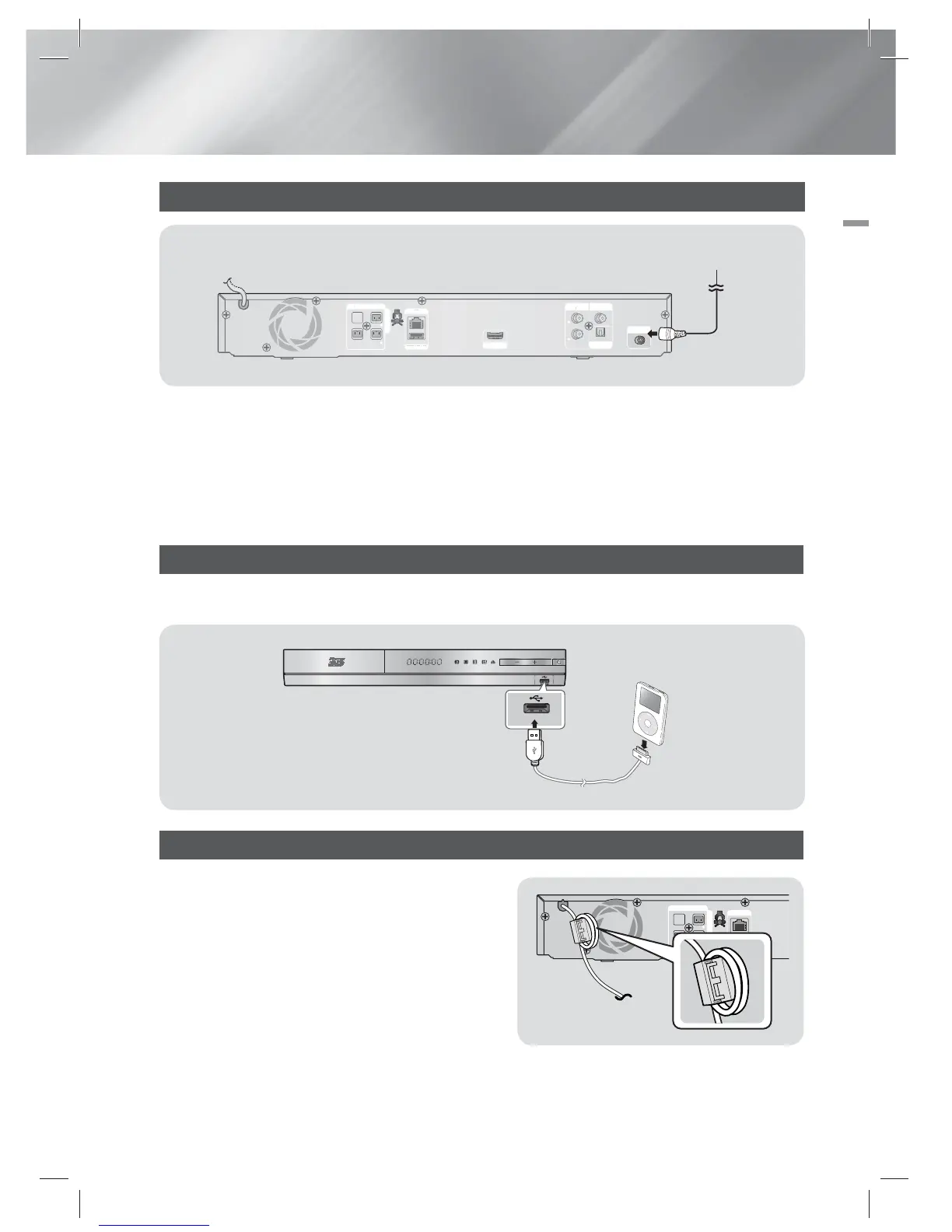

Connecting the FM Antenna
5V 350mA
LAN
WIRELESS LAN
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
L
R
IMPEDANCE : 3
SPEAKERS OUT
FRONT L
SUBWOOFER
FRONT
R
5V 350mA
LAN
WIRELESS LAN
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
L
R
IMPEDANCE : 3

SPEAKERS OUT
FRONT
L
SUBWOOFER
FRONT
R
FM ANT
FM Antenna (supplied)
1 . Connect the FM antenna supplied to the FM ANTENNA Jack.
2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
|
NOTE |

This product does not receive AM broadcasts.
Connecting to an iPod/iPhone
Connect an iPod/iPhone using the USB cable to the front USB port.
5V 500mA
Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit
If you attach a Toroidal ferrite core to the power cord of
the main unit, it will help to prevent RF interference from
radio signals.
1. Pull the fixing tab of the Toroidal ferrite core to open
it.
2. Make a loop twice in the main unit power cord.
3. Attach the Toroidal ferrite core to the main unit power
cord as the figure shows and press it until it clicks.
5V 350mA
LAN
WIRELESS LAN
IMPEDANCE : 3
SPEAKERS OUT
FRONT L
SUBWOOFER
FRONT
R
