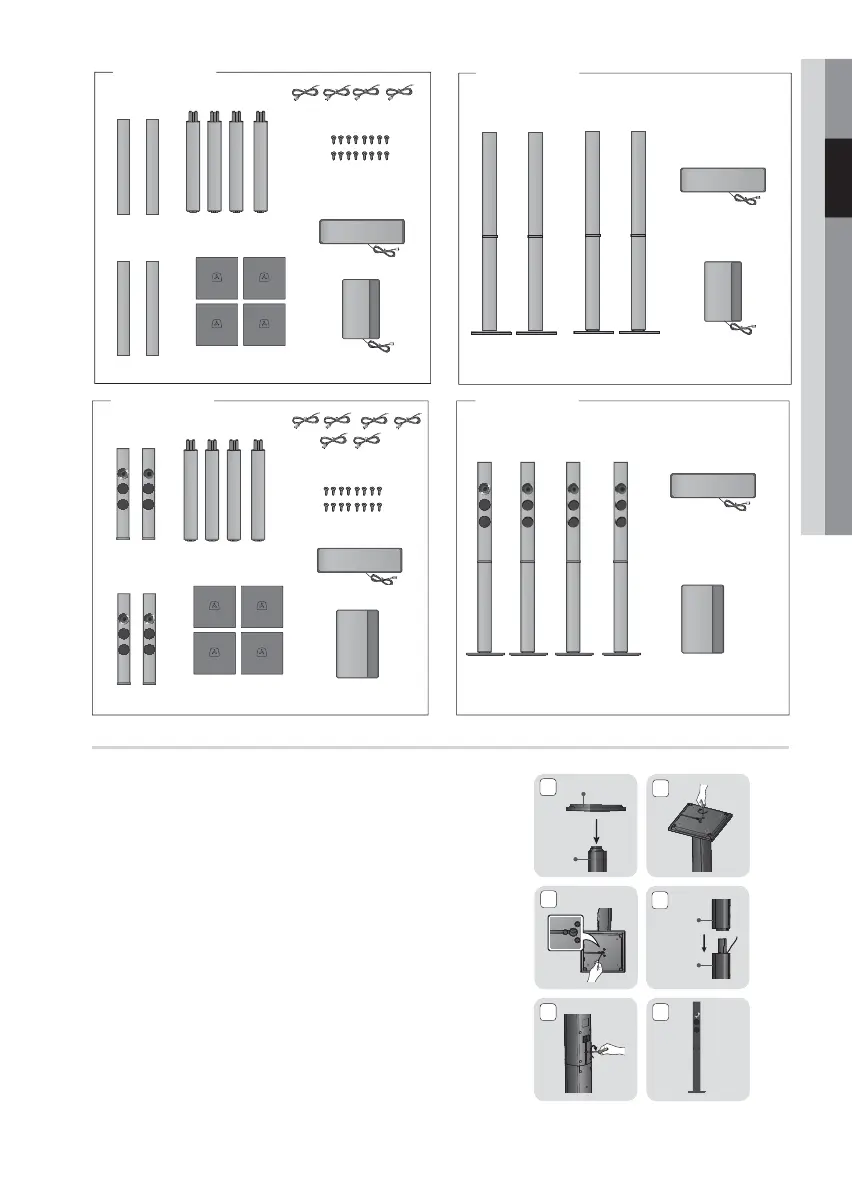

02 Connections
Installing the Speakers on the Tallboy Stand
* HT-E453K only - Front Speakers
* HT-E445K/E456K only - Front/Surround Speakers
1. Turn the Stand Base upside-down and connect it to the Stand.
2. Insert three screws (5*15, For connecting Stand & Stand Base)
clockwise into the three holes marked using a screwdriver as shown in
the illustration.
! CAUTION : When you use a torque screwdriver, be careful not to
put excessive force. Otherwise, it runs idle or can be damaged.
(torque screwdriver- below 15 kg.f.cm)
3. Straighten a supplied speaker wire and put in the hole on the center of
Stand Base.
4. Connect the upper Speaker to the assembled Stand.
5. Insert another large screw (5*15, For connecting Speaker & Stand)
clockwise into the hole on the rear of the speaker using a
screwdriver.
6. This is the appearance after the speaker is installed. Follow this
steps to install other speaker.
5
3
2
6
1
4
Stand Base
Stand
Speaker
Stand
FRONT
(L) (R)
STAND
STAND BASE
SPEAKER CABLE
SURROUND
(L) (R)

HT-E456K
HT-E456K
FRONT/SURROUND SPEAKER
CENTER SPEAKER
SUBWOOFER
CENTER
SUBWOOFER
SCREW (5×15): 16EA

HT-E445K
CENTER SPEAKER
SURROUND
SPEAKER
SUBWOOFER
FRONT
SPEAKER
FRONT
(L) (R)
STAND
STAND BASE
SPEAKER CABLE
SURROUND
(L) (R)
HT-E445K
CENTER
SUBWOOFER
SCREW (5×15): 16EA
