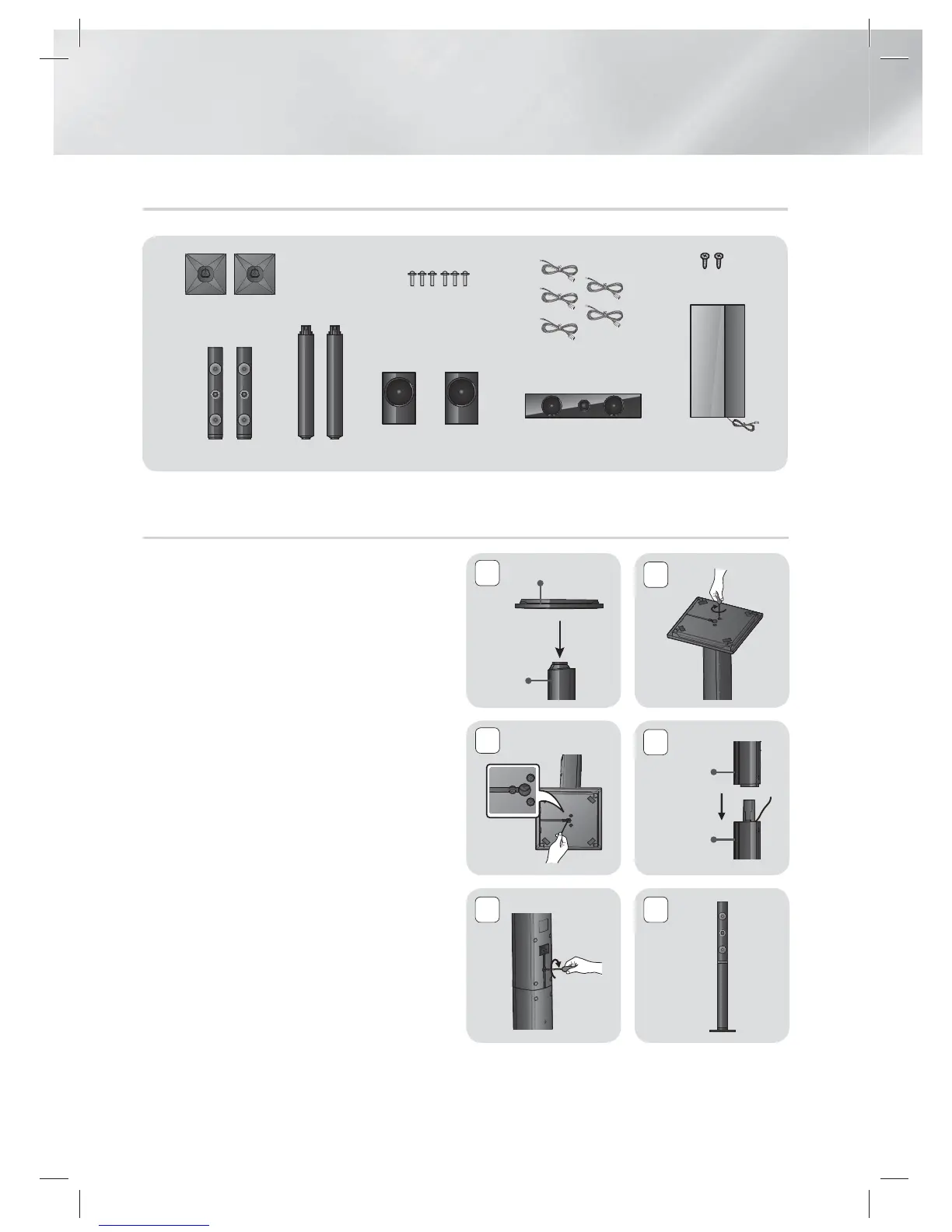

Speaker Components
Installing the Speakers on the Tallboy Stand
1. Turn the Stand Base upside-down and
connect it to the Stand.
2. Use the driver to combine the screws (5x20)
on the 3 marked holes.
3. Straighten a supplied speaker wire and put in
the hole on the center of Stand Base.
4. Connect the upper Speaker to the assembled
Stand.
5. Insert a screw (5x15) clockwise into the hole
on the rear of the speaker using a screwdriver.
And then connect a speaker cable.
6. This is the appearance after the speaker is
installed.
Follow this steps to install other speaker.
SUBWOOFER
(L) (R)
SURROUND
CENTER
SPEAKER CABLE
(L) (R)
FRONT
STAND
STAND BASE
SCREW (5X15): 2EA
SCREW (5X20): 6EA
1
Stand Base
Stand
3
4
Speaker
Stand
2
5 6
