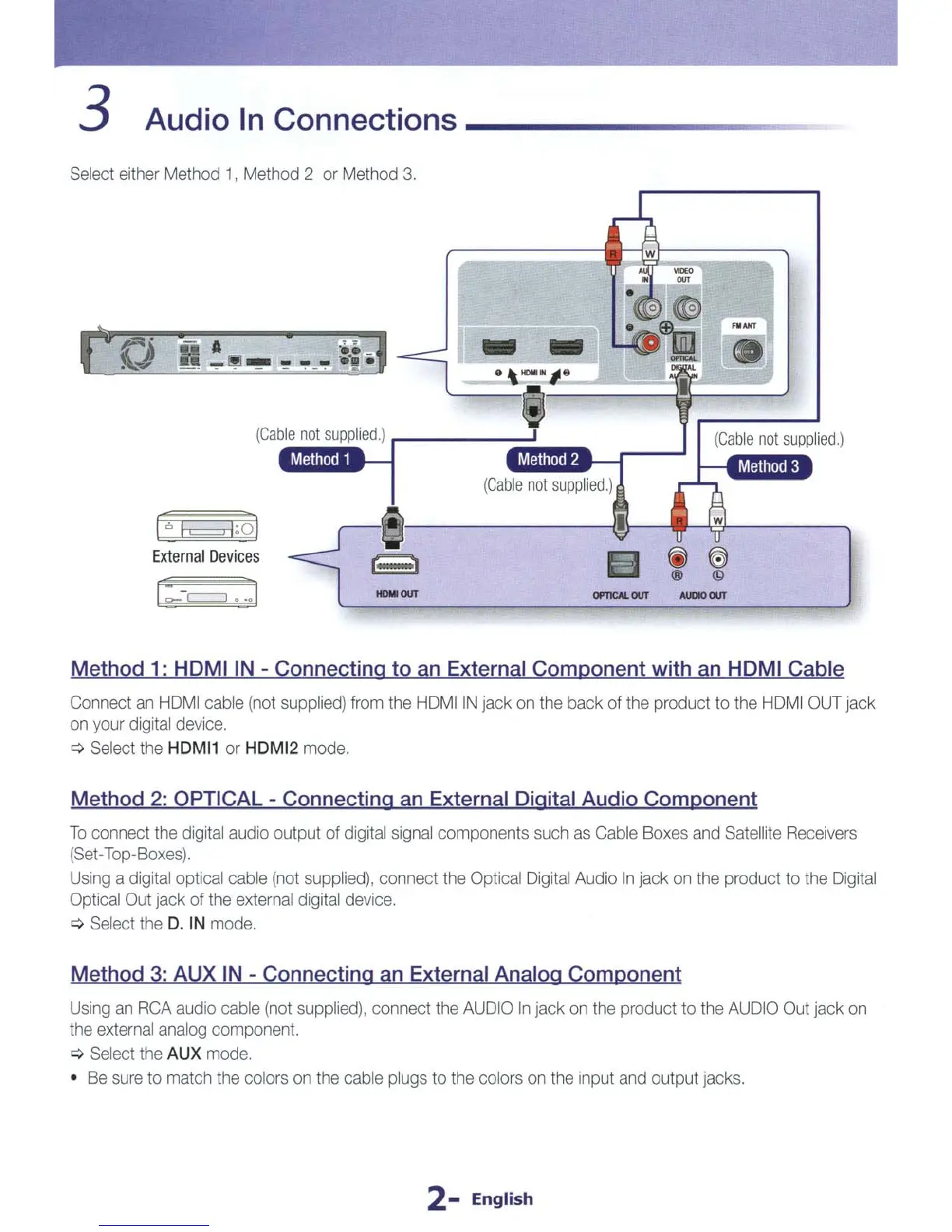

3 Audio In Connections --- -- --=:::J -== =-
Select either Method 1, Method 2 or Method 3.
F11 AHT
External Devic es
OP'I1CAL OUT
Method 1: HDMIIN - Connecting to an External Component with an HDMI Cable
Connect an HDMI cable (not supplied) from the HDMIIN jack on the back of the product to the HDMI OUT jack
on your digital device.
q Select the HDMI1 or HDMI2 mode.
Method 2: OPTICAL- Connecting an External Digital Audio Component
To connect the digital audio output of digital signal components such as Cable Boxes and Satellite Receivers
(Set-Top-Boxes).
Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital
Optical Out jack of the external digital device.
q Select the D. IN mode.
Method 3: AUXIN- Connecting an External Analog Component
Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUD IO Out jack on
the external analog component.
q Select the AUX mode.
• Be sure to match the colors on the cable plugs to the colors on the input and output jacks.
