Samsung HT-EV100 - External Component Connectivity; Digital Component Connection; Analog Component Connection

Press AUX on the remote control to select AUX.
•
Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX ➝ FM ➝ MW ➝ LW.
Connect Audio In on the DVD player to Audio Out on the external analog component.
•
Be sure to match connector colors.
1
2
AM
COAXIAL
FM
75
L
R
AUX IN
SPEAKERS (6Ω)
ANTENNA
CENTER
WOOFERFRONT REAR
DIGITAL IN VIDEO OUT
OPTICAL
L
R
16
Example: Analog signal components such as a VCR, Camcorder, and TV.

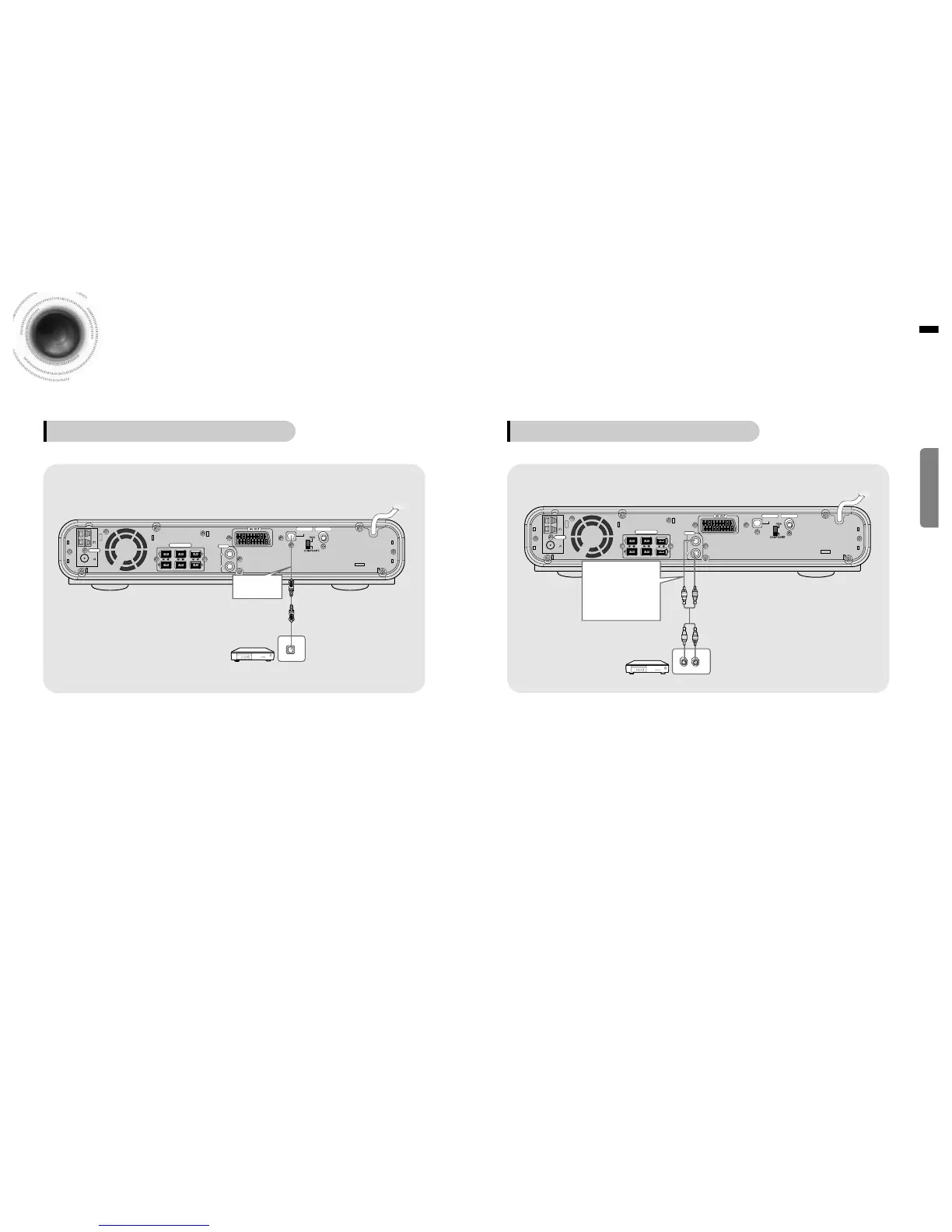

Connecting an External Analog Component
Audio Cable
If the external analog
component has only
one Audio Out, connect
either left or right.
15
CONNECTIONS
Press AUX on the remote control to select ‘DIGITAL IN’.
•
Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝ AUX.
•
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX ➝ FM ➝ MW ➝ LW.
Connecting External Components
Connect the Digital Input (OPTICAL) to the Digital Output on the external
digital component.
1
2
AM
COAXIAL
FM
75
L
R
AUX IN
SPEAKERS (6Ω)
ANTENNA
CENTER
WOOFERFRONT REAR
DIGITAL IN VIDEO OUT
OPTICAL
DIGITAL OUT
Example: Digital signal components such as a DVD or CD Recorder.
Connecting an External Digital Component
Optical Cable
(not included)
