CONNECTIONS
1312
Speaker Installation
Speaker Packages
Please confirm that all the following contents are included in the package.
Center Speaker
Subwoofer Speaker
Speaker Cable (5EA)
Front/Rear Speaker
1 Turn the stand upside down and mount it on the stand
base.
2 Tighten 4(Black) screws on the bottom side of the stand base.
3 Place the stand on the floor and tighten 2(Silver) on the back of
the stand.
4 Mount the speaker on the stand.
5 Tighten 2(Silver) screws on the back of the speaker.
6 This is the successfully assembled speaker.

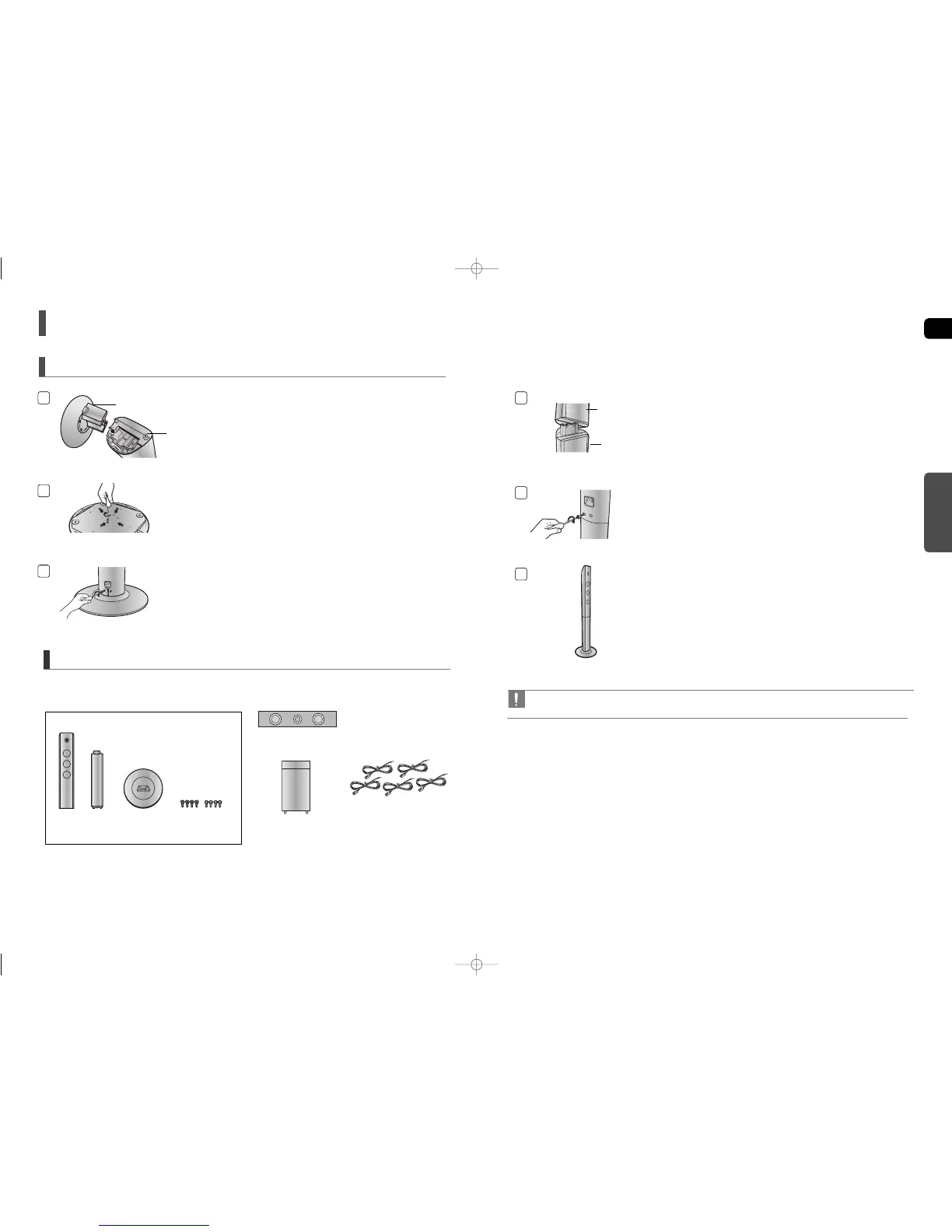

How to Install the Speaker and the Stand
•
Make sure that the speaker is installed on a flat and stable area. Otherwise it may be easily knocked over.
SPEAKER
(4EA)
STAND
(4EA)
Screw (16EA) : BLACK
Screw (16EA) : SILVER
STAND BASE
(4EA)
Front speakers and rear speakers are packaged
separately as shown in the diagram.
STAND
STAND
BASE
SPEAKER
STAND
1 4
5
6
2
3
HT-TX500_GB-(1~45)-1009 10/19/07 3:09 PM Page 12
