System LED
It provides System LED to display various status of the system. Refer to the following for
its meaning.
 IPX-S300B
 IPX-S300B (Dual Power Supply)

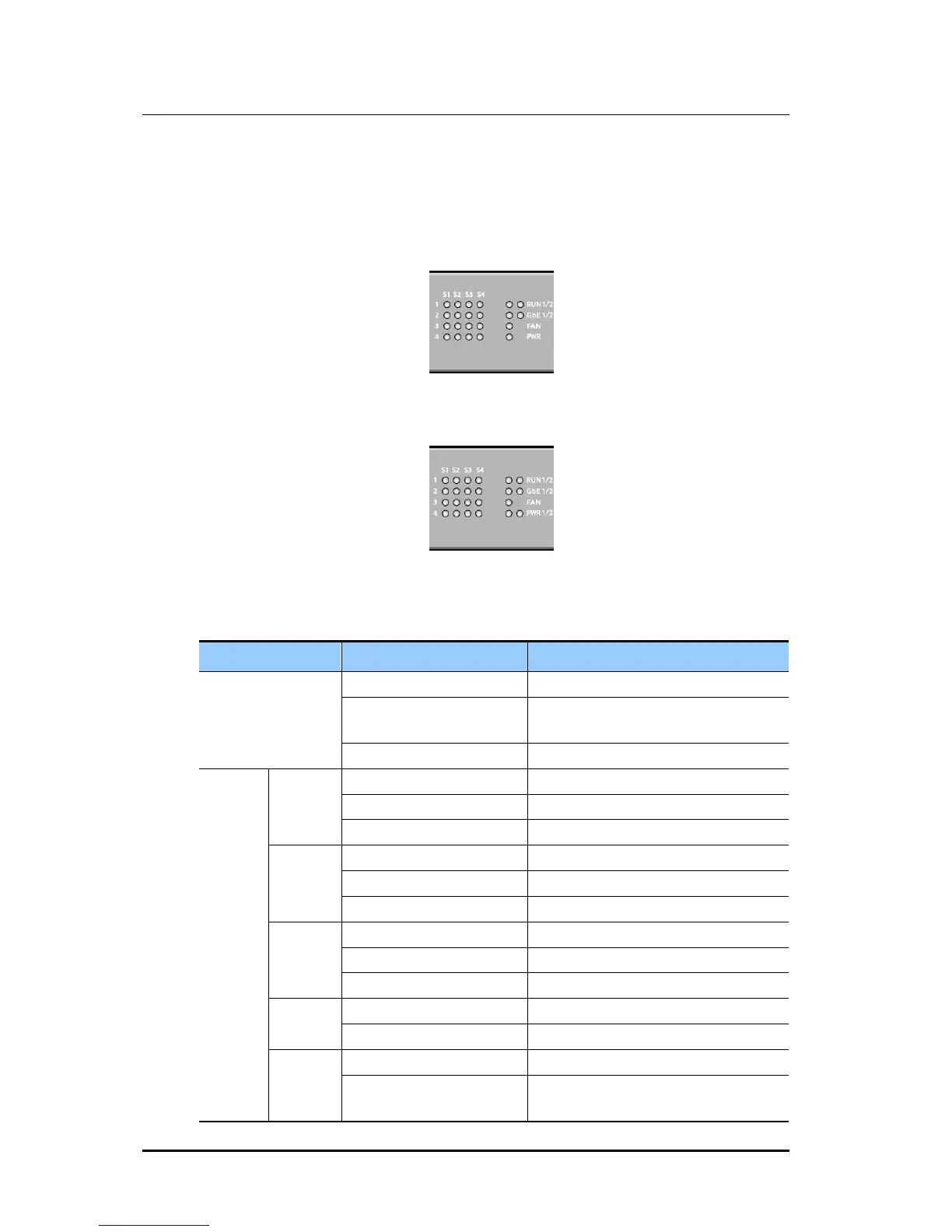

Figure 15. IPX-S300B LED
Table 6. IPX-S300B LED Description
LED
State
Description
Optional module port
Off
Module not mounted or ready to Service
On
Operating (port in use)
Layer2 link status (1PRI, 2PRI, 2BRI)
Blinking
Ringing state (4FXS, 4FXO)
System
RUN1
Blink quickly (50 ms on/off)
Booting, Upgrading, DB Initializing
Blink (250 ms on/off)
All Processors are in normal operation
Blink slowly (1000 ms on/off)
Fault (Upgrading, DB initialization)
RUN2
On
Preparing to boot
Blink quickly
Booting
Blink slowly
Normal Operation after booting
GbE1/2
Off
LAN disconnected
On
LAN connected
Blinking
Transmitting/Receiving Data
FAN
Off
FAN out of order
On
Normal operation
PWR1/2
Off
Power Module is off or out of order
On
Power module is installed and in normal
operation
