3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LCD TV.
WARNING: This LCD TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LCD TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

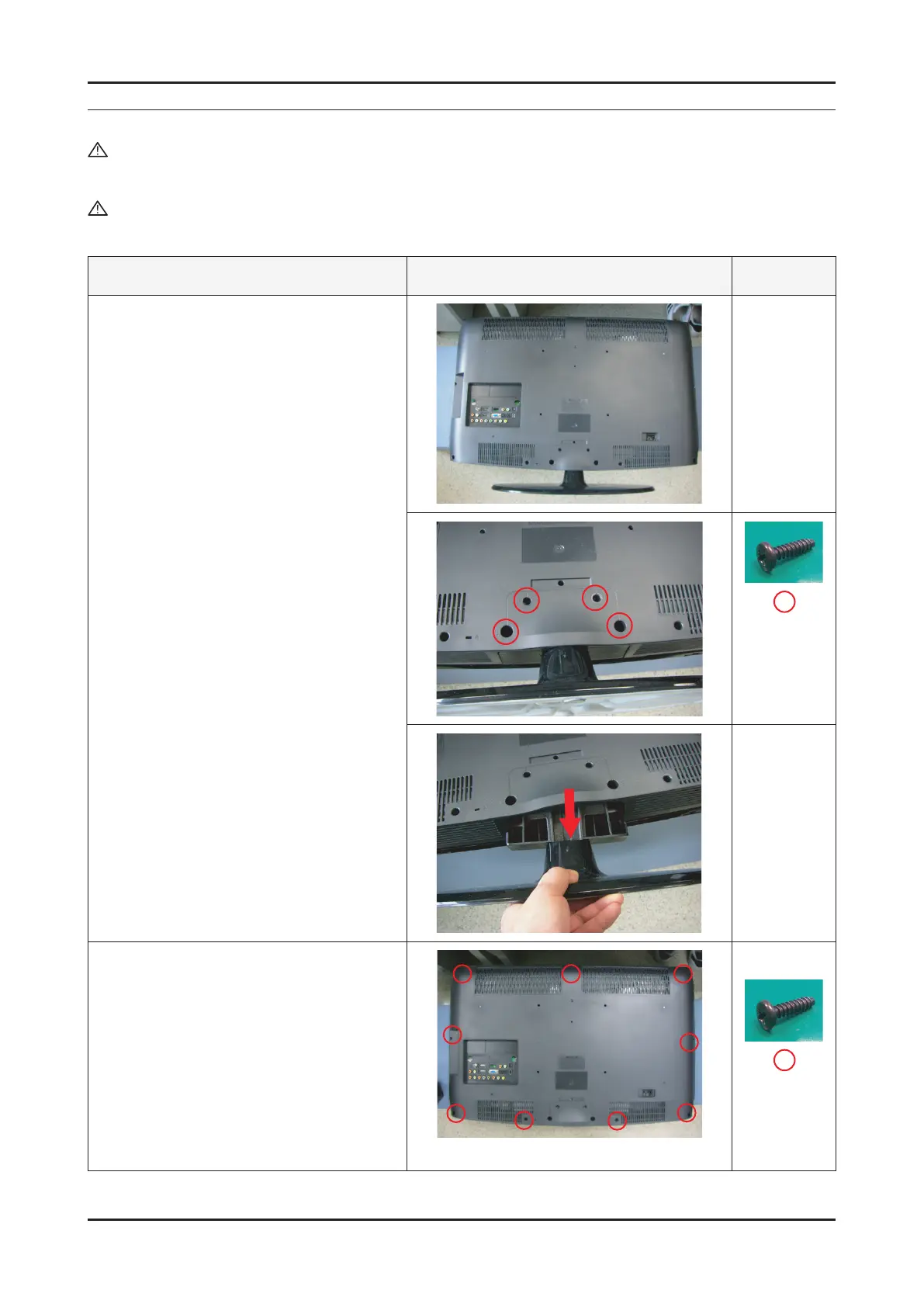

Description Picture Description Screws
1. Place monitor face down on cushioned table.
Remove 4 screws from the stand.
Remove stand.
2. Remove the 11 screws of rear-cover.
Remove the 3 screws of rear-cover.
32”
