Samsung MAX-VB630 - CD Deck Parts List

Samsung Electronics
2-4

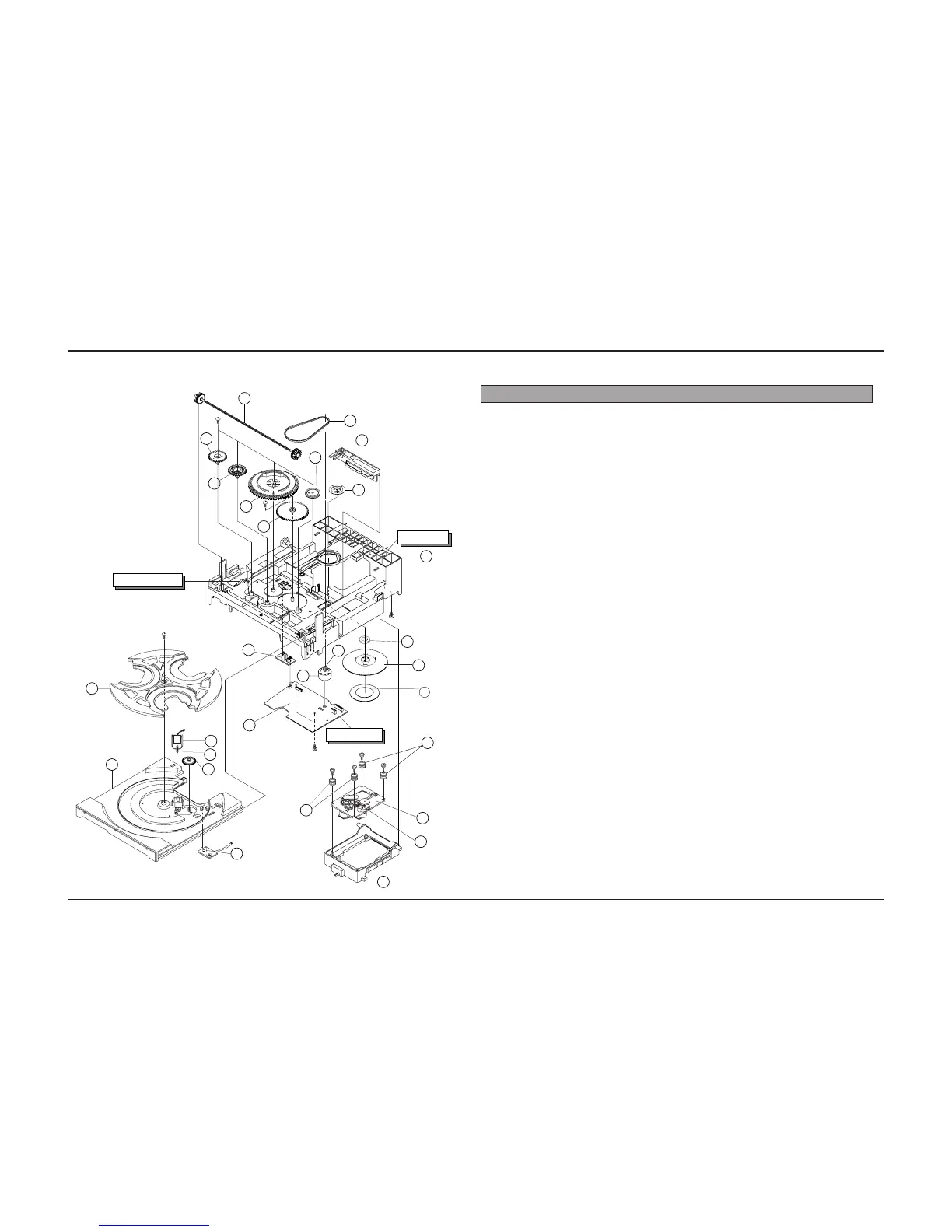

2-3 CD Deck Exploded View and Parts list
12
8
2
28
15
27
19
7
6
5
4
3
1
10
20
17
22
26
21
11
9
14
16
13
CD SUB PCB
TRAY STOPPER
24
23
25
BASE MAIN
18
No. Code No. Description Specification Remarks
AH97-00857A ASS’Y-DECK G3HI-3CD/VCD
1 AH66-80022A SLIDER-CAM ABS HF-380 NTR
2 AH66-60034A BELT-LOAD CR
3 AH66-20186A GEAR-PULLEY POM (M90-44) WHT
4 AH66-20187A GEAR-LOAD POM (M90-44) BLK
5 AH66-20188B GEAR-CAM POM (M90-44) WHT
6 AH66-20189B GEAR-TRAY POM (M90-44) BLK
7 AH66-20190B GEAR-CONVERT POM (M90-44) WHT
8 AH66-20191A GEAR-SYNCRO ABS HF-380 NTR
9 AH66-20192A GEAR-WORM POM(M90-44),M0.5,PCD4.5
10 AH31-12001A MOTOR-LOADING FF-030PN-09120
11 AH66-20193A GEAR-ROULLETE POM(M90-44) BLK
12 AH63-00324A TRAY-ROULLETE ABS XR-401 BLK
13 AH63-00325A TRAY-DISC ABS BLK
14 AH32-10001F SENSOR KPI-L06
15 AH61-00837A BASE-MAIN ABS,NATURAL,CMS-300
16 3302-000159 MAGNET AC,3500-3800G,2.6-3.2MGOe,30
17 AH63-90053A TABLE-CHUCK ,ABS,+GF20%,BLK,
18 AH63-00068B SHEET-CHUCK SHEET,HYMERON,BLK,0.4T
19 3405-000101 SWITCH -MICRO MLS-24
20 AH31-10021A MOTOR-DC RF-500TB,9VDC/130MA
21 AH66-10008A PULLEY-MOTOR POM,BLK,CMS-CR3
22 AH73-10031A RUBBER-CD(R) SI,CMS-300,40,RED
23 AH91-60150C CDP DECK ASSY CMS-D73SG6U
24 AH66-30098A LEVER-LIFTER ABS BLK CMS-300
25 AH30-00007A PICK-UP SOH-AD3
26 AH73-10034A RUBBER-CD(G) SI,CMS-300,40,GREEN
27 AH92-00922A ASS’Y PCB CD MAIN
28 AH61-00225A BRKT-CHUCK SECL 0.8t
