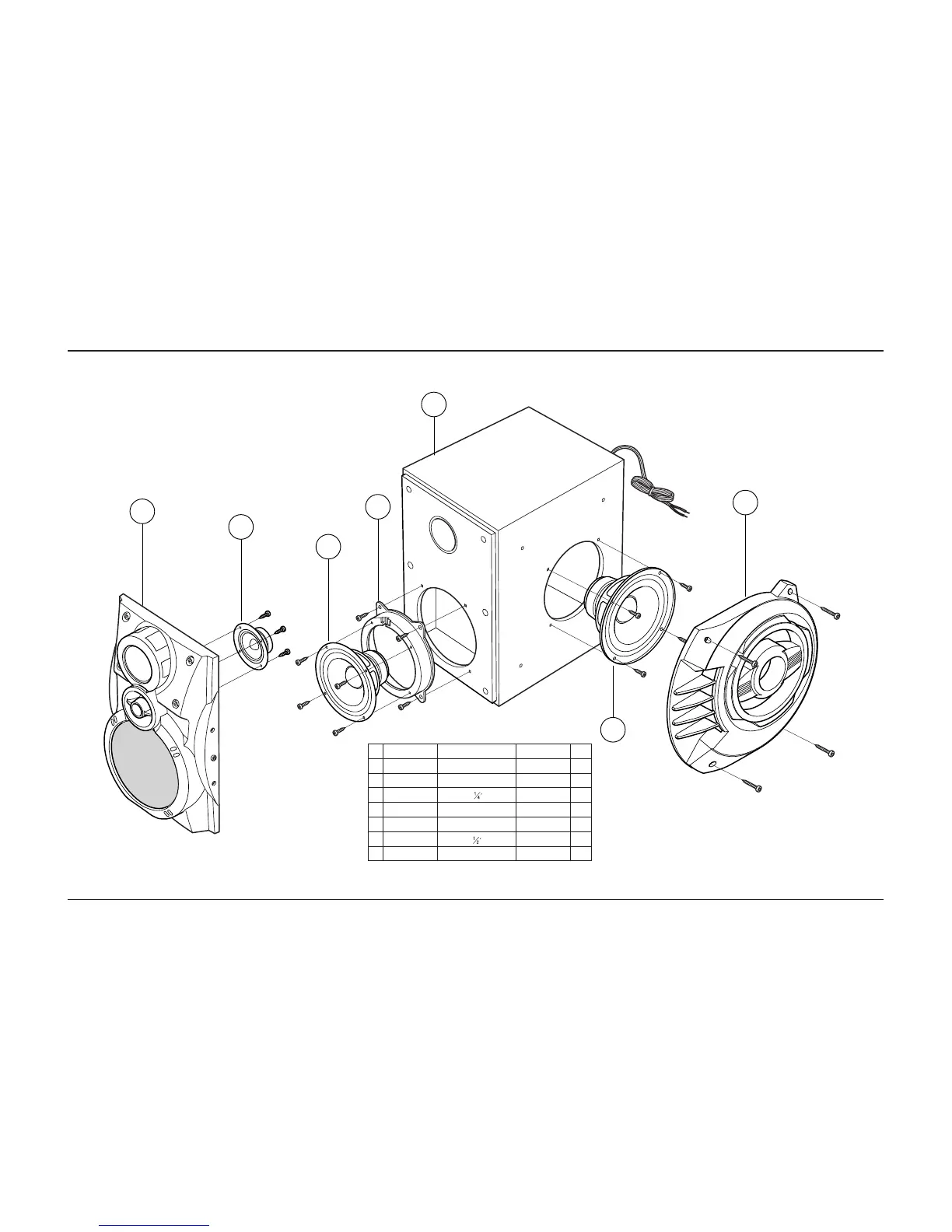

2-4 SPEAKER Exploded View and Parts list
1
2
3
4
5
7
6
PS VB630E ASS'Y LEFT: AH81-00642Y
No. Description Code No. Q'TY
1
PANEL ASS ' Y AH81-00642T 1
2
UNIT TWEETER AH81-00642N 1
Specification
PANEL+P/GRILLE
2"
3 UNIT WOOFER AH81-00642V 1
5
4 WOOFER RING AH81-00642G 1
HIPS BLK
5 CABINET ASS'Y AH81-00642J 1
PB 9t / 12t
6 UNIT SUBWOOFER AH81-00642U 1
6
7 SIDE-PANEL AH81-00642E 1
HIPS WHITE
PS VB630E ASS'Y RIGHT: AH81-00642X
* CAUSION : It is used the bonding, connet NET FRAME(or FRONT PANEL ASS’Y) to CABINET ASS’Y.
So when the disassembly, take extreme care not to demage the SPEAKER.
