Disassembly and Reassembly
4-29Samsung Electronics

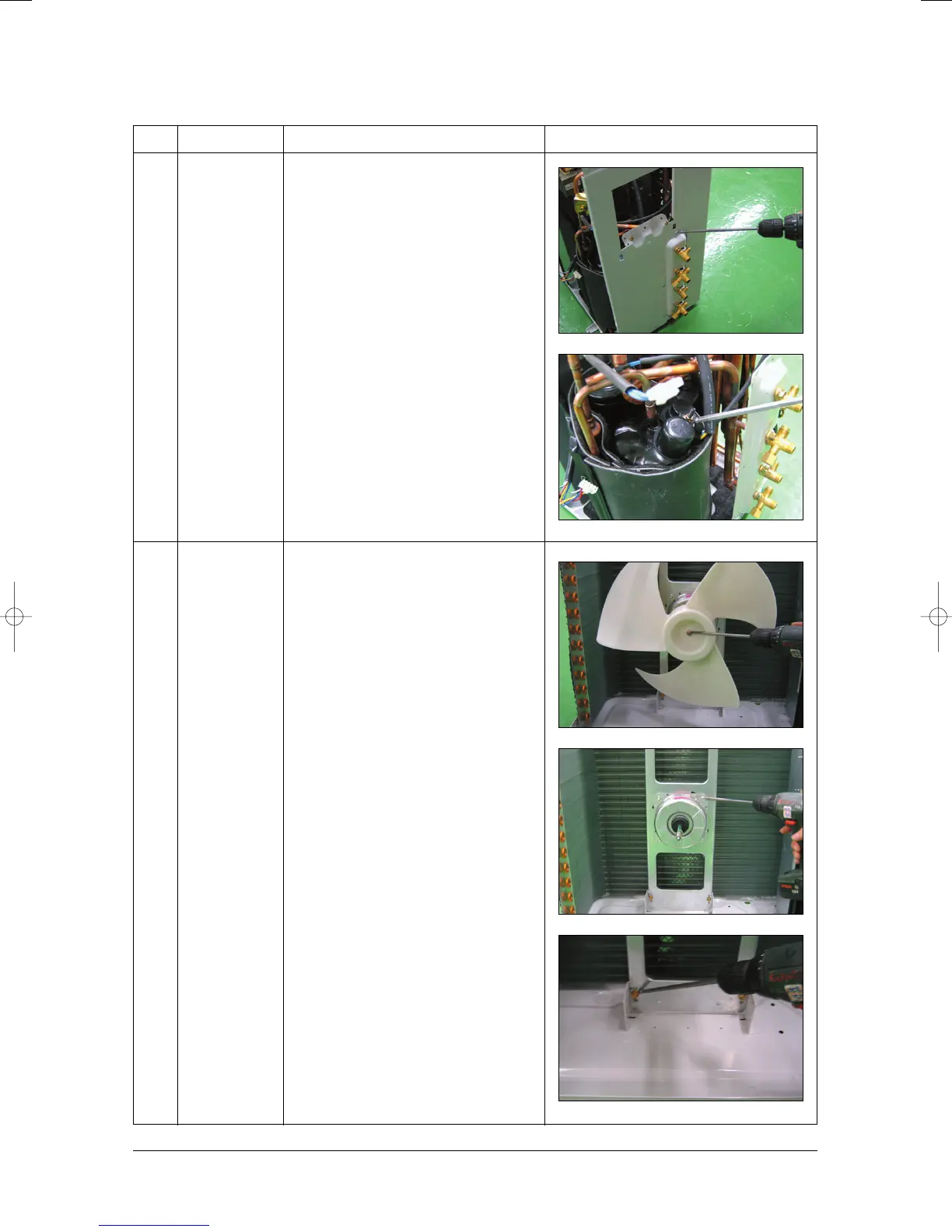

No Parts Procedure Remark
2
Fan
&
Motor
7) Loosen 9 fixing screws and detach the
Cabinet Side.
8) Detach the Terminal and detach the
Compressor Lead Wire.
1) Loosen the fixing nut and detach the Fan.
2) Loosen 4 fixing bolts and detach the
Motor.
3) Loosen 2 fixing bolts and detach the
Bracket Motor.
24296A(1)_1 11/11/05 5:04 PM Page 4-29
To Next Page
