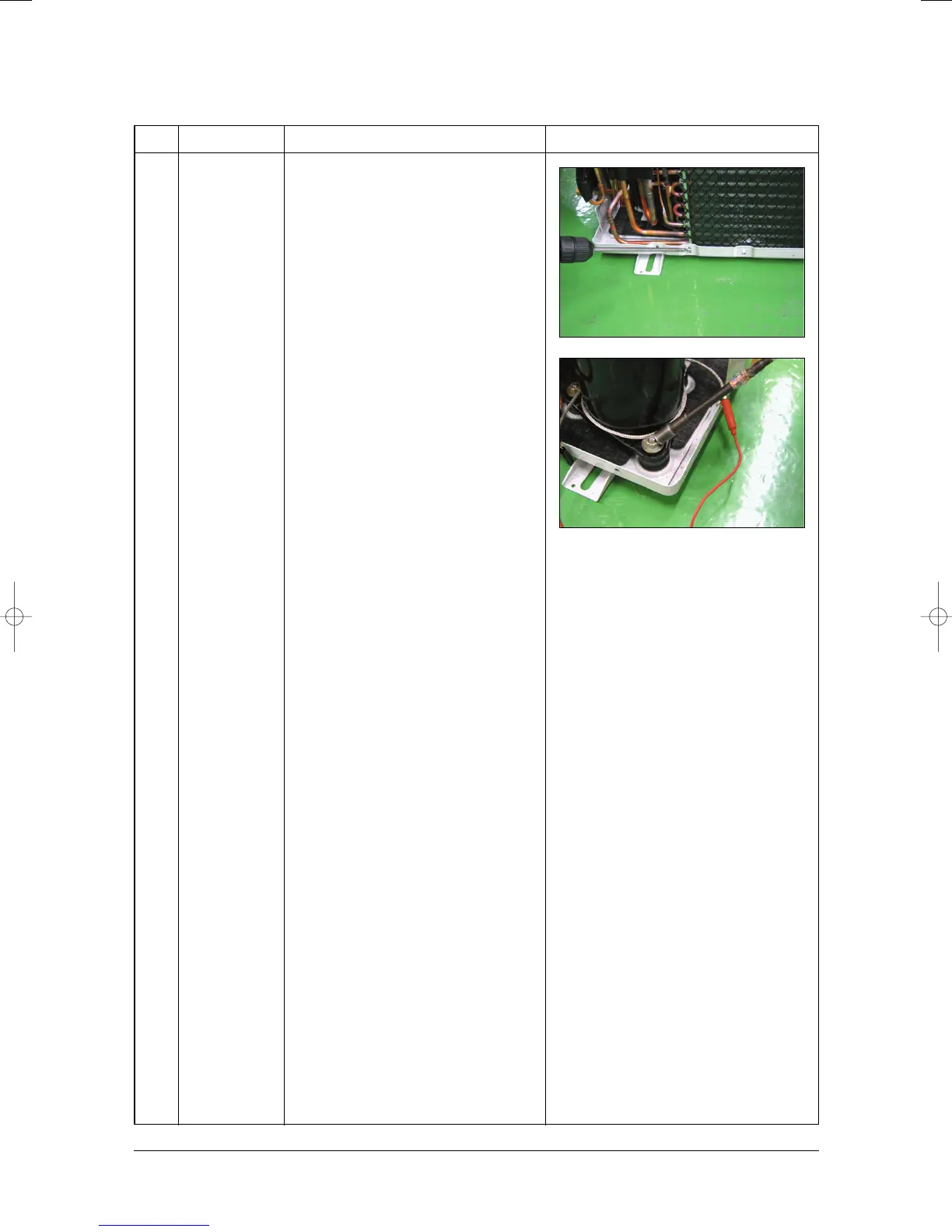

Disassembly and Reassembly
Samsung Electronics4-30
No Parts Procedure Remark
3 Heat Exchanger
&
Compressor
1) Release the refrigerant at first.
2) Disassemble the Inlet and Outlet Pipe by
welding.
3) Loosen the fixing screws of the
Heat Exchanger.
4) Detach the Heat Exchanger.
5) Loosen 3 nuts of the Compressor.
6) Detach the Compressor.
