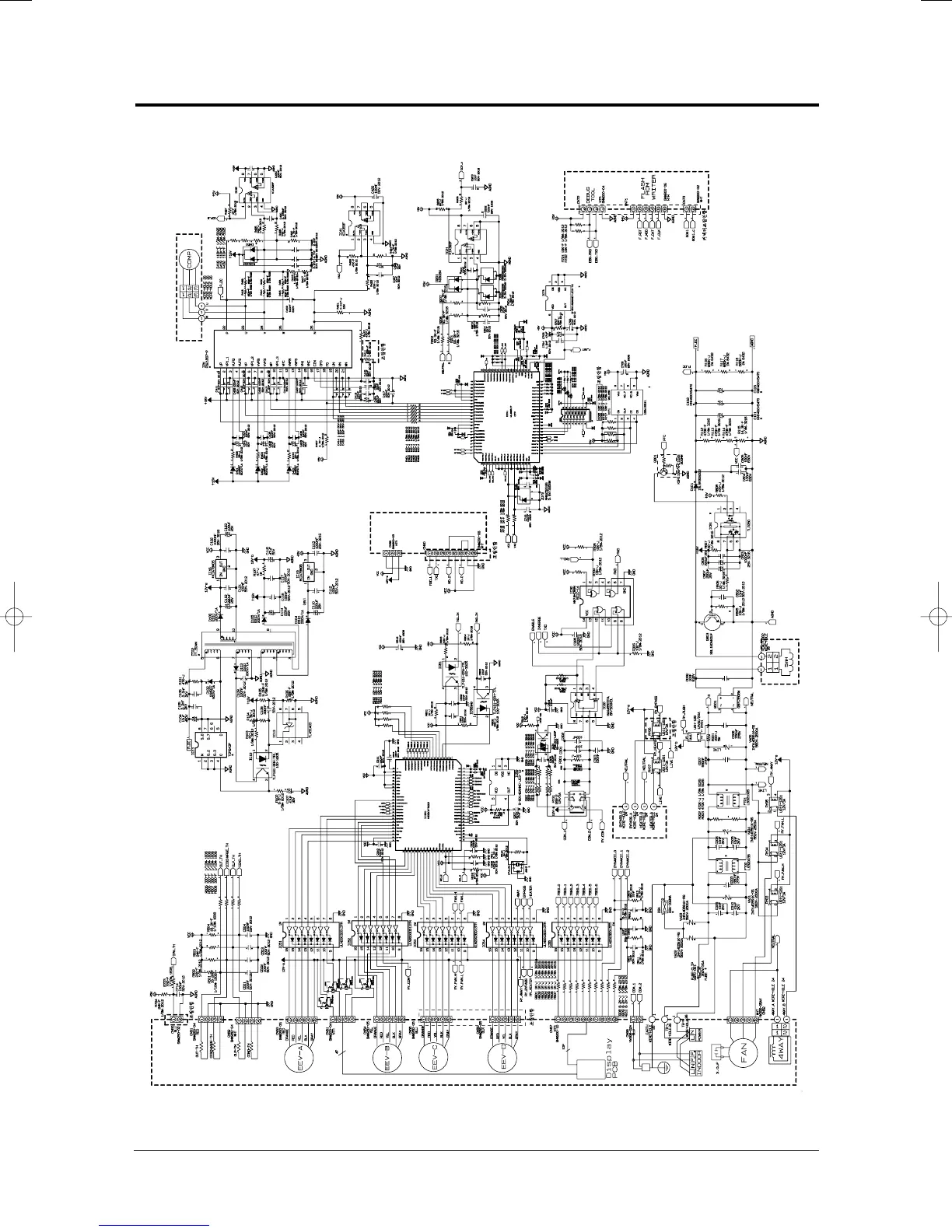

Samsung MH052FXEA2 - Schematic Diagram (Continued); Outdoor Unit Schematic Diagrams

Samsung Electronics8-6
This Document can not be used without Samsung's authorization.
8-2 Outdoor Unit
■ MH040FXEA2/MH052FXEA2/MH14VP2X/MH16VP2X/MH18VP2X/MH19VP2X/MH14VW2X/MH16VW2X/MH18VW2X/MH19VW2X
