Samsung MH052FXEA2 - Reference Information (Continued); Heating Pressure Graphs (7.5 m Piping)

Reference Information
15-8Samsung Electronics

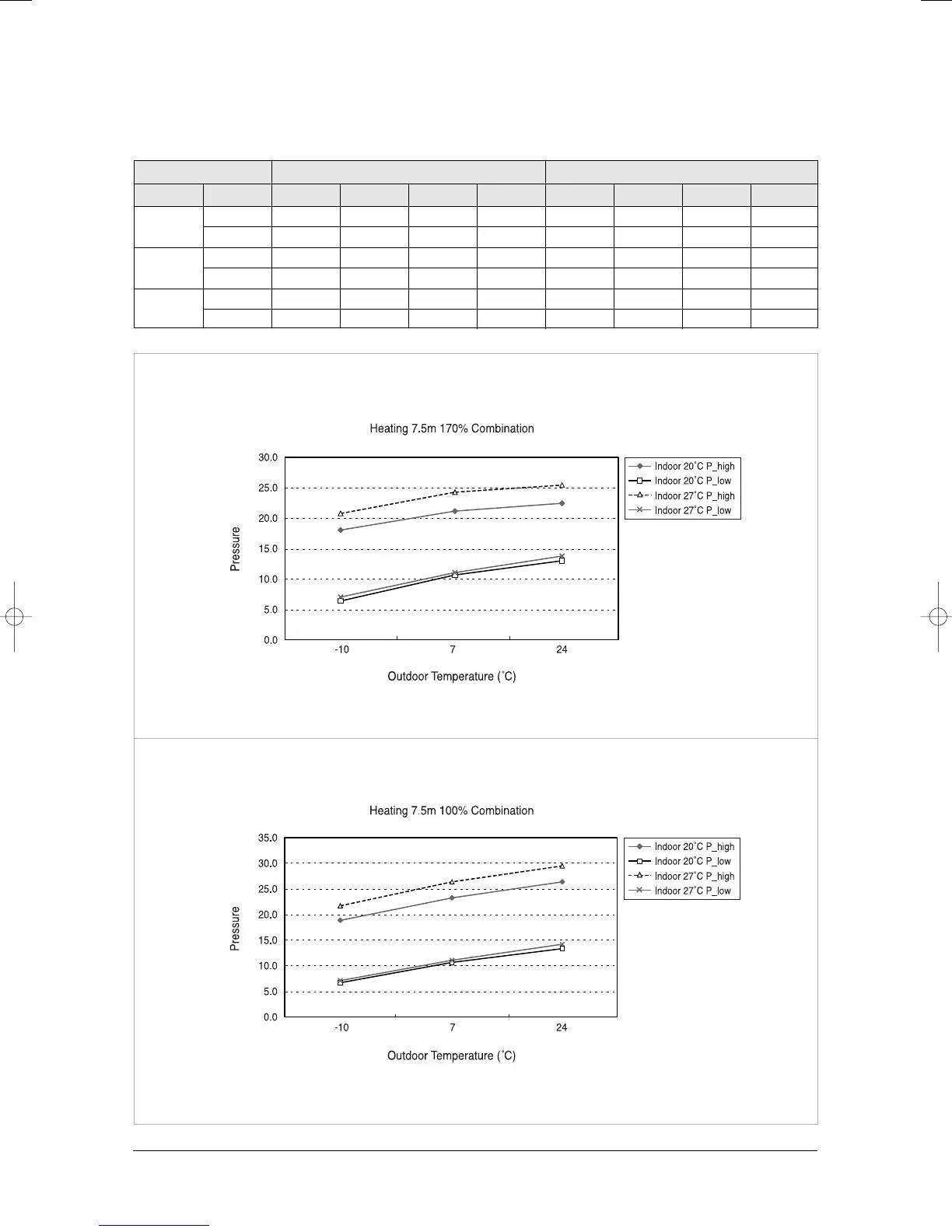

■ Heating(7.5m–Piping)
Outdoor Indoor P_high P_low T_dis T_suc P_high P_low T_dis T_suc
-10
20 18.0 6.4 60.1 -18.9 18.8 6.7 59.8 -17.4
27 20.8 7.0 66.3 -17.1 21.7 7.1 67.0 -15.7
7
20 21.2 10.6 57.9 -1.8 23.2 10.6 64.9 -0.2
27 24.4 11.0 63.0 -0.9 26.3 11.0 69.1 0.5
24
20 22.5 12.9 60.8 16.4 26.4 13.4 71.9 17.3
27 25.5 13.8 64.3 16.8 29.5 14.2 75.9 17.7
170%(ex.026+026+035+052) 100%(ex.026+026+052)
