Samsung ML-1210 Service Manual

Disassembly and Reassembly
3-3
Samsung Electronics
3-4 Transfer Roller

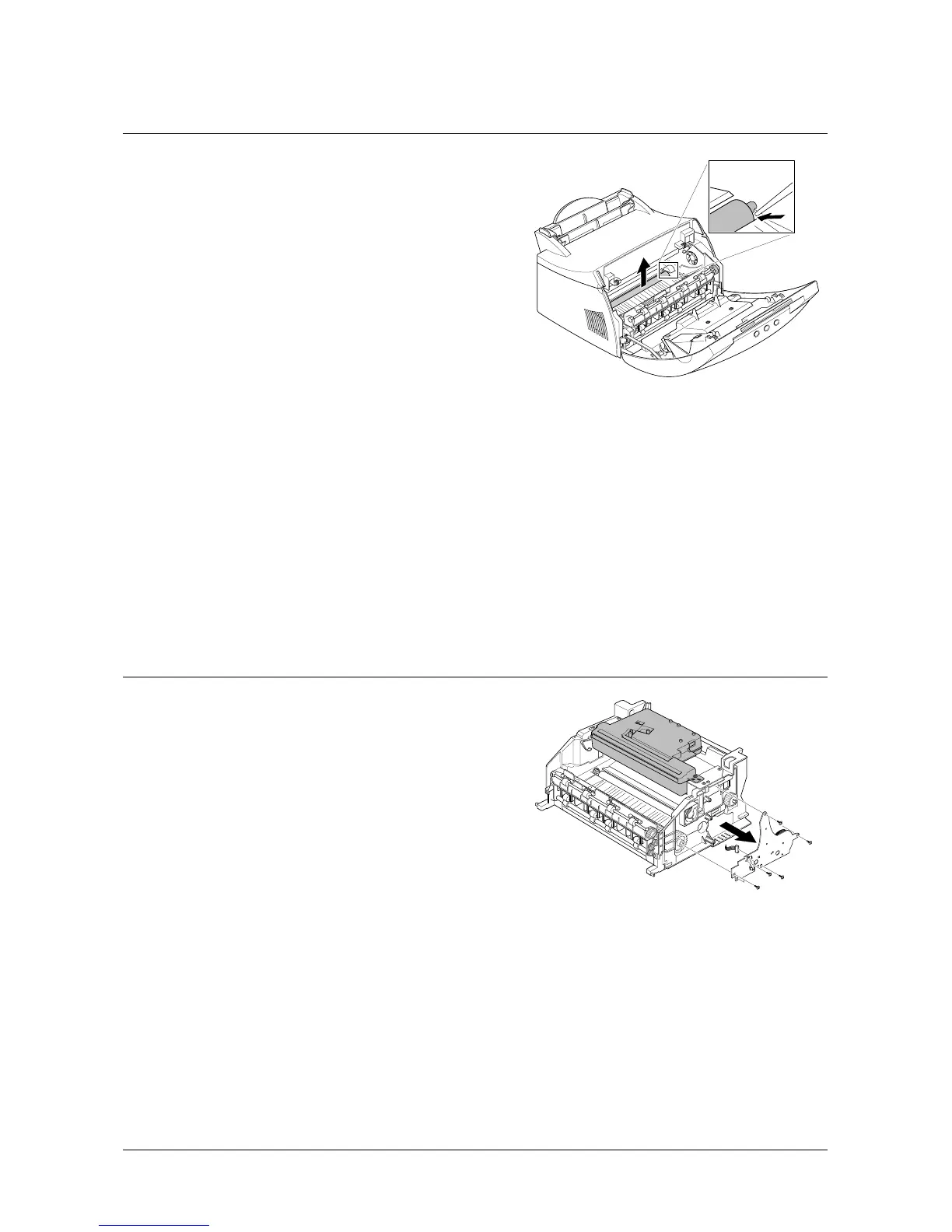

1. Open the front cover.
2. Use a proper tool("-" type screwdriver) to pull the one
end of the roller slightly, then take it out.
3-5 Motor Assembly
1. Before you remove the motor assembly, you should
remove:
• Main Cover (see [3-1 Main Cover])
• Shield Engine Assembly
2. Remove five screws securing the motor assembly
and remove a connector from engine board(Engine
board and SMPS board are integrated), then take the
motor assembly out.

Samsung ML-1210 Specifications

General

Color	No
Print technology	Laser printing
Type	Original
Printing colors	Black
Black toner page yield	2500 pages
