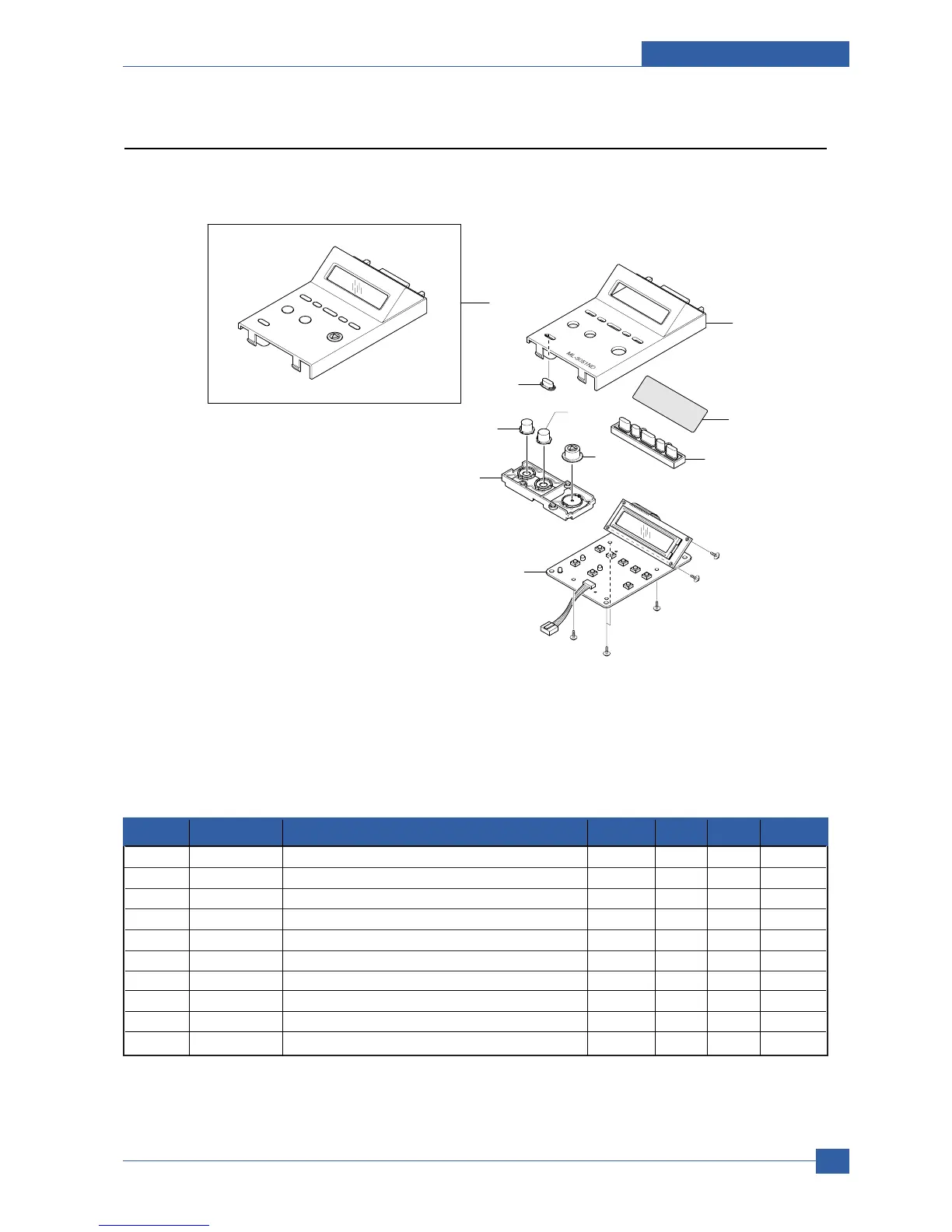

5.5 OPE Cover Ass'y
0
1
2
3
5
4
6
7
8
9
OPE Cover Ass'y Parts List
5.5-0 JC97-02923A ELA HOU-COVER OPE D2130 1 SA
5.5-1 JC63-00972P COVER-M_KEY MENU_LCD D2131 1 SNA
5.5-2 JC72-00672A PCT-LCD WINDOW B2132 1 SNA
5.5-3 JC67-00147A LENS LED-M_STATUS Z4432 1 SNA
5.5-4 JC64-00234A KEY-M_MENU B2133 1 SNA
5.5-5 JC64-00235A KEY-M_BUTTON B2134 1 SNA
5.5-6 JC64-00047A KEY-M-SAVE MODE K0049 1 SA
5.5-7 JC64-00254A KEY-M_DEMO B2135 1 SNA
5.5-8 JC64-00236A KEY-M_STOP Z4435 1 SNA
5.5-9 JC92-01750A PBA SUB-OPE D2153 1 SA
Drawer# SEC_Code Description Location QT'y Service Remark
SA : SERVICE AVAILABLE, SNA : SERVICE not AVAILABLE
