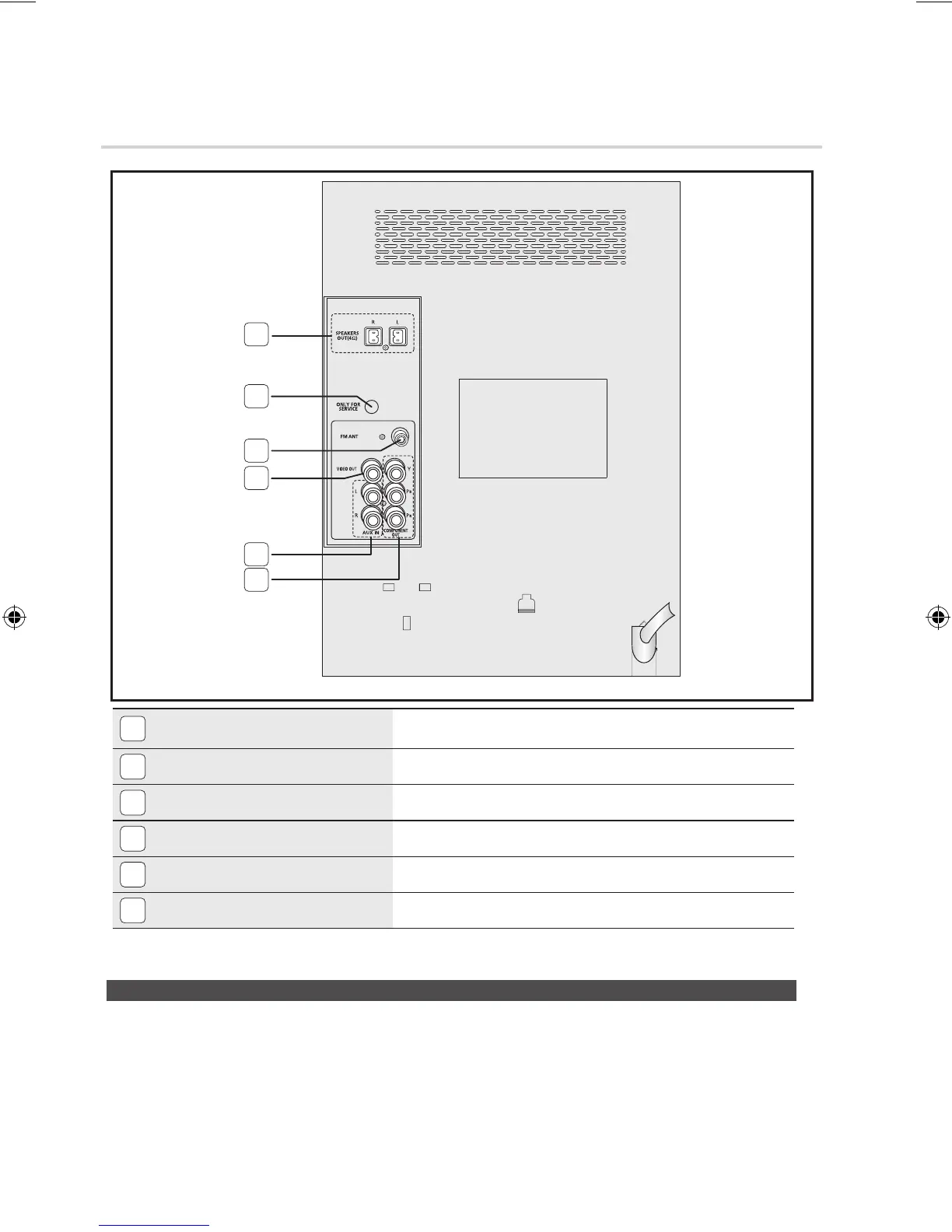

Rear Panel
1
2.0 CHANNEL SPEAKER OUTPUT
CONNECTORS
Connect the front speakers.
2
ONLY FOR SERVICE
This jack is just for testing, please don't use it.
3
FM ANTENNA JACK
Connect the FM antenna.
4
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
5
AUX IN JACK
Connect the Audio Out of the external analog component to the AUX IN jack.
6
COMPONENT VIDEO OUTPUT JACKS
Connect a TV with Component video inputs to these jacks.
1
2
3
4
5
6
Where to Install Your Mini-Compact System
To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.
Install the system on a flat, stable surface.
`
Never place this unit on carpeting.
`
Never place this unit in an outdoor area.
`
Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.
`
Make sure that you have enough room to open the compact disc compartment easily.
`
Place the Speakers at a reasonable distance on either side of the system to ensure good stereo sound.
`
Direct the Speakers towards the listening area.
`
For optimum performance, make sure that both speakers are placed at an equal distance above the floor.
`
