Connecting the Video Out to your TV
Choose one method for connecting to a TV.

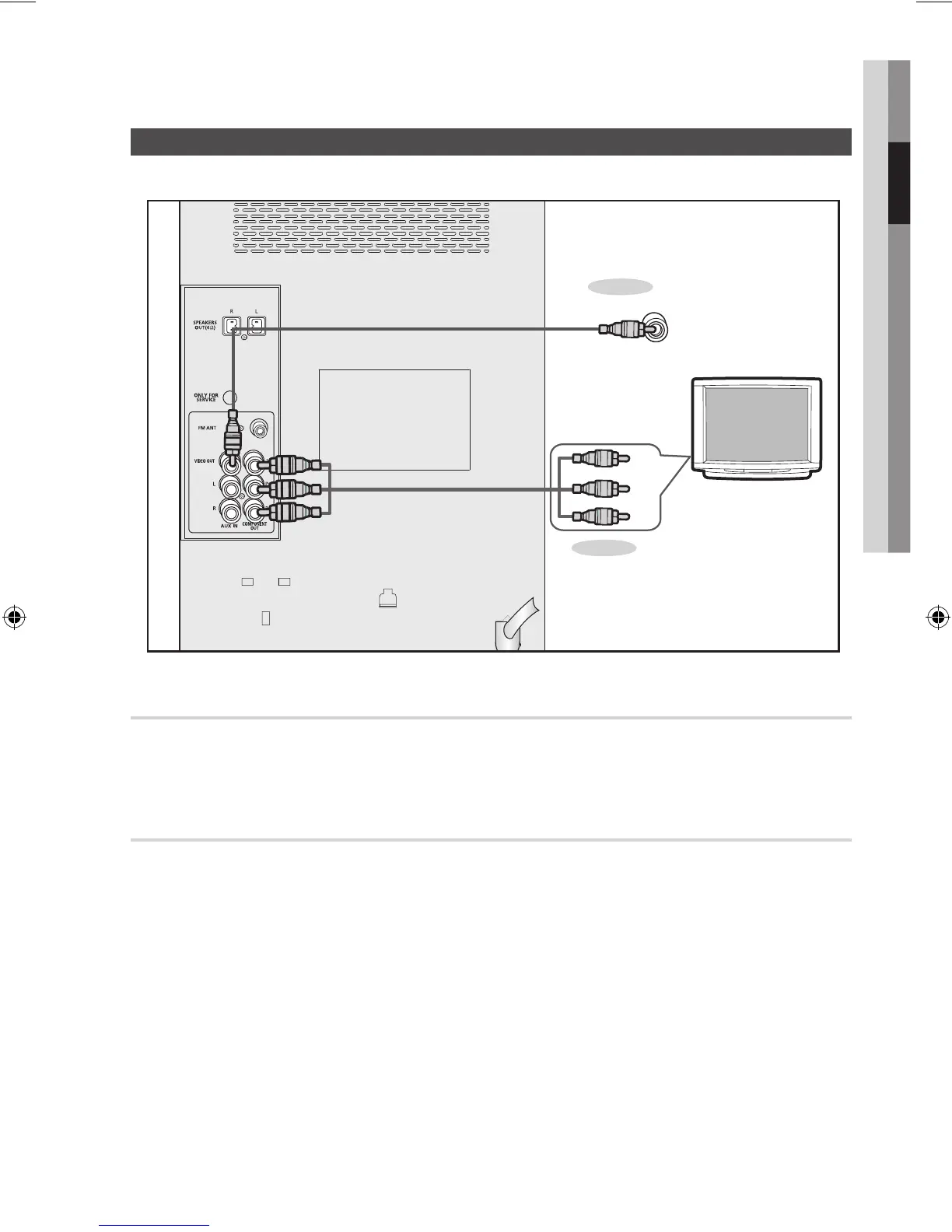

METHOD 1 : Component Video (BETTER QUALITY)
If your television is equipped with Component Video inputs, connect a Component video cable (not supplied)
from the COMPONENT OUT (Pr, Pb and Y) Jacks on the back of the product to the Component Video
Input Jacks on your TV.
METHOD 2 : Composite Video (GOOD QUALITY)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack
on your TV.
Connections
COMPONENT IN
VIDEO INPUT
TV
METHOD 2
(supplied)
METHOD 1
( not supplied)
