Ⅴ. ADJUSTMENT
[Adjustment Light Source Specifications]
-
Specification of the Adjustment Tool : A light source that can block out external light sources.
-
Colour Temperature : 3200K ± 50
-
Brightness : LV 13.2 ± 0.1
-
Distance from the Adjustment Tool : 15mm±2mm
※
Hold the LV checker closely up to the surface of the light source box.
(Using the LV checker manufactured by our factory.)

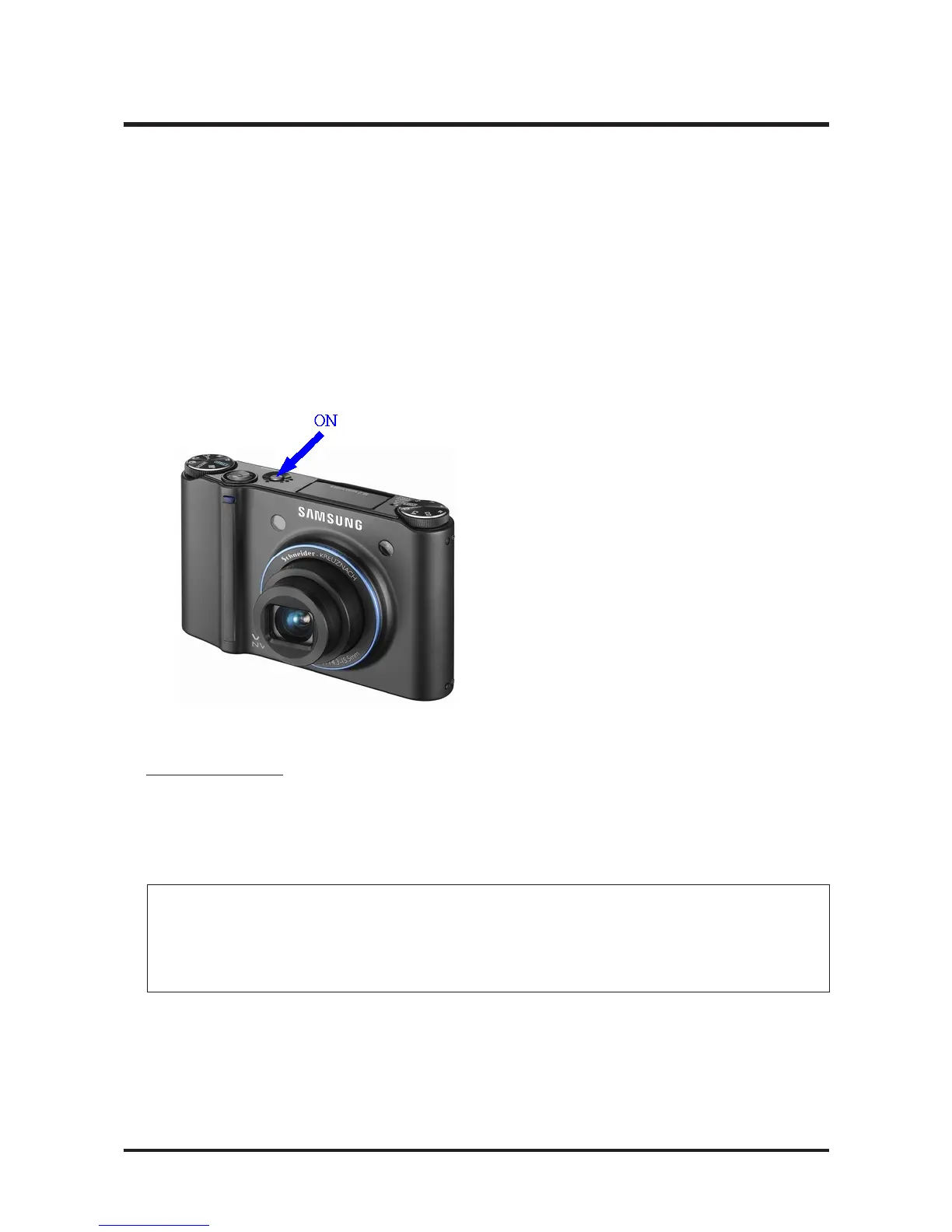

3. Turn on the camera and the Adjustment
mode will be selected automatically.
C. Log File Analysis
After completing the adjustment, an adjustment result log file should have been created in the SD memory
card.
Open the log file with Notepad and determine whether it is Good or Bad.
Index IRIS Type SS_Ref CAPtemp_Eva_C SS_Delay_Time Result SS_Delay1 ... SS_Delay30
1 Small 8120 8140 -2816 OK -1583 ... 0
*2 Small 8192 8232 -2766 OK -1583 ... 0
