Connection
"
Ensure you connect each of the adapters to the correct RS232C IN or OUT port on the
product.
"
Connecting parts may differ depending on the model.

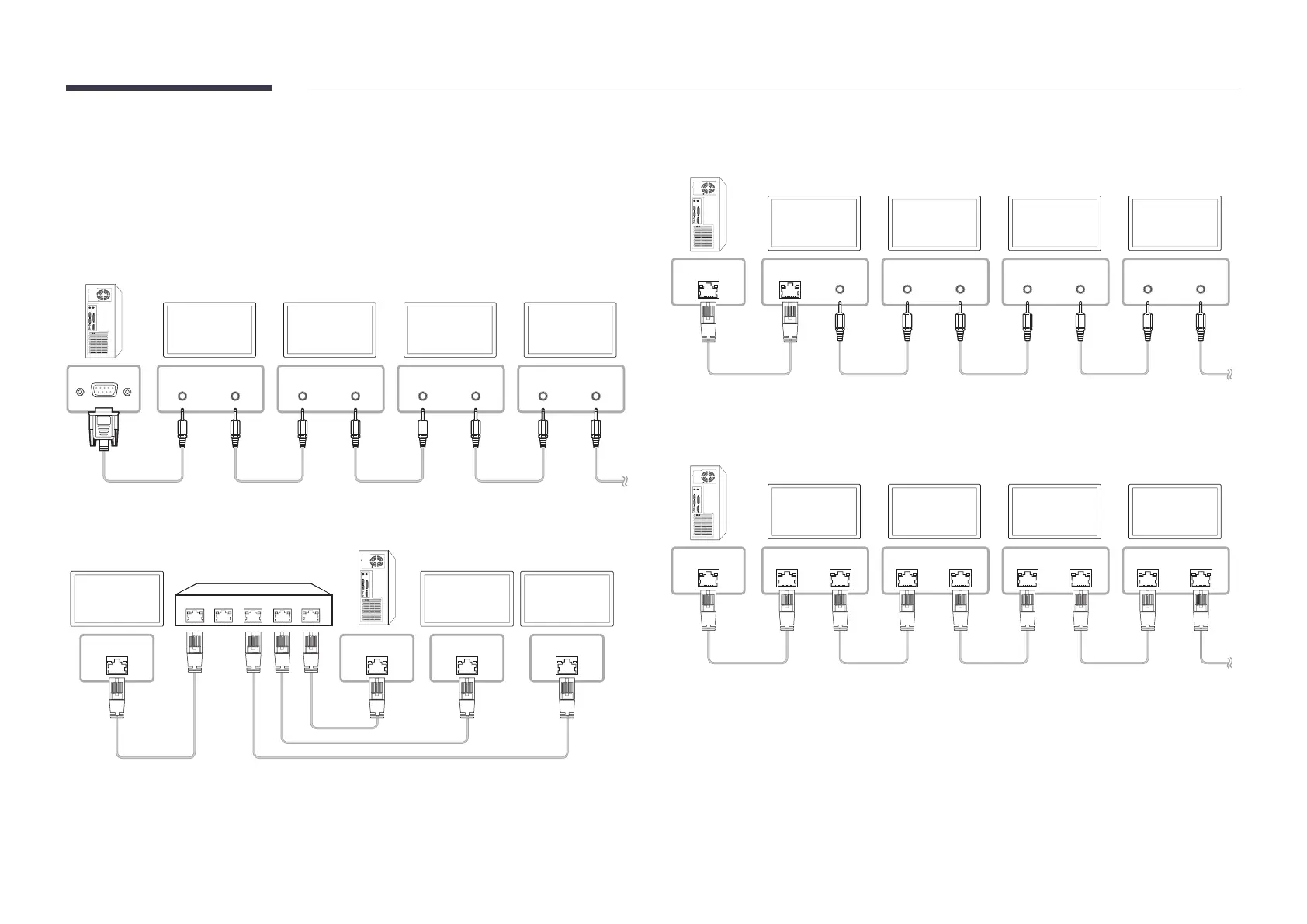

Connection 1
RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
Connection 2
LAN INLAN IN RJ45 LAN IN
5 4 3 2 1
Monitor 2Monitor 1
PC
Monitor 3
Connection 3
RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUT RS232C IN RS232C OUTLAN INRJ45
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
Connection 4
"
This option is only available for models that have LAN IN and LAN OUT ports.
LAN OUTLAN IN LAN OUTLAN IN LAN OUTLAN IN LAN OUTLAN INRJ45
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
