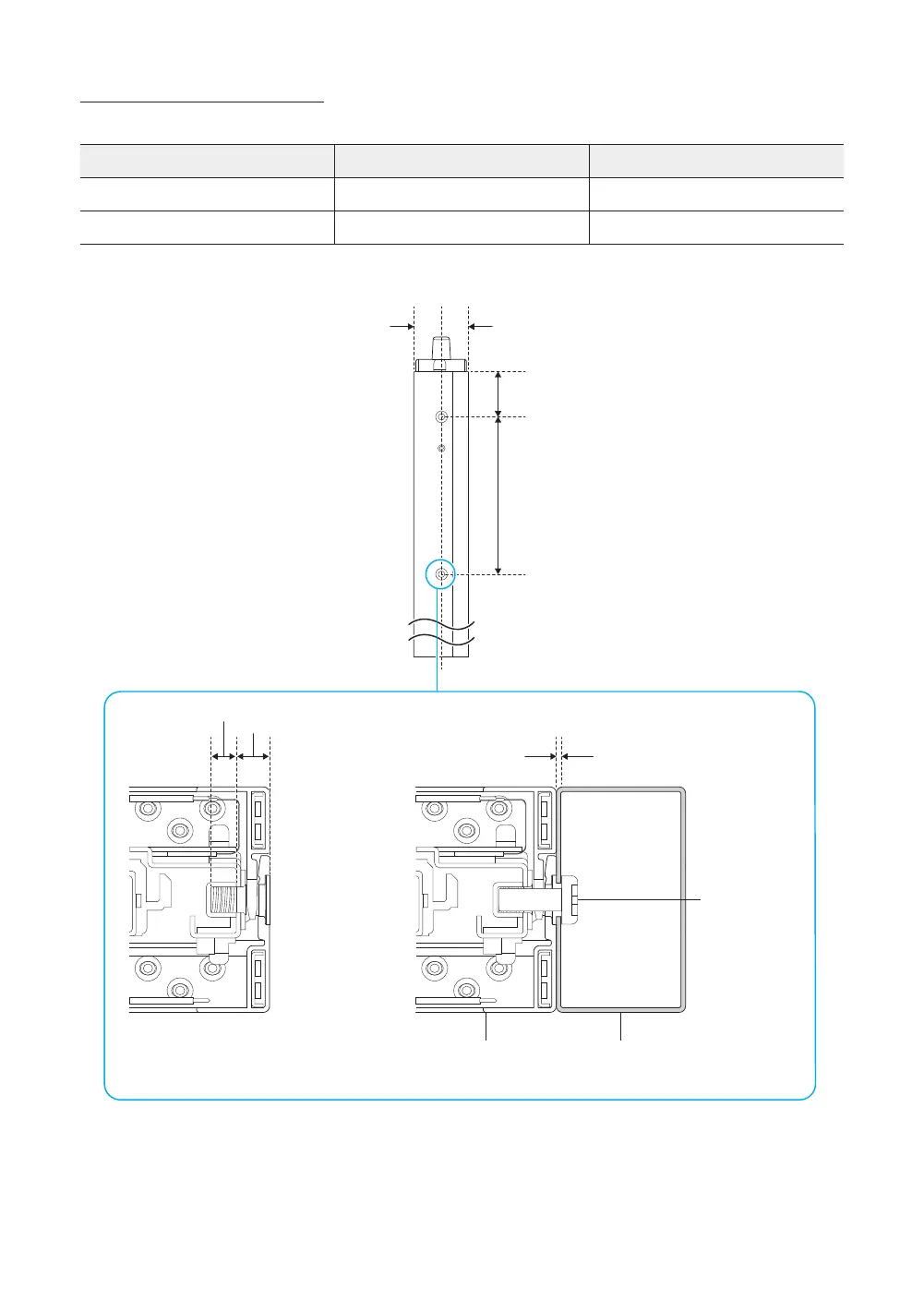

Screws for bracket installation
• Use screws appropriate for the material and thickness of the bracket.
Thickness Screw Length (A)
2.0 t M8 x L18 5.9 mm
2.5 t ~ 4.0 t M8 x L20 5.5 ~ 7.0 mm
Bracket material thicknessInner structure of the product
Thickness
M8 x L18
(Thickness 1.6 t ~ 2.0 t)
10.5 mm (Cut-thru space)
34.75 mm 34.75 mm
58 mm
200 mm
Length (A): 7.0 mm
Side view
Product Bracket
English - 16
OM46N-D / OM55N-D
