4

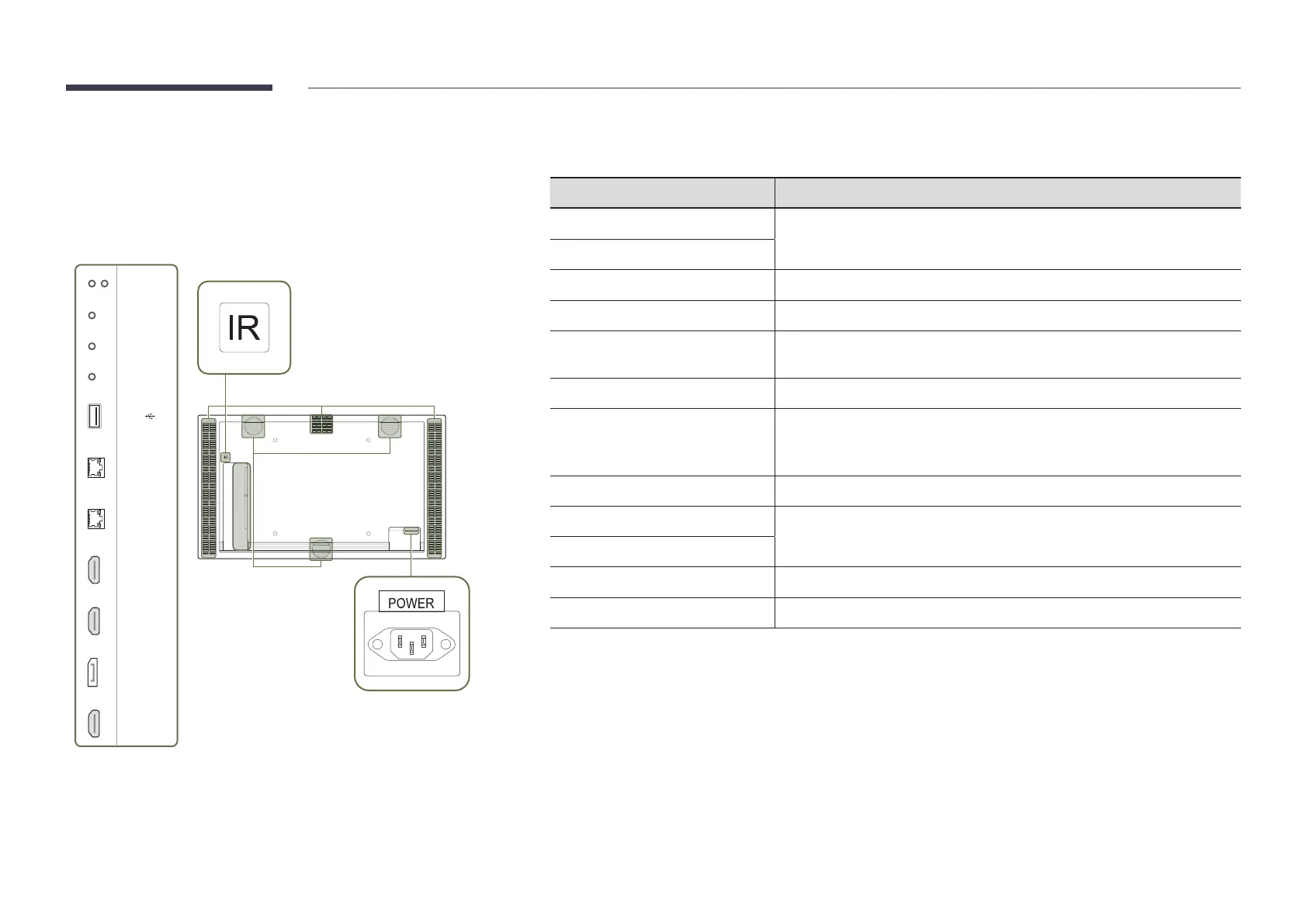

Ports
OM46N/OM55N
RS232C
OUT / IN
AUDIO OUT
IR IN
AMBIENT
SENSOR IN
USB
LAN OUT
LAN IN
HDMI 1 IN
HDMI 2 IN
DP IN
HDMI OUT
Stick the receiver of an external IR
cable to this location when the cable
is not used or the product is moved.
Air outlet
Air inlet
"
The color and shape of parts may differ from what is shown. Specifications are subject to change without notice
to improve quality.
Port Description
RS232C OUT
Connects to MDC using an RS232C adapter.
RS232C IN
AUDIO OUT
Outputs sound to an audio device via an audio cable.
IR IN
Connects to an external IR cable that receives signals from the remote control.
AMBIENT SENSOR IN
Used to supply power to the external sensor board and to receive signals from
the ambient light sensor.
USB
¨
Connect to a USB memory device.
LAN OUT
• Wired LAN connection port used to connect an external device such as a
laptop to connect to the Internet.
• Connects to MDC using a LAN cable. (10/100 Mbps)
LAN IN
Connects to MDC using a LAN cable. (10/100 Mbps)
HDMI 1 IN
Connects to a source device using a HDMI cable or HDMI-DVI cable.
HDMI 2 IN
DP IN
Connects to a PC using a DP cable.
HDMI OUT
Connects to another product using a HDMI cable.
