Samsung QB75R Quick Setup Guide

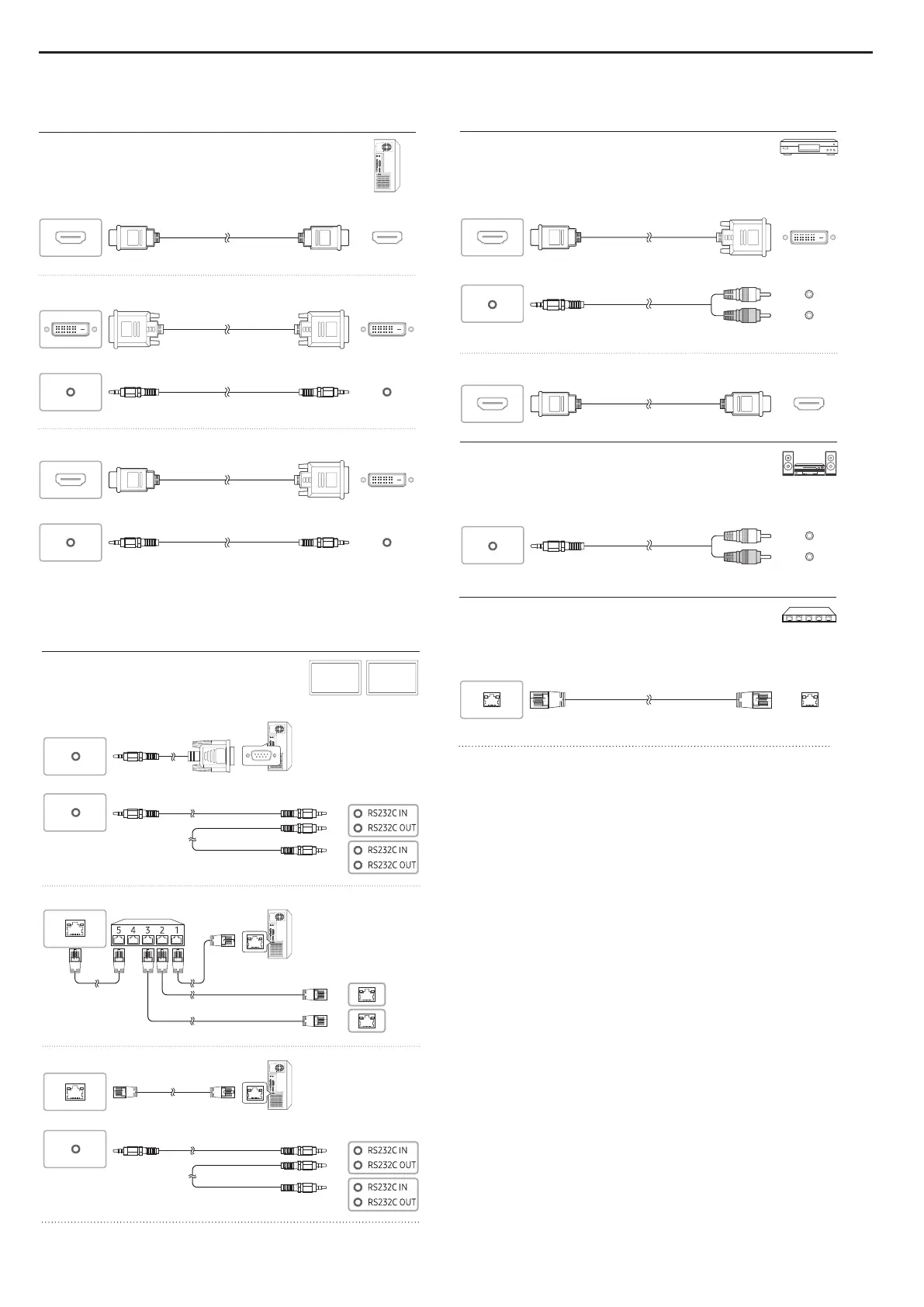

Connecting to a Video Device
Connecting to MDC
Connecting to a PC
HDMI IN 1 (ARC), HDMI IN 2
DP IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DP IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DP IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
AUDIO OUT
DVI/HDMI AUDIO IN
White
Red
White
Red
HDMI IN 1 (ARC), HDMI IN 2
DP IN
DVI/MAGICINFO IN
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
HDMI IN 1 (ARC), HDMI IN 2
DVI/HDMI AUDIO IN
Connecting to an Audio System
HDMI IN 1 (ARC), HDMI IN 2
AUDIO OUT
DVI/HDMI AUDIO IN
White
Red
White
Red
Use Cat7(*STP Type) cable for the connection. (10/100 Mbps)
*Shielded Twist Pair
Connecting the LAN Cable
RJ45
For details on how to use the MDC program, refer to Help after installing the program.
The MDC program is available on the website.
http://www.samsung.com/displaysolutions
RS232C OUT
RJ45
RS232C IN
RS232C OUT
RJ45
HUB
RS232C OUT
RJ45
RS232C IN
RS232C OUT
RJ45
HUB
RS232C OUT
RJ45
RS232C IN
RS232C OUT
RJ45
HUB
Connecting and Using a Source Device

Samsung QB75R Specifications

General

Color gamut	92 %
Pixel pitch	0.42975 x 0.42975 mm
Response time	8 ms
Display diagonal	74.5 \
Display brightness	350 cd/m²
Display technology	LED
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
LED backlighting type	Edge-LED BLU
Contrast ratio (typical)	4000:1
Display number of colors	16.78 million colors
Active display area (W x H)	1650.24 x 928.26 mm
Dynamic contrast ratio marketing name	Mega Contrast
Product color	Black
Product design	Digital signage flat panel
Bezel width (side)	11.5 mm
Placement supported	Indoor
Bezel width (bottom)	12.5 mm
Panel mounting interface	400 x 400 mm
Package depth	223 mm
Package width	1871 mm
Package height	1127 mm
Package weight	49000 g
AC input voltage	100 - 240 V
Heat dissipation	787.7 BTU/h
AC input frequency	50 - 60 Hz
Power consumption (sleep)	0.5 W
Power consumption (standby)	- W
Power consumption (typical)	150 W
L2 cache	2048 KB
User memory	3.88 GB
Memory clock speed	1500 MHz
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
Cables included	AC
Purpose	Universal
Operating hours (hours/days)	16/7
Internal memory	2.5 GB
Processor cores	4
Processor model	A72
Processor family	ARM Cortex
Processor frequency	1.7 GHz
Audio formats supported	AC3
Image formats supported	JPEG, PNG
Video formats supported	AVC, AVS, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9
Internal storage capacity	8 GB
Operating system installed	Tizen 4.0
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
RMS rated power	20 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	49.7 mm
Width	1681.1 mm
Height	960.1 mm
Weight	38300 g
