Before Installing the Product (Installation
Guide)

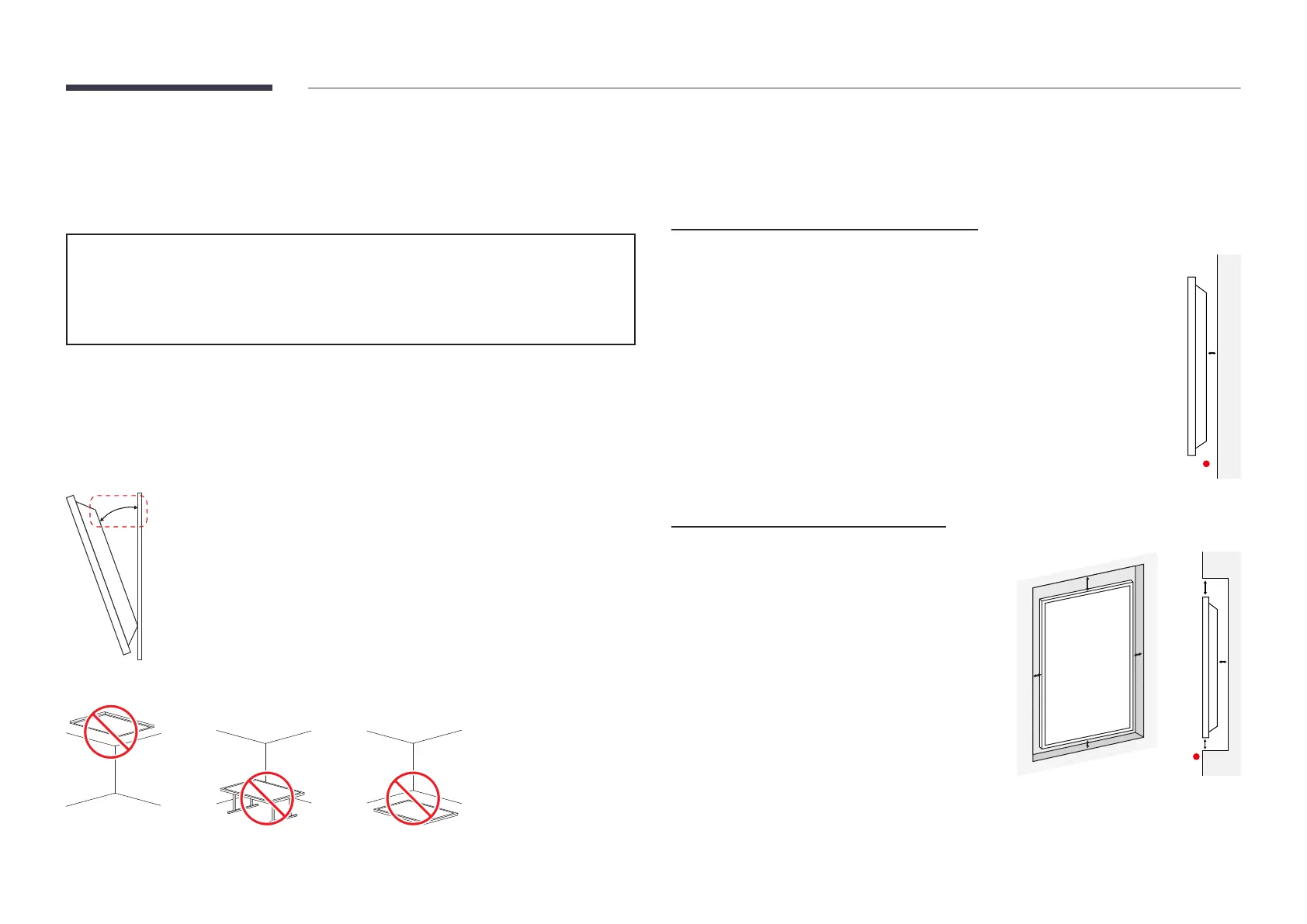

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
Ensure that an authorised installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.
Tilting Angle
"
Supported model: QET
"
Contact Samsung Customer Service Centre for further details.
The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
15°
"
Do not use this model installed on a ceiling, floor, or table.
Ventilation
"
Contact Samsung Customer Service Centre for further details.
Installation on a Perpendicular Wall
A
Minimum 40 mm
B
Ambient temperature: Under 35 °C
"
When installing the product on a perpendicular wall, allow at least
40 mm of space between the product and wall surface for ventilation
and ensure that the ambient temperature is kept below 35 °C.
A
B
Installation on an Indented Wall
A
Minimum 40 mm
B
Minimum 70 mm
C
Minimum 50 mm
D
Minimum 50 mm
E
Ambient temperature: Under 35 °C
"
When installing the product on an indented
wall, allow at least the space specified above
between the product and wall for ventilation
and ensure that the ambient temperature is
kept below 35 °C.
B
D
C
D
B
C
E
A
