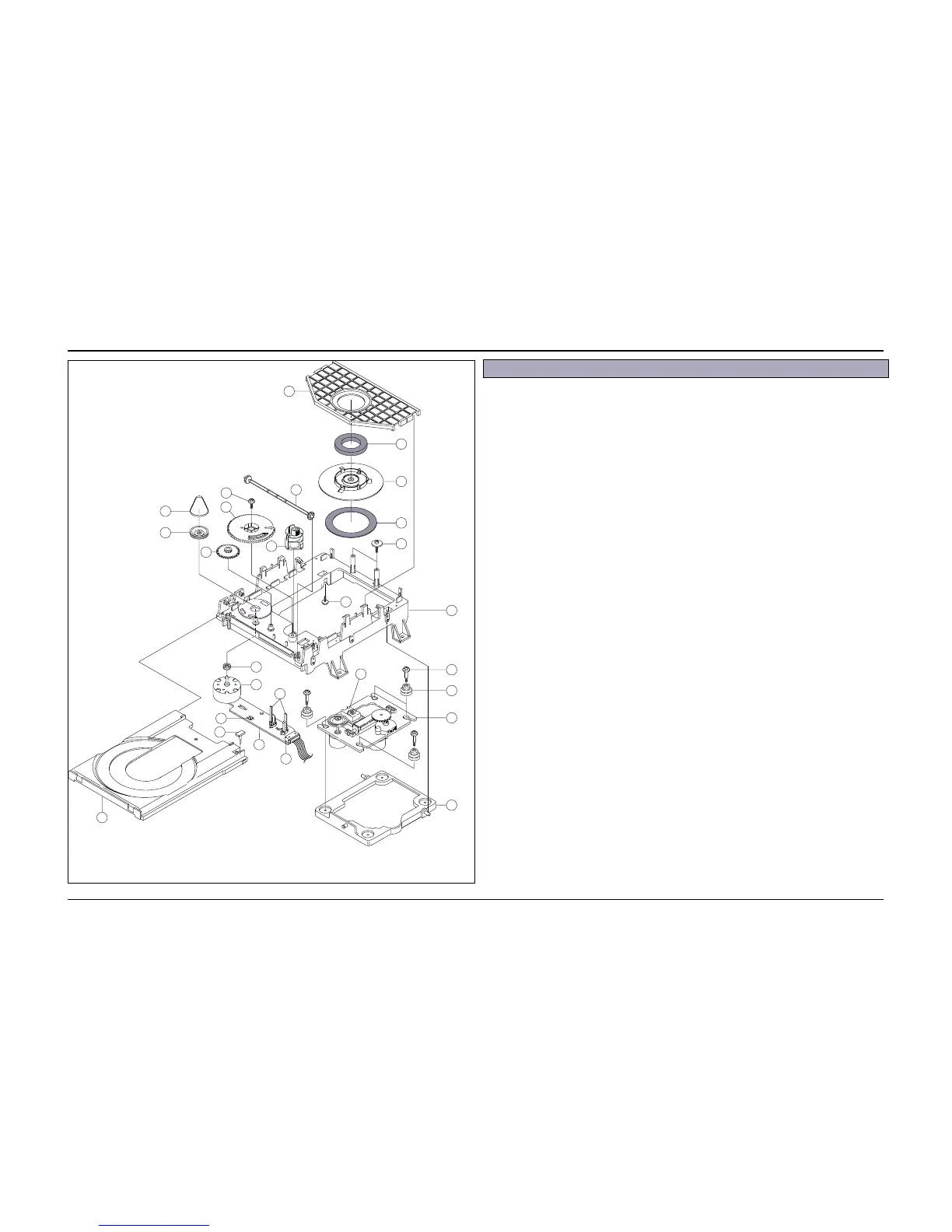

3-3 CD Deck Exploded View and Parts List
10
13
21
18
7
5
6
16
14
12
17
3
11
1
23
15
4
19
8
2
20
9
22
26
25
24
27
No. Code No. Description Specification Remarks
1 AH61-20463A BASE-MAIN ABS BLK
2 AH66-60035A BELT-PULLEY CR T1.5 BLK
3 AH59-20004Y DECK CDP ASS’Y CMS-P30AM6UD
4 3711-001061 CONNECTOR-HEADER BOX 6P 1R 2mm ANGLE SN
5 AH66-22004A GEAR POM BLK
6 AH66-22001A GEAR-CAM POM BLK
7 AH66-22002A GEAR-PULLEY POM BLK
8 AH66-20196A GEAR-SYNCHRO POM BLK
9 AH66-22003A GEAR-TRAY POM BLK
10 AH61-20464A HOLDER-CHUCK ABS+GF20%
11 AH66-30088A LEVER-LIFT ABS+GF20%
12 AH61-50182A SHAFT-CD SCREW TAP TITE
13 3302-000159 MAGNET-FERRITE 6P FERRITE
14 AH31-10021A MOTOR-DC RF-500TB-12560
15 AH41-10469A PCB-SUB XPC
16 AH66-10025A PULLEY-MOTOR POM BLK
17 AH73-10012A RUBBER-CD SI BLU45
18 AH63-70081C SHEET-CHUCK HYMELON
19 3409-001010 S/W-LEAF MIC
20 AH61-42002A STOPPER-PIN POM WHT
21 AH66-90060A TABLE-CHUCK ABS+GF10%
22 AH66-90059A TRAY ABS BLK
23 0402-000125 DIODE 1N4001 50V 1A
24 AJ60-10001A SCREW TAP TITE PWH M7 L5
25 AH60-10051A SCREW TAP TITE PWH PI12 M3X8
26 AH60-10107A SCREW TAP TITE PWH PI15 M3X12
27 AJ30-20001B PICK-UP SOH-AP
