Samsung RCD-M70 - Exploded Views and Parts List; 3-1 Cassette Deck Exploded View and Parts List

Samsung Electronics
3-1
3.Exploded Views and Parts List

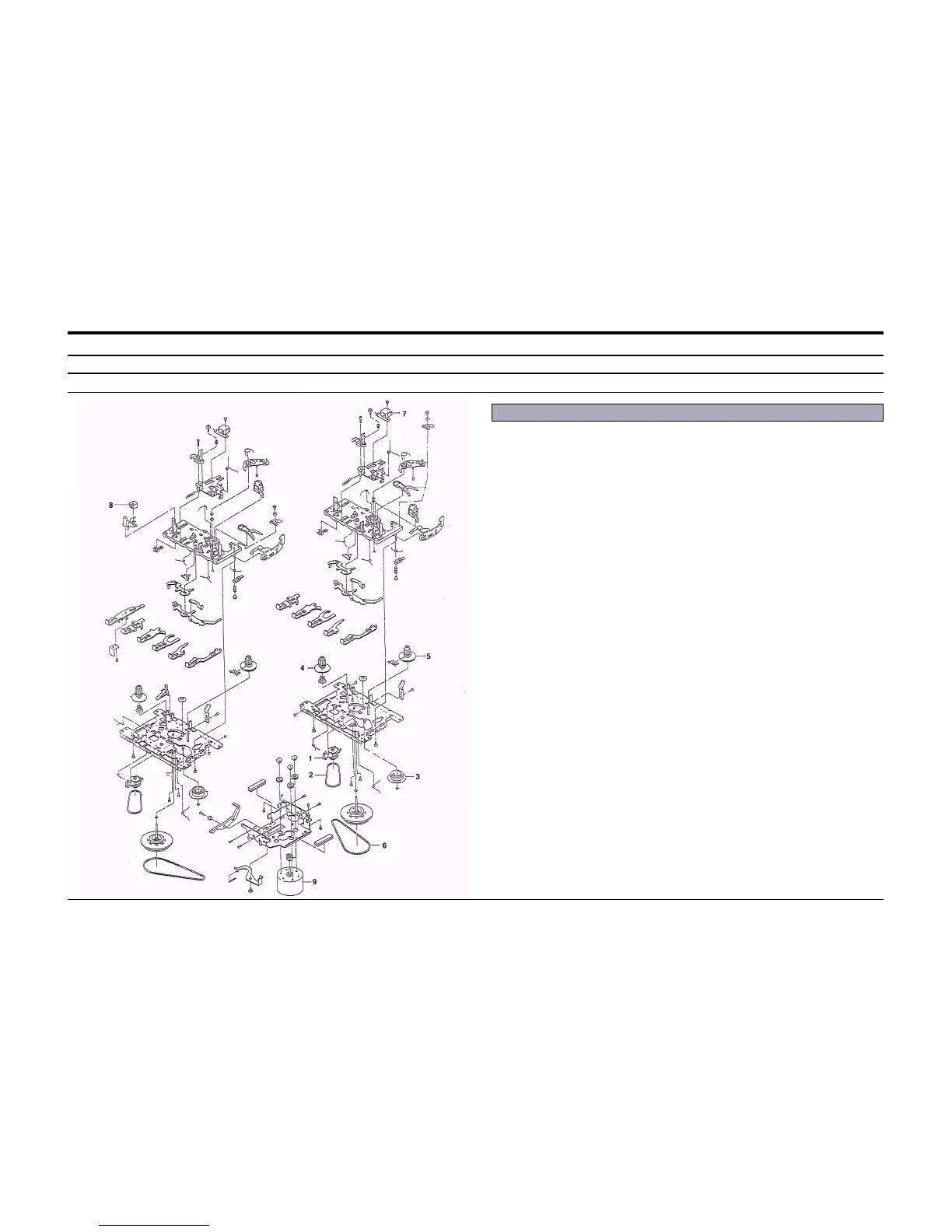

3-1 Cassette Deck Exploded View and Parts List
No. Code No. Description Specification Remarks
AH59-20005X DECK-CASSETTE YN21ZSW-77
1 AH81-11037D R.F PULLEY ASS’Y 8521-200090-300
2 AH81-11154D BELT SUB 6600-090014-001
3 AH81-11037H CAM GEAR 6021-200802-001
4 AH81-11037J S REEL ASS’Y 8521-200080-300
5 AH81-11037K T REEL ASS’Y 8521-200070-300
6 AH81-11154E BELT MAIN 6600-090020-001
7 AH81-11150W R/P HEAD TC-951
8 AH81-11150X ERASE HEAD TC-230AN
9 AH81-11037Q MOTOR EG530YD2BH
3-1-1 AUTO STOP(OPTION)
