Ice Maker

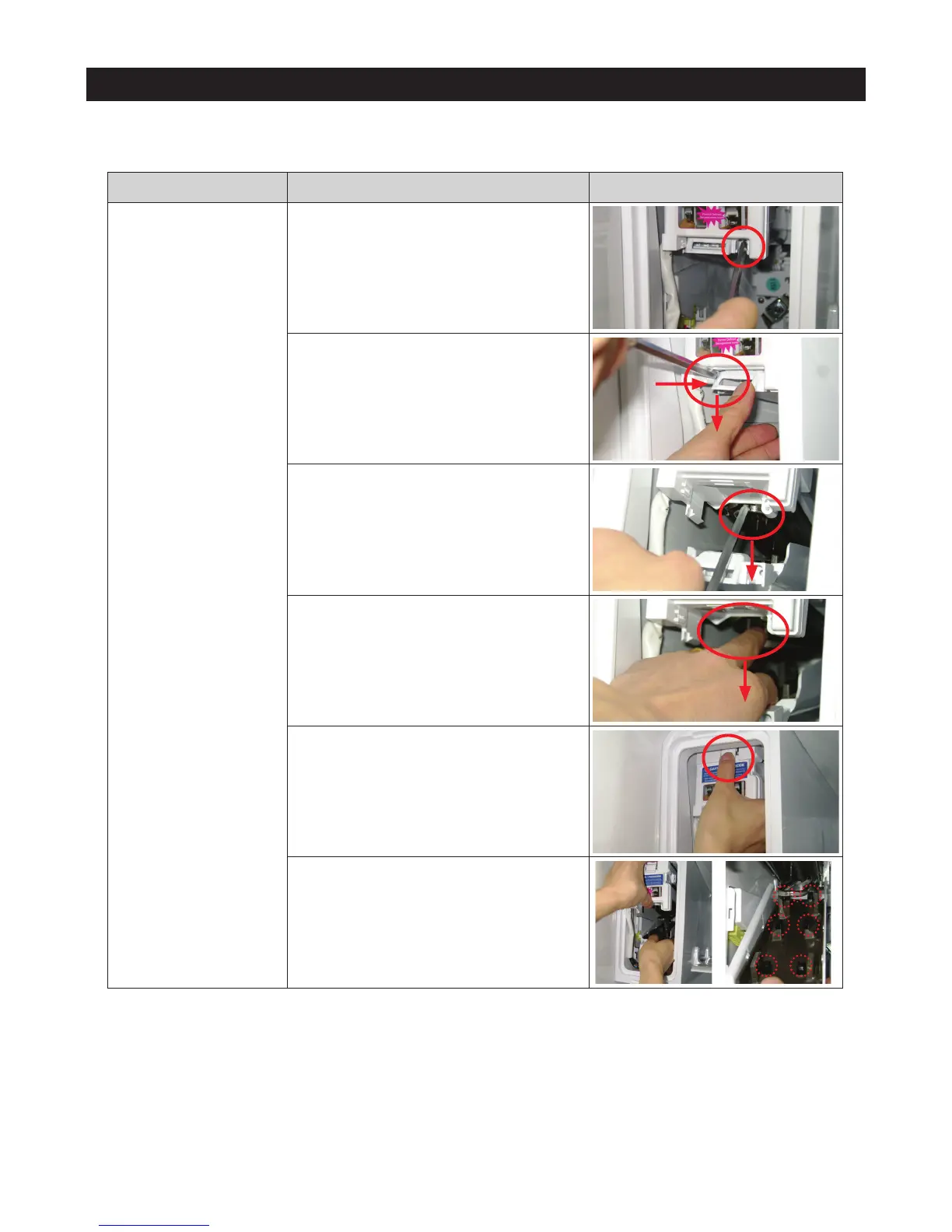

7. Remove the screw from the Duct Tray-ice.
8. With a flat blade screwdriver, push the duct
to the right and remove it from the locking
tab. (Refer to the image.)
9. With a flat blade screwdriver, pry down on
the refrigerant tube to separate it from the
bottom of the ice maker.
(Refer to the image.)
10. Push down the refrigerant pipe slightly and
separate the refrigerant pipe and the Ice
Maker Assembly completely.
11. While pressing the Hook, pull out the Ice
Maker.
12. While pushing down the Duct-Tray-Ice, pull
out the Ice Maker carefully and remove it.
※ When removing the Ice Maker, When
removing the ice maker, be careful not to
damage the grommets on the tray or the
refrigerant tube. (Refer to the dotted parts on
the right side photo.)
