4-2-10. When the Panel PCB does not operate normally
- There is a MICOM embedded in the Panel PCB. So, take care when doing repairs. And, except the Solder
Touch, replace the PCB.
Since all Touch is used for the Panel PCB Switch, be sure to turn off the unit and turn it on again after
doing a repair. [It is to adjust the sensitivity of the Touch Panel.]
① When the entire or a certain section of the Panel PCB does not light up
② When the Panel PCB buttons do not work
※ When it keeps troubling after check with the above procedures
[Check after turning off the unit and turning it on again]

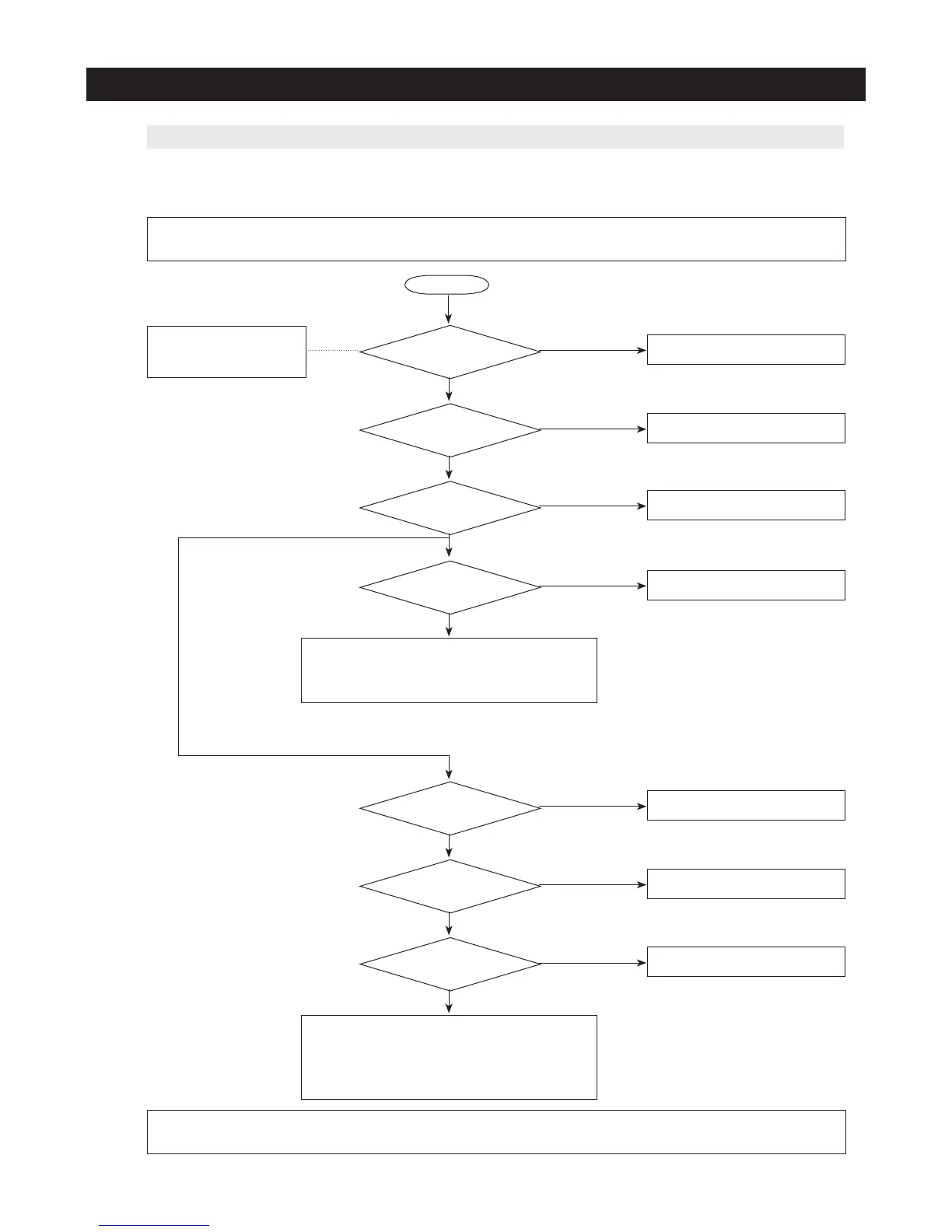

Start
Is the connetor
insertion of freezer upper-hinge
nomal?
① Check the Dispenser and the Top Cover Hinge Connectors.
Check the Wire Cut and the Wire Short.
② Check the wire connection between the Fridge Top
Cabinet and the Main PCB Connector.
Check the Wire Cut and the Wire Short.
① Check the Dispenser and the Top Cover Hinge Connectors.
Check the Wire Cut and the Wire Short.
② Check the wire connection at the Fridge Top Cabinet.
Check the Wire Cut and the Wire Short.
③ Check Short/Open at the Panel Communication & the Power
Supply Circuit of the Main PCB
Yes
No
MAIN PCB
Connector (CN50) is inserted
normally?
Yes
The Panel
PCB Connecter is connected
properly?
Yes
When
replacing Panel-PCB,
it lights up?
NO
Buttons get stuck
being pressed down?
NO
Buttons get stuck
being pressed down?
NO
Buttons get stuck
being pressed down?
NO
Refer to the Circuit Diagram of
this manual or the Wiring Diagram
attached at the back of the unit.
Insert Connector again Repair the contact
trouble
No
Insert MAIN PCB Connector again
No
Insert Connector again Repair the contact
trouble
Yes
Replace Panel PCB
Yes
Re-assemble PCB ASS'Y or clear the restriction
Yes
Re-assemble PCB ASS'Y or clear the restriction
Yes
Replace Panel PCB
To Next Page
