3-27) COMPRESSOR

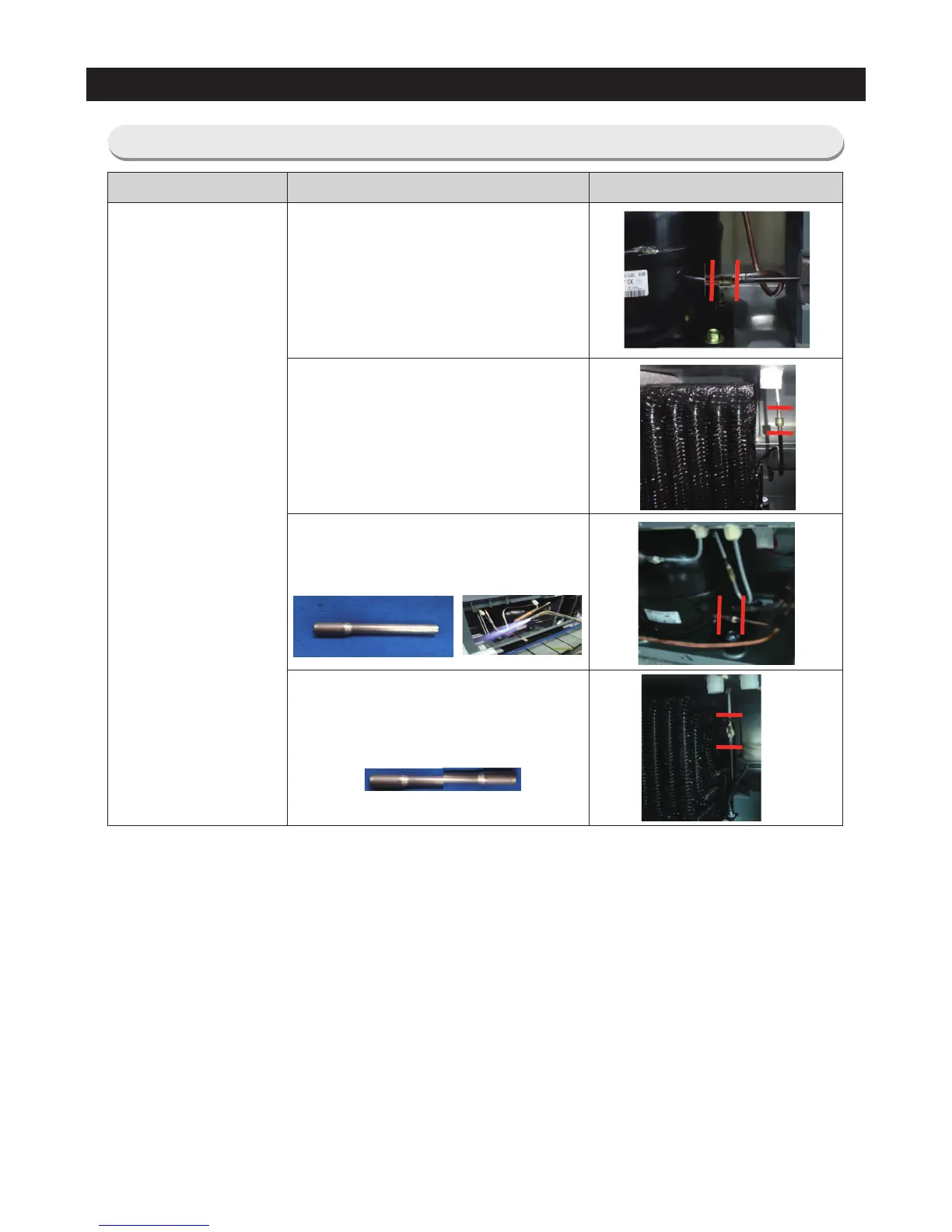

COMPRESSOR
1. Cut off the LOKRING connecting the COMP
and the CONDENSER with a Pipe Cutter.
(Red-line marking points)
2. Cut off the LOKRING connecting the
CONDENSER and the HOT PIPE with a Pipe
Cutter. (Red-line marking points)
3. Link the COMP and the CONDENSER with
a PIPE-CONNECTOR (DA81-05659A) by
brazing the joint areas.
4. Link the CONDENSER and the HOT PIPE
with a PIPE-CONNECTOR (DA81-05659B)
by brazing the joint areas.
