23

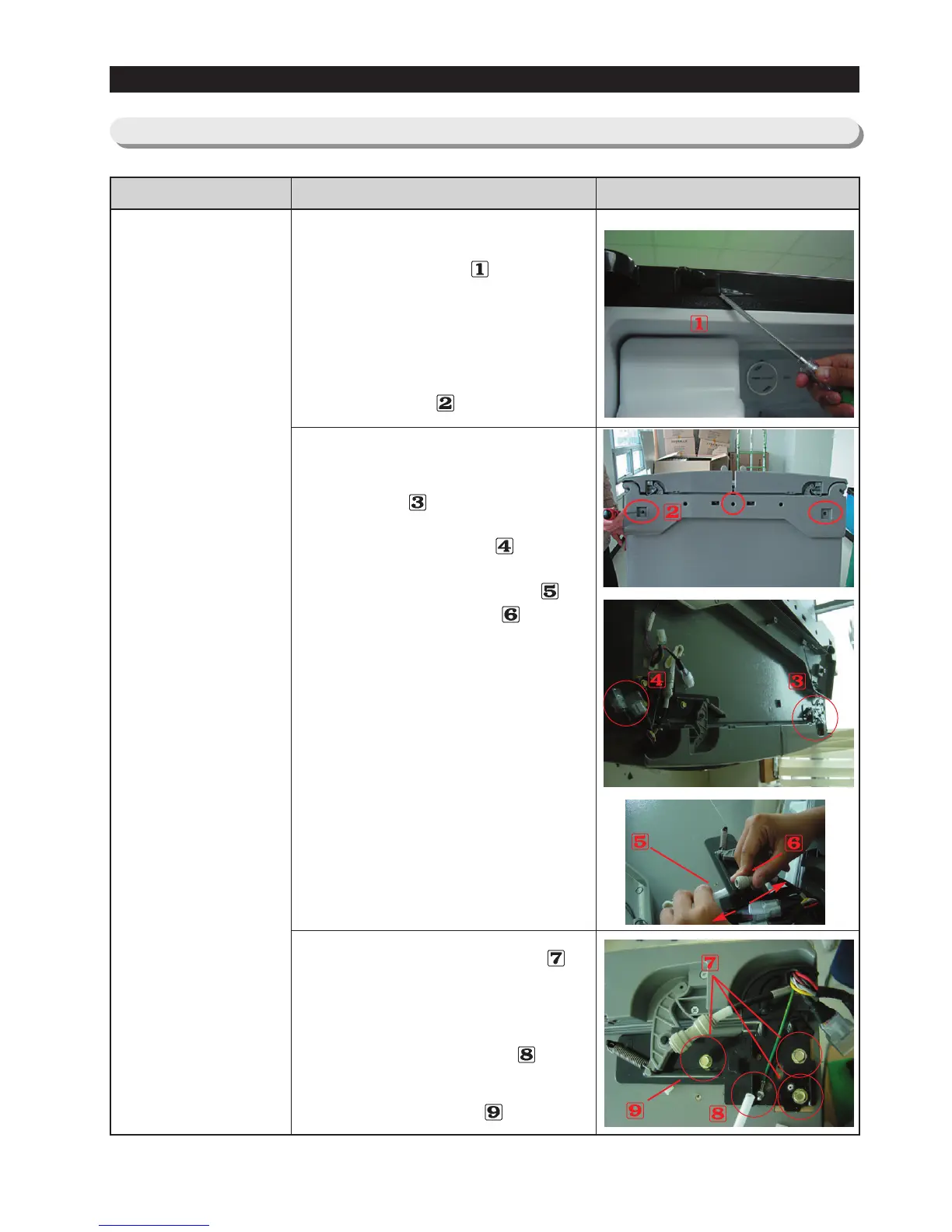

3-2) Refrigerator Door
DISASSEMBLY AND REASSEMBLY
Refrigerator
Door
Part Name How To Do Descriptive Picture
1. With the door opened, remove
the Top Table cap(
) with a Flat
head screwdriver, and close the
door.
2. Remove the 3 screw holding
down the Top Table and remove
the Top Table(
).
3. Disconnect the electrical
connector(
) above the upper
right door hinge and the 3
electrical connectors( ) above
the upper left door hinge.
Disconnect the water tube( ) by
pulling the tube fitting( ) apart
as shown in the picture.
4. Remove the 3 hex head bolts(
)
found attatched to the upper left
and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver,
remove the ground screw( ) found
attatched to the upper left and right
door hinges. Remove the upper left
and right door hinges( ).
To Next Page
