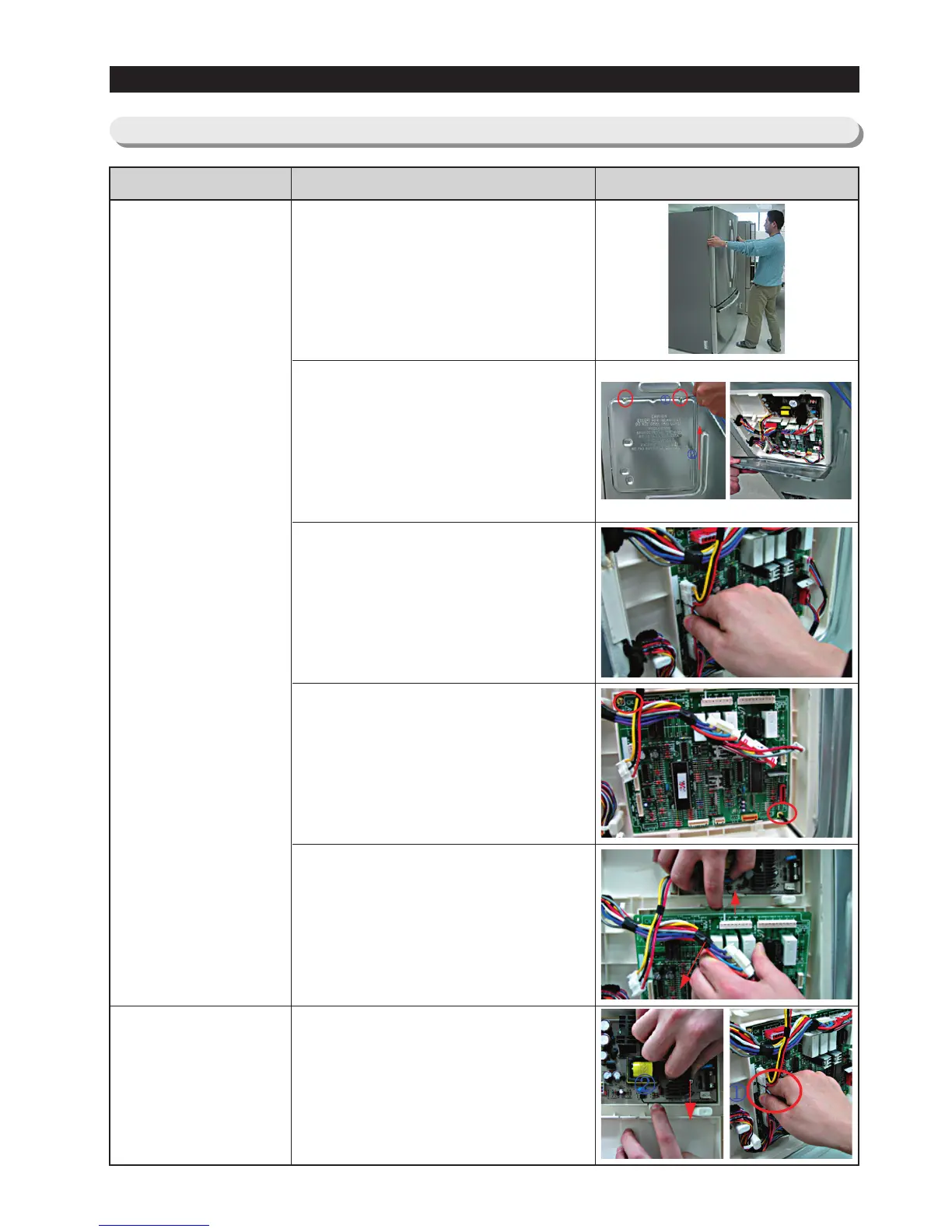

DISASSEMBLY AND REASSEMBLY
3-29) Electric Box
PBA Main
PBA SMPS
Part Name How To Do Descriptive Picture
1. Pull the refrigerator forward to
have enough space to work on
the rear side of the appliance.
2. Unscrew 2 screws for the PCB
cover.
3. Disengage all housing
connectors connected with main
PCB.
4. Unscrew 2 PCB fixed screws.
5. Remove the main PCB while
lifting the upper part of the hook
up.
(Refer to the picture)
1. Remove the cover PCB and
then disengage the housing
connector connected with main
PCB.
Remove the SMPS PCB while
pushing the lower part of the
hook down.
