3-13) Water Tank
DISASSEMBLY AND REASSEMBLY
Water Tank

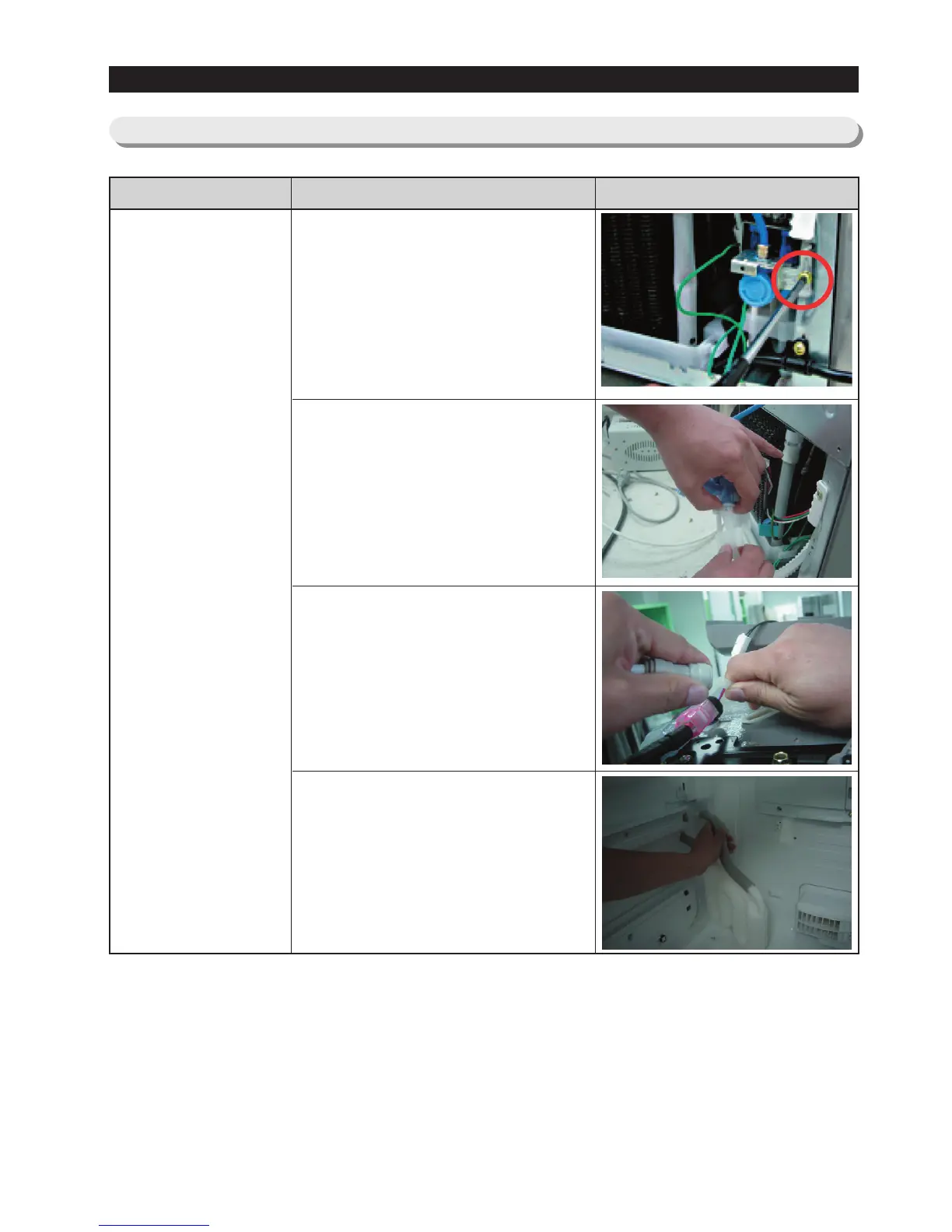

Part Name How To Do Descriptive Picture
One water Tube is located in the
machine compartment of the
refrigerator. Before disassembling
the Water Tube, take out the
compressor cover.
5. Remove the water valve fixed by
the screw.
6. Disconnect the water tube by
pushing the tube fitting apart as
shown in the picture.
The other Water Tube is located in
the Top Table of the refrigerator.
Before disassembling the Water
Tube, take out the Top table.
7. Disconnect the Water Tube by
pushing the tube fitting apart as
shown in the picture.
8. Remove the Water Tank by
pulling the Water Tube.
