TROUBLESHOOTING

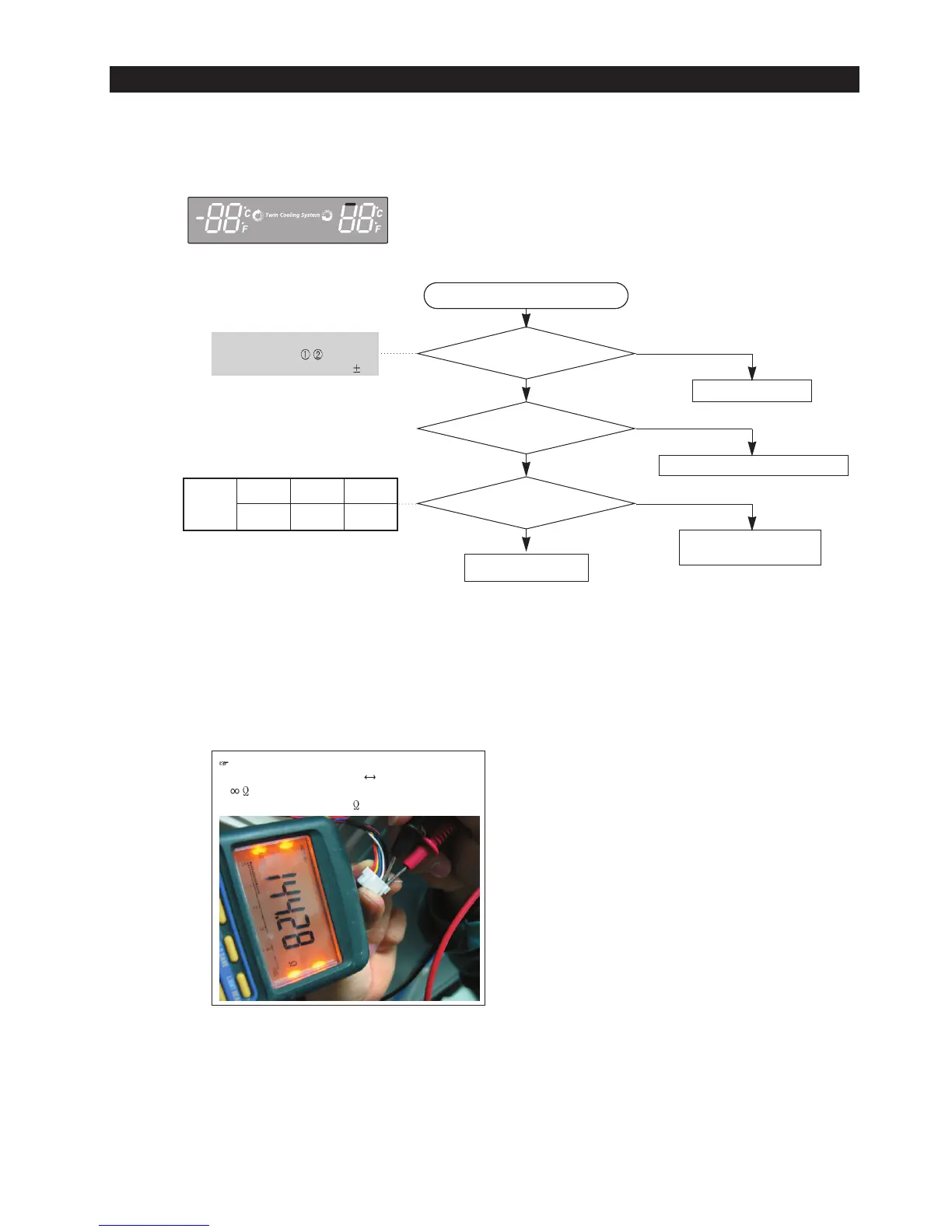

9) If Pantry Room Damper Heater has trouble
Replace Damper
Is Damper Heater
normal?(about145ohm)
Is MAIN PCB connector
(CN91) inserted correctly?
Is the input voltage of
IC02 MICOM #37 normal?
Start
NO
YES
YES
YES
Bad contact of connector/ insert correctly
NO
1) Recheck the wire
2) Replace PCB MAIN
NO
Normal(recheck)
Measure the resistance
between - after
CN90 connector open 145ohm 7%
ERROR Code
Checking method of Pantry Room Damper
resistance CN91#1(Black) #2(Brown)
** : Open(wire disconnection, heater
disconnection) trouble 0 : Short trouble
2¢(-19¡) is recommended 38¢(3¡) is recommended
Start
YES
YES
YES
Initial
power On
Damper
heater off
Damper
heater On
4.0V ~
4.5V
MICOM
#37
condition
4.0V ~
4.5V
0V
