4-1-11 Ass’y EVF removal
¨ REMOVE THE ASS'Y EVF IN THE DIRECTION OF ARROW "B".
ΠDISCONNECT THE LEAD CONNECTOR FROM
THE CN803 OF FUNCTION MENU PCB.
´ REMOVE 1 SCREW.
ˇ REMOVE 3 SCREWS.

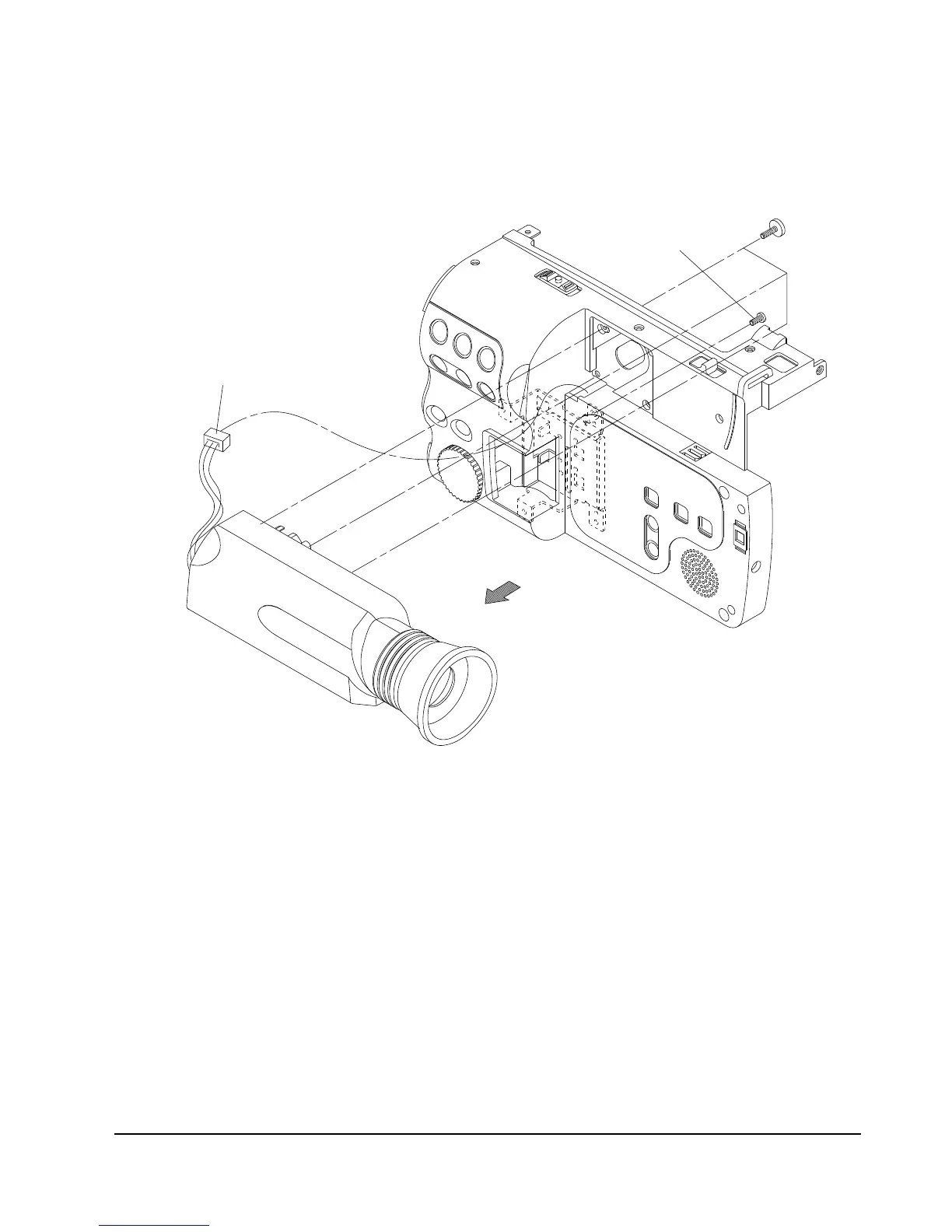

Fig. 4-11Ass’y EVF removal
