Disassembly and Reassembly
4-10 Samsung Electronics
4-1-10 Ass’y LCD removal
"A"
ΠREMOVE 5 SCREWS.
´ REMOVE THE ASS'Y LCD IN THE DIRECTION OF ARROW "A".

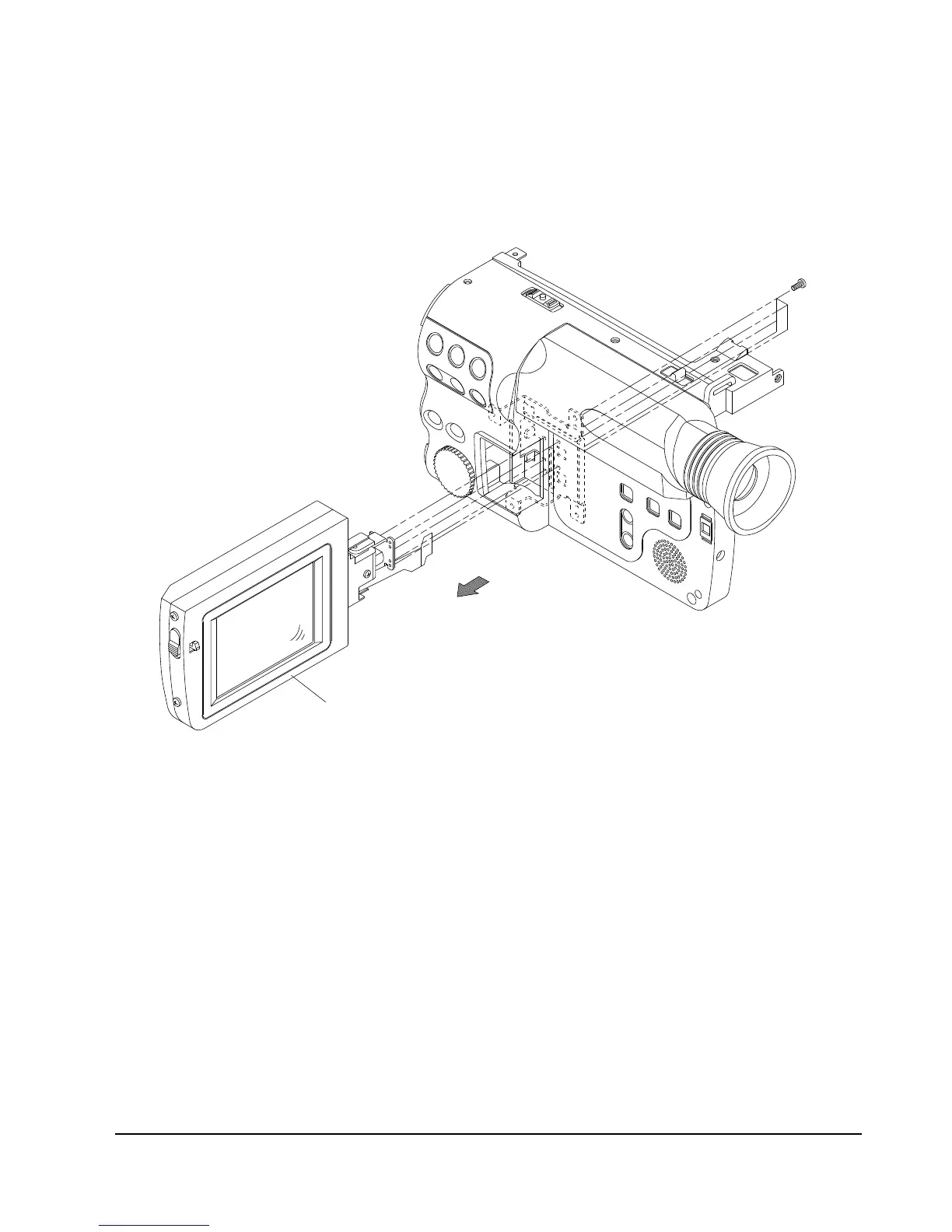

Fig. 4-10 Ass’y LCD removal
