Disassembly and Reassembly
Samsung Electronics 4-9
4-1-9 Ass’y Camera and Main PCB removal
CNC01
CNP01
ΠDESOLDER
ˇ DISCONNECT THE CNC01 FROM THE CNP01 OF MAIN PCB
AND THEN REMOVE THE ASS'Y CAMERA IN THE DIRECTION OF ARROW.
SOLDERING POINT
´ REMOVE 2 SCREWS.

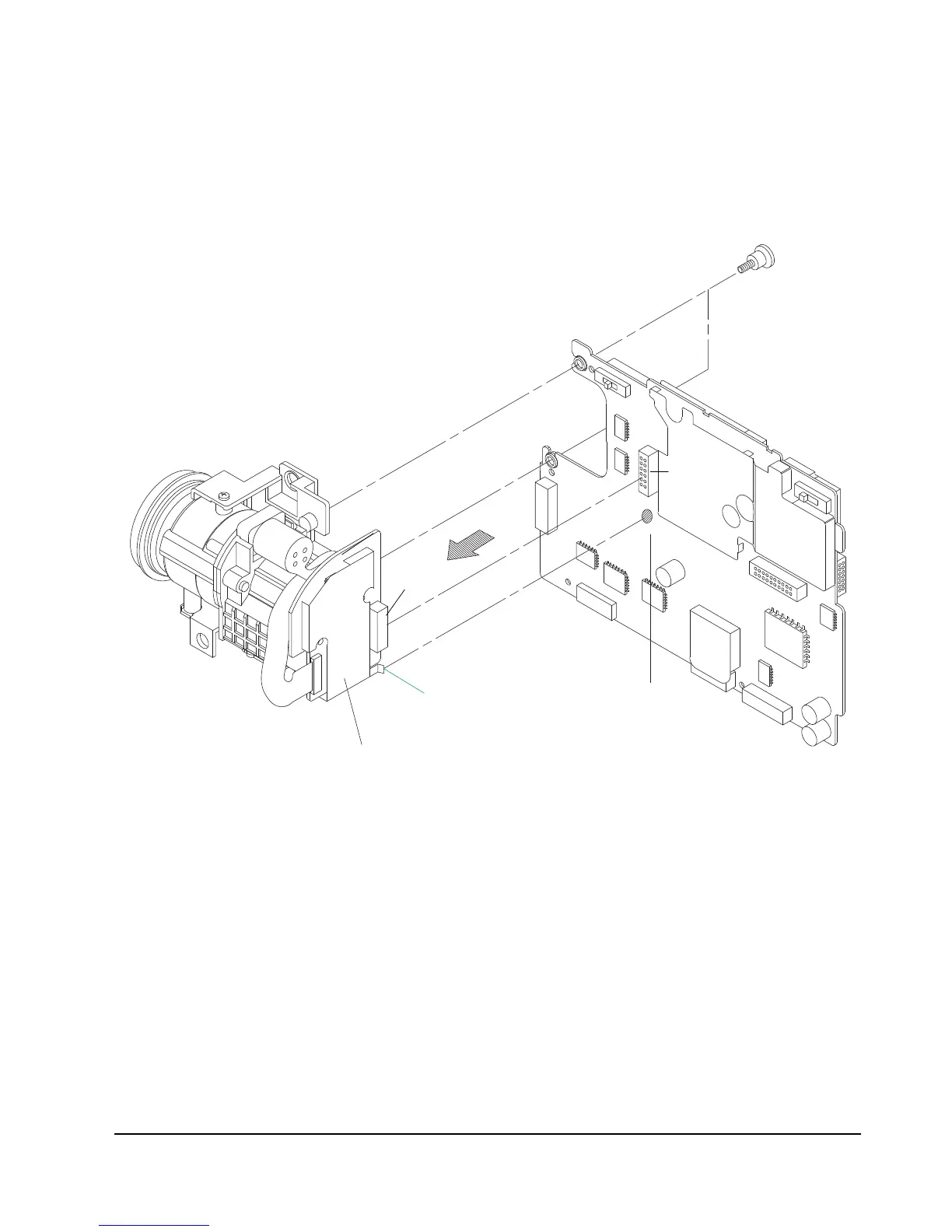

Fig. 4-9 Ass’y Camera and Main PCB removal
