Disassembly and Reassembly
4-8 Samsung Electronics
4-1-8 Ass’y-Deck removal
¨ REMOVE 1 SCREW.
ˇ REMOVE 2 SCREWS.
ˆ DISCONNECT THE FPC FROM THE ASS'Y DECK.
Ø DISCONNECT THE FPC FROM
THE CN501 OF MAIN PCB.
∏ REMOVE THE ASS'Y DECK IN THE DIRECTION OF ARROW .

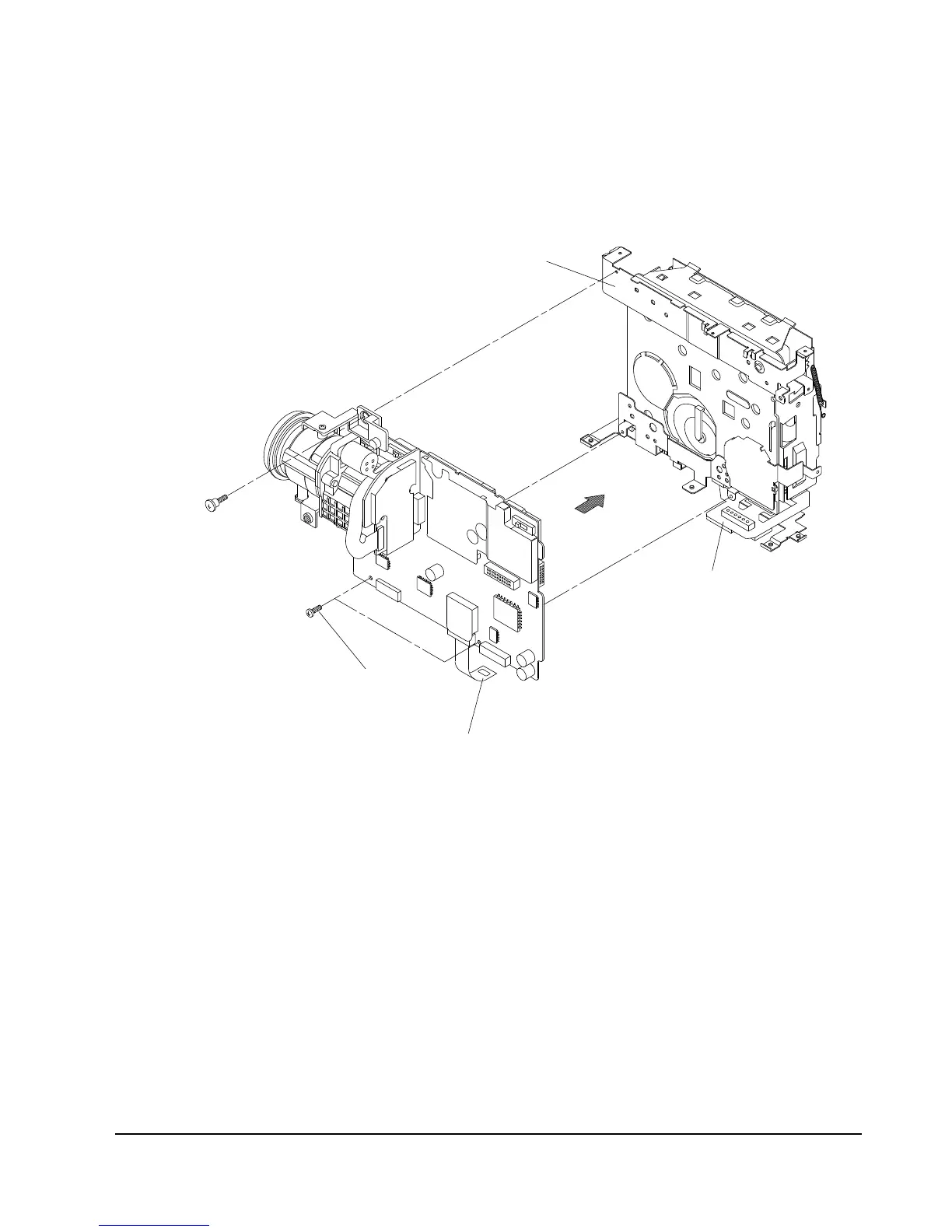

Fig. 4-8 Audio PCB and Ass’y-Deck removal
