Disassembly and Reassembly
Samsung Electronics 4-7
4-1-7 Ass’y Case-Bottom removal

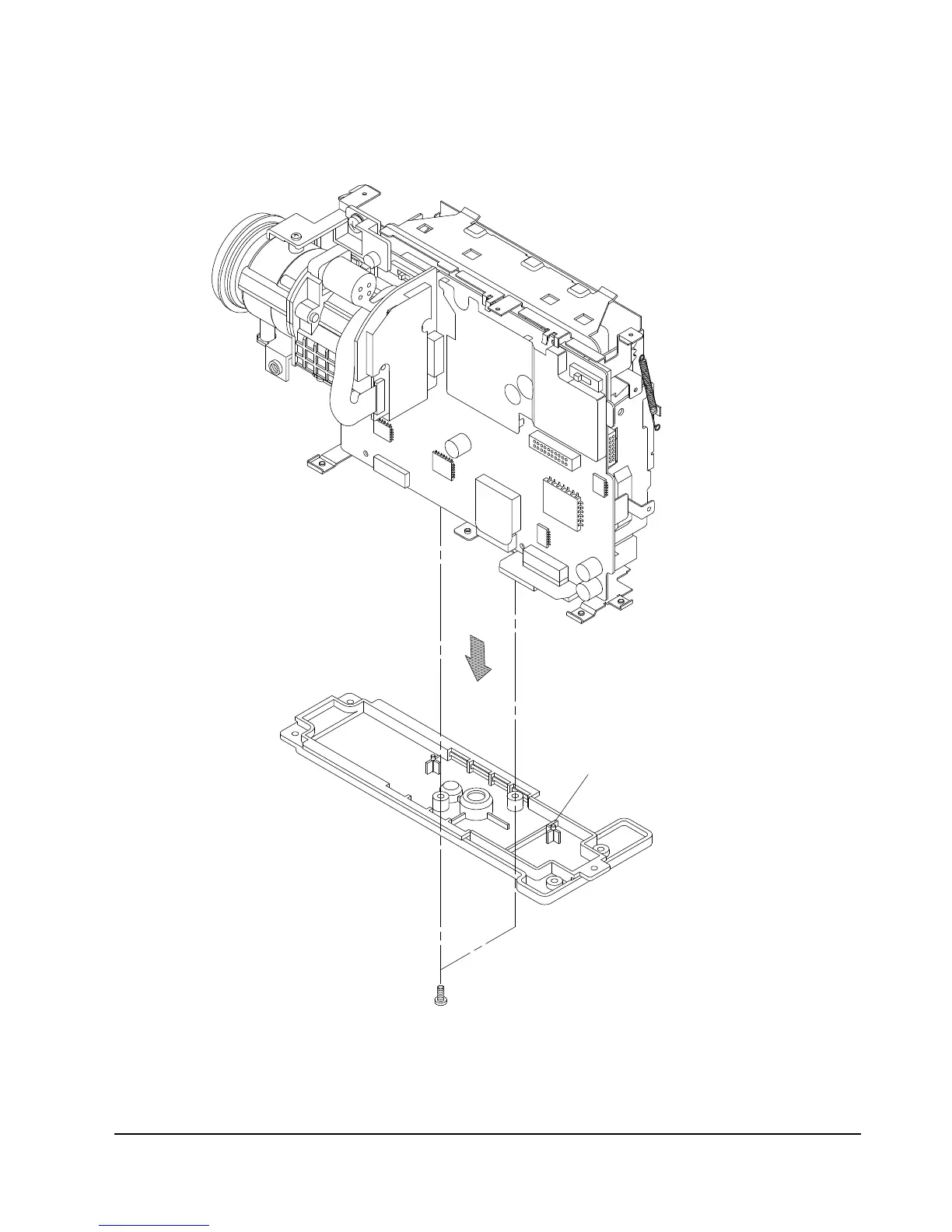

Fig. 4-7 Ass’y Case-Bottom removal
´ REMOVE THE CASE- BOTTOM
IN THE DIRECTION OF ARROW.
ΠREMOVE 2 SCREWS.
