Disassembly and Reassembly
4-6 Samsung Electronics
4-1-6 Ass’y Case-Battery removal
´ DISCONNECT THE CN961 OF THE REAR PCB FROM
THE CN501 OF MAIN PCB AND THEN REMOVE THE
ASS'Y CASE-BATTERY IN THE DIRECTION OF ARROW.
ΠREMOVE 1 SCREW.

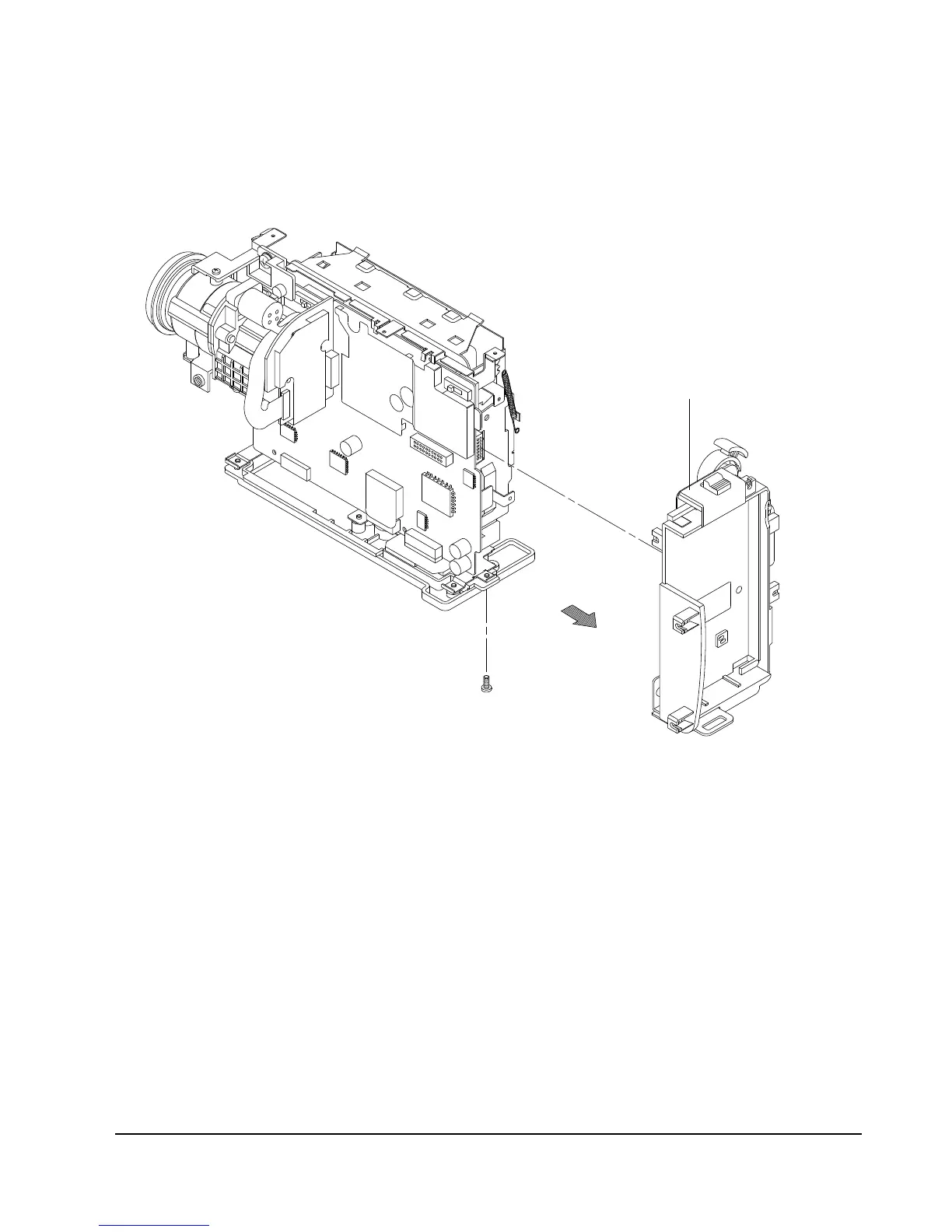

Fig. 4-6 Ass’y Case-Battery removal
