Disassembly and Reassembly
Samsung Electronics 4-5
4-1-5 Ass’y Case-Left removal
¨ REMOVE 2 SCREWS.
ˆ REMOVE THE ASS'Y CASE-LEFT IN THE DIRECTION OF ARROW.
∏ DISCONNECT THE CONNECTER FROM THE CN502 OF MAIN PCB.
ˇ REMOVE 1 SCREW.
´ REMOVE 3 SCREWS.
ΠREMOVE 1 SCREW.

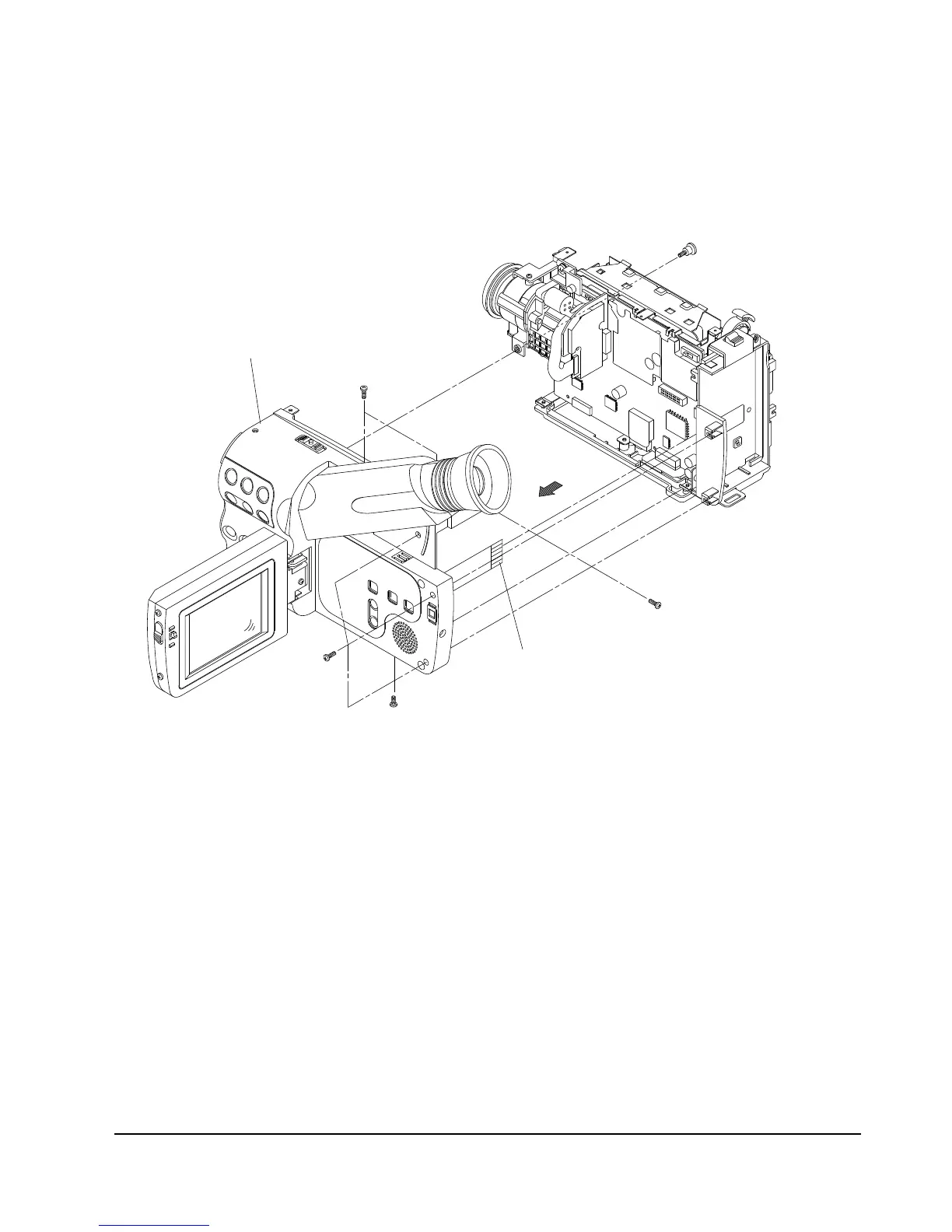

Fig. 4-5 Ass’y Case-Left removal
