4-1-4 Ass’y Case-Right removal
¨ REMOVE THE ASS'Y CASE-RIGHT IN THE DIRECTION OF ARROW "B".
ˇ SLIDE THE ZOOM SWITCH IN
THE DIRECTION OF ARROW "A".
ΠREMOVE 1 SCREW.
´ REMOVE 2 SCREWS.

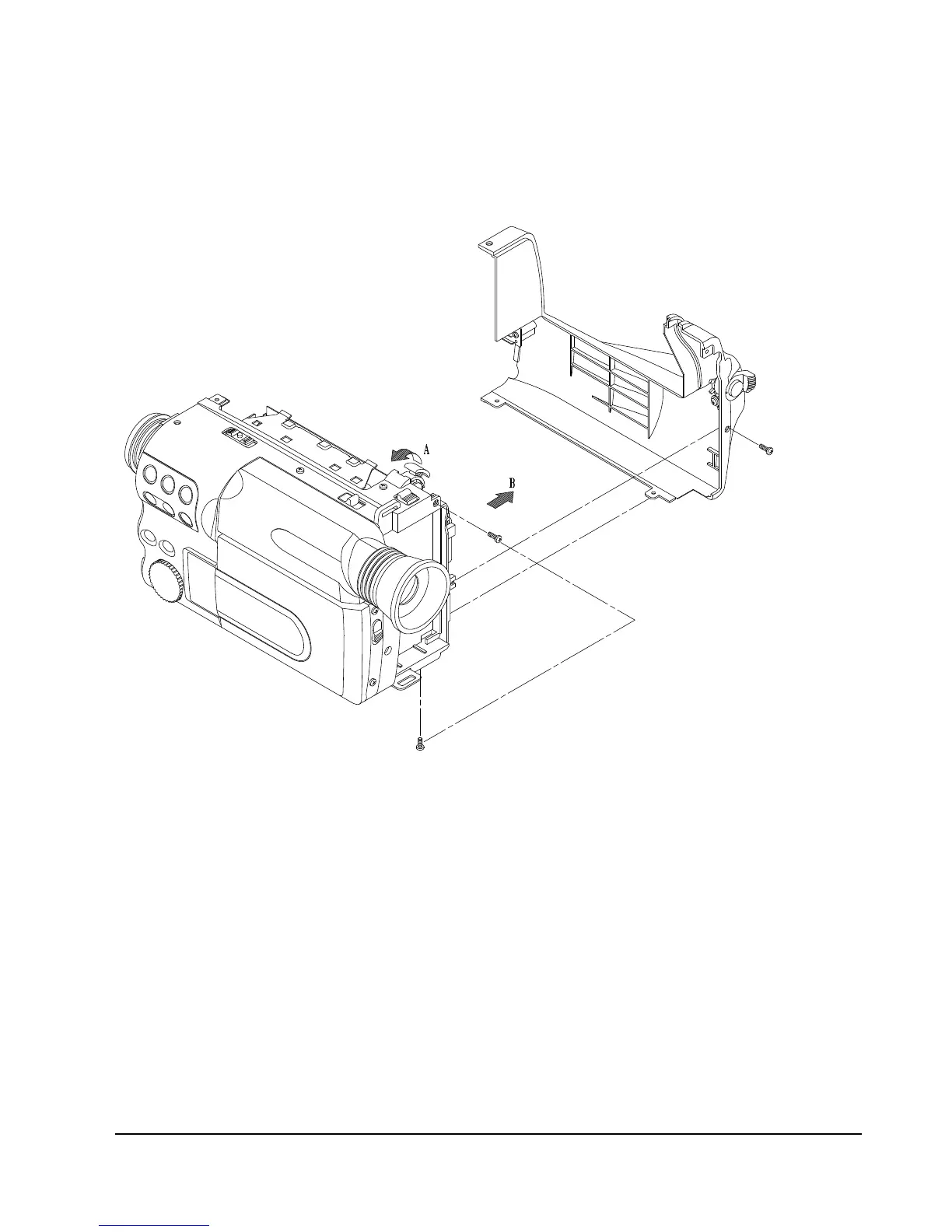

Fig. 4-4 Ass’y Case-Rignt removal
