4-1-3 Ass’y Front removal
ΠREMOVE 2 SCREWS.
´ REMOVE 2 SCREWS.
¨ REMOVE THE ASS'Y-FRONT IN THE DIRECTION OF ARROW.
ˆ DISCONNECT 2 CONNECTORS FROM THE
CN891,CN893 OF AUDIO PCB.
ˇ REMOVE 1 SCREW.

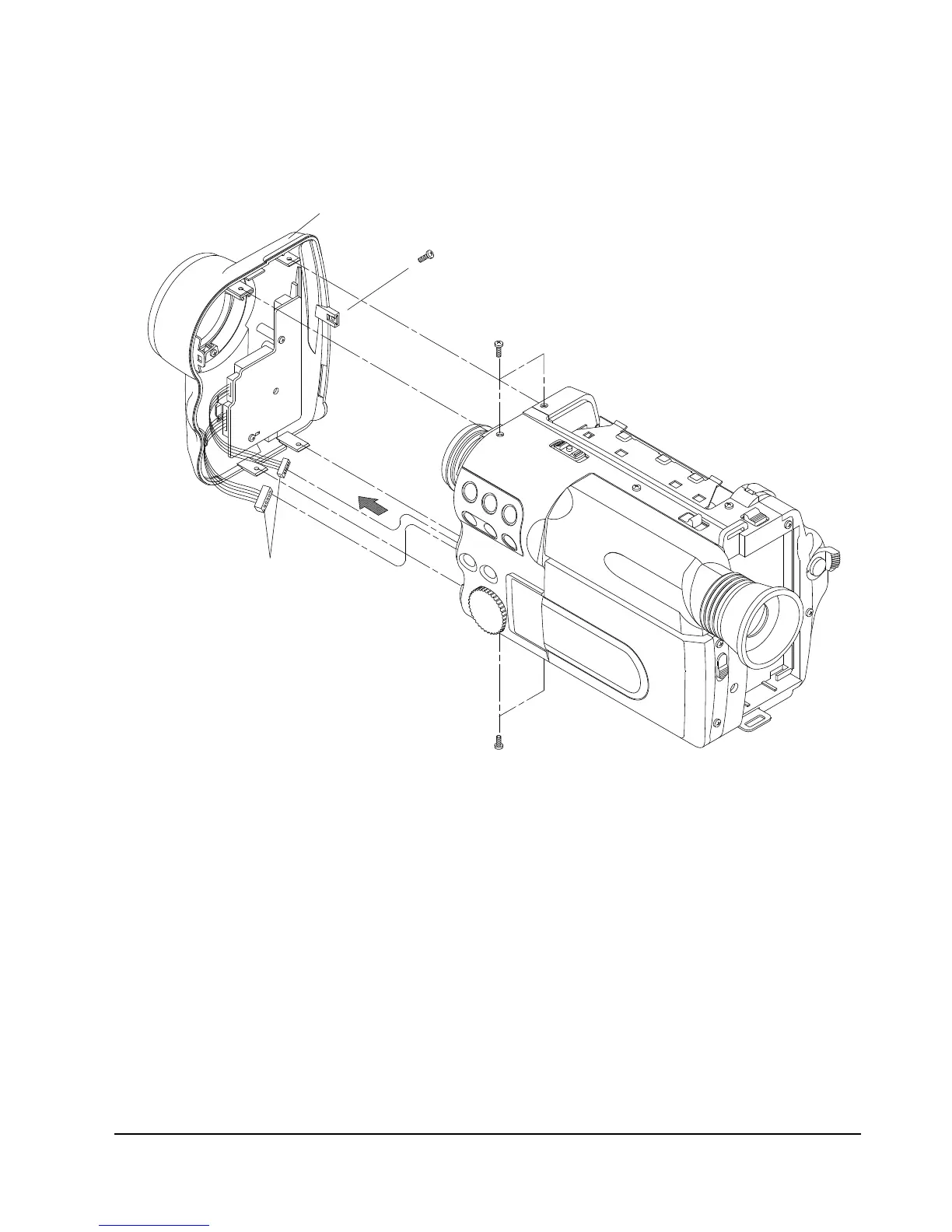

Fig. 4-3 Ass’y Front removal
