Disassembly and Reassembly
4-2 Samsung Electronics
4-1-2 Ass’y Case-Top removal
"B"
2 LOCKING TABS
PRECISION SCREW DRIVER
< DETAIL "A" >
< DETAIL "B" >
ΠREMOVE THE ASS'Y-CASE-TOP BY GENTLY RELEASING 2 LOCKING TABS
WITH A PRECISION SCREW DRIVER. (SEE DETAIL "A")
• NOTE : CLOSE THE HOUSING ASS'Y AFTER DISASSEMBLING.
• REASSEMBLY : PUT THE 7 TABS INTO THE SLOT WHILE
SLIDING IT AS SHOWN IN DETAIL "B".

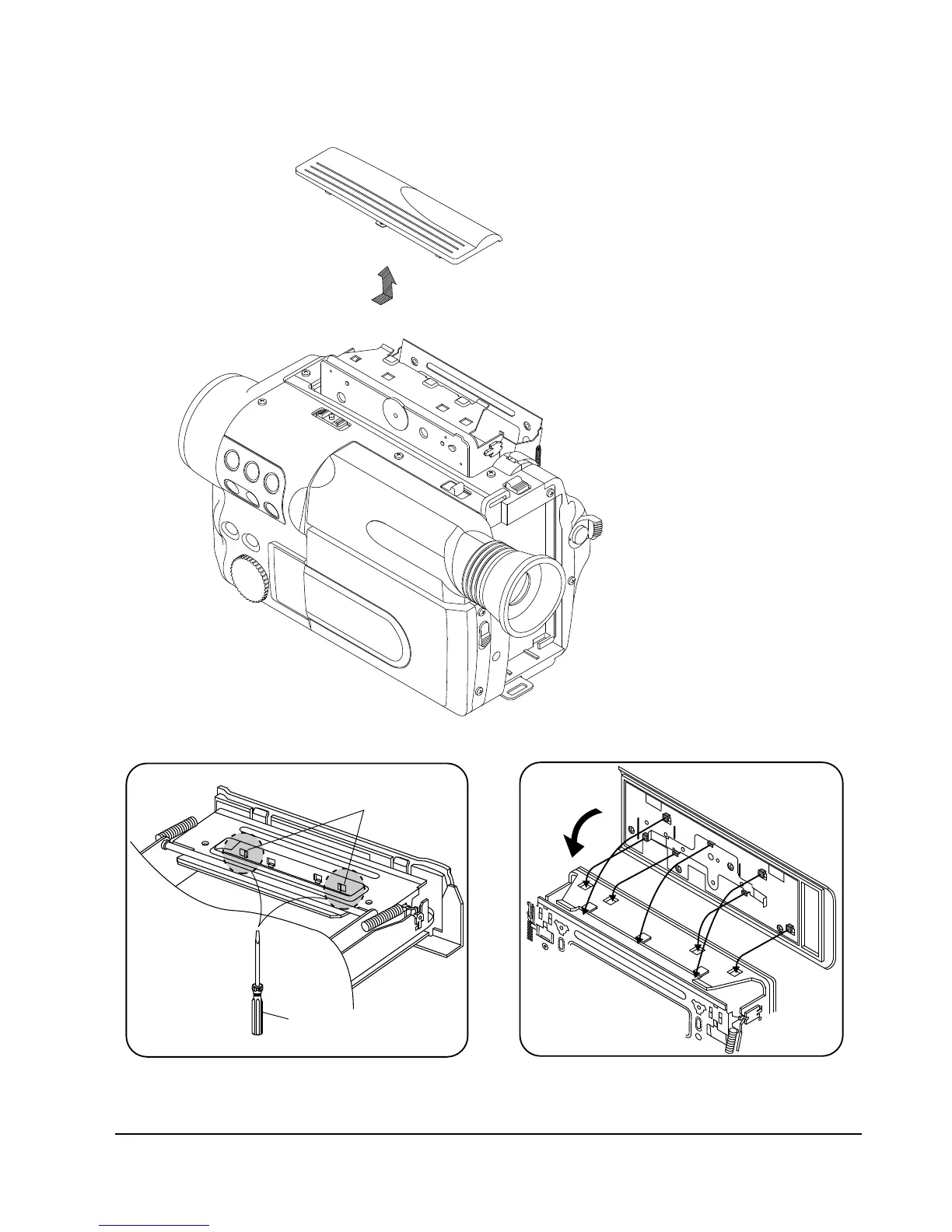

Fig. 4-2 Ass’y Case-Top removal
